GENERAL   EQUIPMENT   INC.

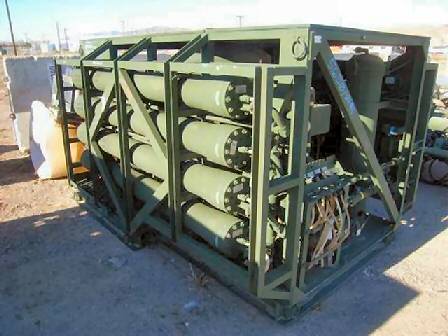

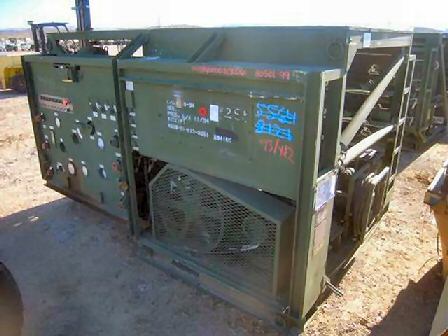

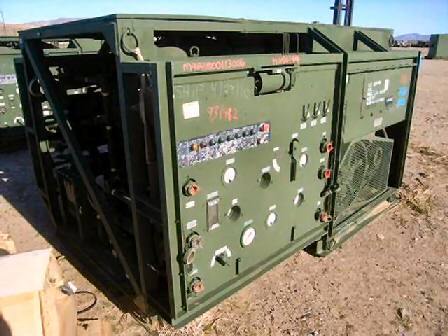

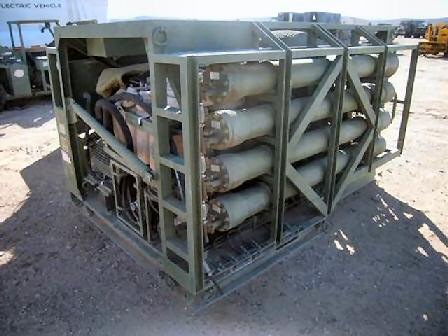

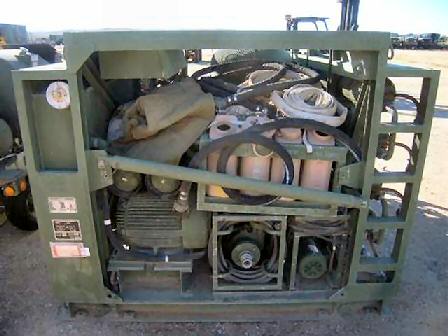

WATER PURIFICATION UNIT

REBUILT FOR THE US MILITARY AND UNUSED SINCE

UNIT COMES WITH 8 X MEMBRANE FILTERS & 1 X OPERATING MANUAL

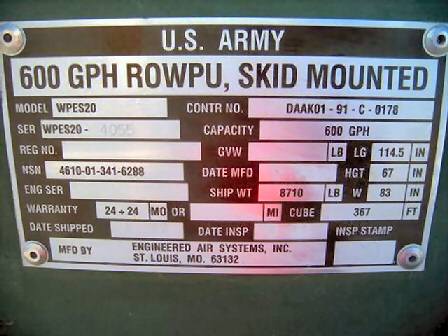

• MODEL: WPES20
• CAPACITY: 600 GPH (GALLONS / HOUR)
• SIZE: 114.5" L X 67" H X 83" W
• UNIT WT: 8,710 LBS
• POWER CONSUMPTION: 30 KW (UNIT DOES NOT COME WITH A GENERATOR)
• MANUFACTURER: ENGINEERED AIR SYSTEMS, INC
• COUNTRY OF ORIGIN: USA
• TYPE: SKID MOUNTED
• ORIGINAL USE: MOBILE WATER PURIFICATION UNIT TO SUPPLY DRINKING WATER TO MILITARY TROOPS and Civilian when needed

Clean Safe Drinking Water Systems with capacity of 100 ltr/hr for homes, or 2.500 ltr/hr systems for hotels, larger buildings, communities like villages, or regions, or larger systems for large cities with capacity of 100.000 M3/day or more.

We produced and delivered for Sarajevo a system with a capacity of 250.000 m3 clean Safe drinking water per day.

To give you the basic information of Drinking Water Systems we can provide:

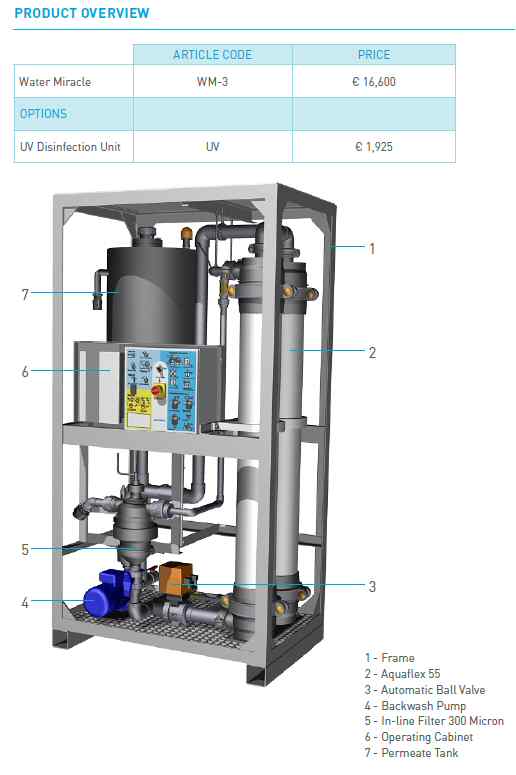

For Surface water filter system:

·         Capacity 2500 ltr/h.

·         Power 0,84 kW 230V/50Hz.

·         We can supply Diesel Generator for this system with capacity of 1.3 kW/50Hz.

·         Local installation possible, and very simple.

·         It works autonomously.

We can supply a Diesel Generator for this System.

Desalination Water Filter System for Brackish Water with salt range of 2.000 – 15.000 ppm:

·         Capacity 120 l/h

·         Operating Pressure max. 25 bar

·         Temperature max. 40°C

·         Power 0,84 kW 230V/50Hz

·         Measurements 1500x550x1200 mm

We can supply a Diesel Generator for this System.

Desalination Water Filter System for Sea water with salt range 15.000 – 50.000 ppm:

·         Capacity 100 l/h

·         Operating Pressure max. 25 bar

·         Temperature max. 40°C

·         Power 0,84 kW 230V/50Hz

·         Measurements 1500x550x1200 mm

We can supply a Diesel Generator for this System.

Fresh Clean SAFE Drinking Water.

We produce mobile filter systems for the Government and the UN to provide clean drinking water in places where it's needed, with a mobile systems that can produce 2.500 ltr per hour. You only need a connection to surface water like a river or a lake to place the hose in the water on one side, and the system cleans it filters it and you get fresh clean filtered Drinking Water. We did assist the UN in the cases of disasters like HAITI just after the earthquake, Indonesia just after the TSUNAMI, etc.

In the attached presentation you can see the filter systems which we also use in larger Drinking Water Filter Systems with capacity of more than 200.000 ltr/hr.

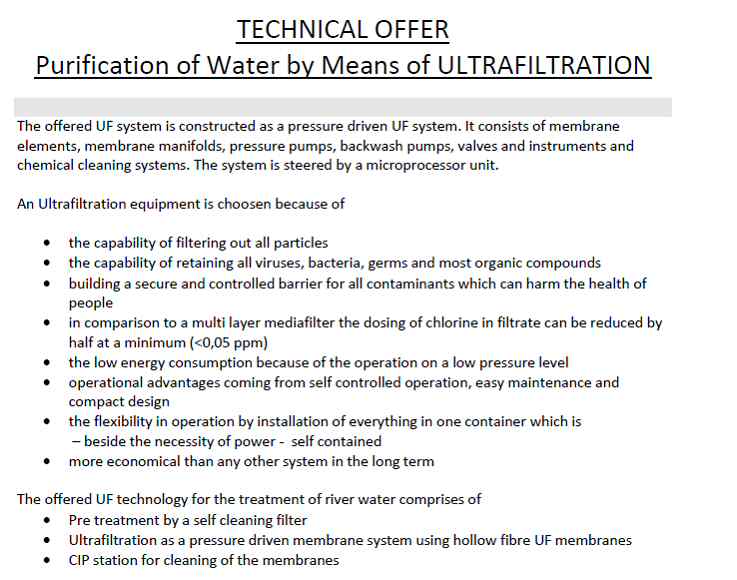

Hereby you receive the information about our Drinking Water Filter System with a capacity of 2.500 Ltr/hr. and a PowerPoint presentation of the filter system as attachment. This system is for surface water like lakes and rivers. We also have a system for Brakeage water and Sea Water.

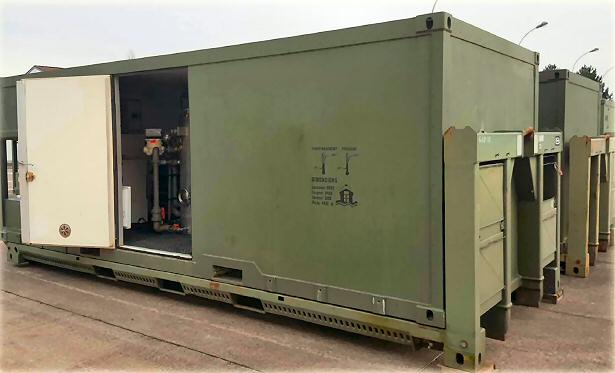

Experts in container based desalination systems

 Drinking water supply at hotels and resorts

 Decentral, public or private drinking water supply

 Vessels, offshore and petrol industry – drinking water and process water

 Food and beverage production - rinsing water and process water

Features:

 Practical container design for protection and ease of installation

 Minimum maintenance due to the application of positive displacement pumps and centrifugal pumps in high quality materials

 Flexible operation possible with easy connection/disconnection of pressure pumps

 Integrated CIP plant – ensures longer and more efficient operation of membranes

 Integrated pre treatment plant with easy filling system of filter medias

 Integrated mineralisation filter for drinking water supply

 Optional post treatment systems

Capacity range of 100 – 1,500 m3 per day

Integration of mineralisation filters for drinking water supply
