6# SGT 600

Inspection will prove everything,

Deposit and all funds are protected by escrow

Up to 6 SIEMENS Gas Turbine SGT 600

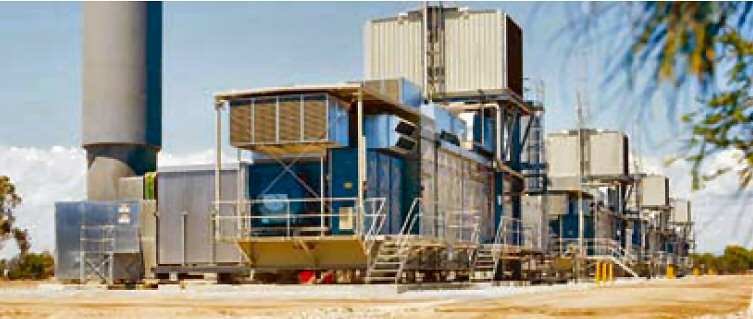

SGT- 600 NATURAL GAS TURBINE GENSET, HIGH PERFORMANCE UP TO 24.5 MW POWER OUTPUT, 50HZ/60HZ FREQUENCY, AND 11 kV VOLTAGE at 50HZ

ZERO HOURS UNIT YOM 2021,2022.

OPTIMAL FUEL FLEXIBILITY, LOW EMISSIONS, AND EXTENDED SERVICE INTERVALS SUITABLE FOR POWER GENERATION AND MECHANICAL DRIVE APPLICATIONS

OFFER

We can offer you the following program to achieve this project together.

Sign a NCNDA so that you can disclose the name of the end buyer

The end buyer send us a LOI with the details of the project along with a proof of funds

After negotiation, the owner will prepare the sales contract.

Our Offer Includes:

Supply of Siemens SGT600 turbines in accordance with your technical specifications.

Installation and commissioning assistance.

Personnel training on turbine operation and maintenance.

One year warranty on the installation and one year on spare parts

Commercial Terms:

Down payment of 25% of the total to be paid 5 calendar days after the day of inspection

Delivery Time: 3 weeks from site visit

Payment of remaining balance before shipping

Offer Validity: subject to prior sale

• Deposit on Order: 5% of the total order amount prior to inspection. Into escrow

OVERVIEW:

Scope of Supply & Additional Notes

SGT 600 Gas Turbine Generator Set, with integral Local Equipment Room:

Unit(s) to be supplied are unused, with zero running hours, never installed.

Gas Turbine Package:

Original year of assembly: 2021, 2022 SGT 600 Gas Turbine Core Engine Original assembly location: Europe

Never installed

AC Generator:

Original assembly location: SIEMENS Electrical Machines Original year of assembly: 2021, 2022

Package and core engine serial numbers will be confirmed upon placement of order. The units` supporting documentation is available for review at any time with prior notice

Scope of Supply:

Driven unit AC Generator 11 kV

3 phase

50 / 60 Hz

4 pole

0.8 power factor

Cylindrical pole brushless type Filter ventilated

Class F insulation with class F total temperature rise

Generator bearing temperature instrumentation Lubricating oil piping from gas turbine to driven unit

Gas Turbine Engine

SGT 600 Gas turbine engine ISO Rating 24,5 MWe two-stage uncooled variable free power turbine offers nominal shaft speed up-to 7,700 rpm

Gas generator

Air inlet casing

Compressor rotor

Compressor stator wit variable Guide Vanes (VGV)

Centre casing

Combustion system Dry Low Emissions (DLE) for dual fuels Compressor turbine rotor

Compressor turbine stator Power turbine

Hot gas interdict

Power Turbine rotor Power turbine stator Output shaft drive Exhaust outlet casing

Engine arranged for hot end drive

Engine bearing temperature and vibration instrumentation

Underbase

Underbase fabricated carbon steel construction, arranged for - multi point mounting Mounting assemblies for the gas turbine core, auxiliary gearbox, auxiliaries, and main gearbox

Driven unit separate underbase

Integral lubrication oil tank carbon steel

Quantity 6 units SGT 600 generator packages available Ready for shipment depending on site specific requirements Gas and Liquid fuel system included

DLE combustion system

Start System

Hydraulic motor and pump AC electric motor driven

Gears, Couplings and Guards

Gearbox seismic vibration instrumentation

Auxiliary gearbox incorporating drives to start system and lubricating oil pump Drive coupling high speed flexible element dry type turbine to gearbox

Drive coupling low speed flexible element dry type gearbox to AC generator Coupling guard high speed (carbon steel) turbine to gearbox

Coupling guard low speed (carbon steel) gearbox to driven unit

Lubricating Oil System

Integral mineral oil lubricating system serving the gas turbine, gearbox and driven unit Lubricating oil pump main gas turbine gearbox driven

Lubricating oil pump auxiliary AC motor driven Lubricating oil pump emergency DC motor driven

Lubricating oil system filter Duplex filter arrangement Continuous flow transfer valves

Conforms to API 614

Filter body carbon steel Differential pressure indicator

Temperature and Smart type pressure & level transmitters aluminum bodies Lubricating oil tank immersion heater

Lubricating oil system breather

Lubricating oil breather oil mist eliminator

Lubricating oil breather ducting austenitic stainless steel Lubricating oil system cooler

Airblast simplex lubricating oil cooler package roof mounted Cooler fan single (100% duty)

Suitable for a non - hazardous area

Lubricating oil cooler piping supply and return austenitic stainless steel

Gas Fuel System

Pilot fuel flow control system with actuator and integrated pressure transmitters Main fuel flow control system with actuator and integrated pressure transmitters Rapid acting gas shut off valves (2-off)

Temperature transmitter aluminum body

Gas fuel block and vent valve assembly off package

Acoustic Enclosure

Acoustic enclosure painted carbon steel, fitted over gas turbine, gearbox and auxiliaries Doors for personal access and maintenance

85 dB(A)

Integral lifting beam for maintenance

Integral lightning

Acoustic system transmitters Siemens standard smart type aluminum Excluded ground level enclosure access platforms and steps

Acoustic Enclosure Ventilation System

Ventilation air inlet filter pad type

Enclosure ventilation inlet and outlet dampers air operated Ventilation fan single AC electric driven Zone 2 Ventilation air system negative pressure

Ventilation air silencer

Ventilation air inlet and outlet ducting

Integral support for turbine enclosure ventilation system

Gas Detection System

Gas detection equipment comprising

2 I.R. point gas detectors (vent outlet)

Fire Protection System

Fire protection system comprising

2 I.R. multi spectrum flame detectors 2 Heat detectors

Single sounder / beacon (end of package) 1 Beacon (inside package)

Status indicator (end of package) 1 MAC (Manual Alarm Contact)

Fire Extinguishing

Fire shot CO 2 fire protection system in accordance with NFPA 12

Cylinders housed in a weatherproof cabinet Extinguisher system distribution pipework and nozzles Piping from cabinet to package

Combustion Air Inlet System

Combustion air filter simple static element painted carbon steel Combustion air filter weather hood

Combustion air filter mist eliminator Combustion air filter EPA filter stage

Combustion air silencer painted carbon steel Combustion air inlet ducting painted carbon steel

Integral support for combustion air inlet system

Maintenance access platform and ladder combustion air filter

Combustion Exhaust System

Exhaust diffuser ferritic stainless steel horizontal orientation

Exhaust silencer ferritic stainless steel hot section coated carbon steel outer casing Exhaust stack ferritic stainless steel floor standing vertical orientation 15 m height

(as per SIEMENS Energy standard design)

Thermal insulation and aluminium cladding personnel protection only

Package Electrical Systems

Integral Local Electrical Room (LER)

Designed to provide environmental protection for the SGT-600 package control panels and its operators.

Fully equipped with lighting, power and environmental controls consisting of:

400 V AC Package motors and heaters supply 230V 50Hz distribution board

Internal and external lighting

Industrial 230 V 50 Hz outlet

Air conditioning/heat pump unit capable of maintaining control room at 20 ° C in all ambient conditions

A baseplate designed to support the control panel shelter and internal tread plates which will attach to the end of the SGT-600 package driver unit baseplate to allow for a single point lift of the driver package

A single control panel cubicle with support frame

The combined control panel will consist of a battery charger, unit control panel for turbine and generator control and monitoring and motor control center.

Batteries VRLA type, sized to ensure a safe run-down of the turbine and driven unit in an emergency case

Package Auxiliaries

Turbine compressor mobile cleaning system 316 stainless steel tank on and off-line wash Drain tanks on package

Auxiliary module pressure & level transmitters Smart type aluminium bodies Instrument tagging row tags SIEMENS standard P&ID references

Package finish according to SIEMENS onshore standard

Control System

Package Control System Hardware

Control system mounted within integral LER

Unit Control System section simplex, incorporating a SIEMENS SIMATIC PLC platform Control and monitoring of the package systems

Standard start-stop and load control functions on-package control panel

HMI PC panel mounted

Operator display language English Machinery vibration monitoring

Ethernet TCP/IP communications data link to DCS Generator Control Panel section containing Automatic voltage regulator

Synchronizing facility automatic & manual with check synchronizer Generator metering equipment and electrical protection

SIEMENS Turbomachinery Applications Remote Monitoring System STA-RMSTM

STA-RMS allows improved support for engine operators

Required operation during warranty period and thereafter with Long Term Programs (LTP) service contracts SIEMENS common Remote Service Platform secure communication through Virtual Private Network (VPN)

via customer's internet service

STA-RMS primary functions:

Automatic transfer of engine operation data to Remote Diagnostic Center allowing: Routine monitoring

Predictive trending

Anomaly detection

Improved downtime prediction and scheduling Access to historic data

Fleet and unit performance reports

Remote access to the Human Machine interface allowing:

Direct operation of the Human Machine Interface by SIEMENS' support personnel Software updates during fault rectification helpdesk call

Faster troubleshooting and support

Testing Gas Turbine

Gas turbine core engine test SE standard the core has already been tested. Test data available

Driven Unit Test

Manufacturer's works acceptance test data of AC Generator. Pre-tested.

Installation and Maintenance Equipment

Roll-off equipment Gas turbine power turbine Roll-off trolley Gas Turbine core engine removal

Maintenance equipment Power turbine barring gear Core lifting equipment

Semi-gantry crane Auxiliary gearbox support

Installation tool kit comprising of a cabinet containing common hand tools Holding down fixings GT and driven unit package

Holding down fixings off-package equipment Selection of paints for site repairs

Drawings and Documentation

Standard set of certified information an approval drawings in English language

Existing drawings are to be reviewed and issued with relevant modifications or a project specific cover Operator manual English language CD only

Maintenance manual English language CD only

Driven unit manual English language CD only

Packing and Delivery Packing

Packing and preservation to suit destination and transport method

Delivery terms

Delivered FCA Europe in accordance with ICC INCOTERMS 2020 edition

Spares

Commissioning equipment and tools Commissioning spares

Quality Assurance

Contract QA Programme

Material Record Book (MRB) quality assurance and as built records English language

Subjects to prior sale errors and omissions excepted
