MI-171





TYPE:

Helicopter

DESCRIPTION:

New Mi-171

PRICE:

Upon Request

PACKING:

Ex-Works

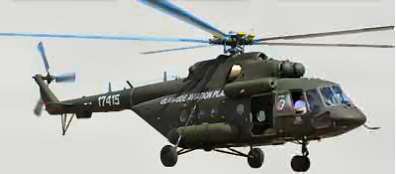

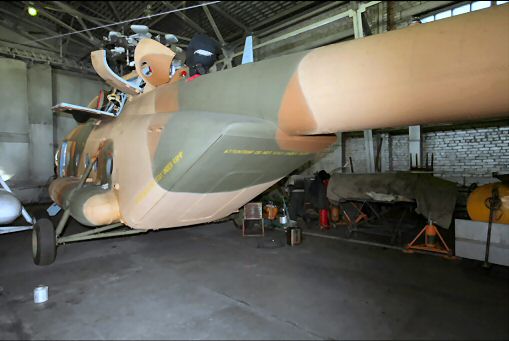

NEW 2015 MI-171

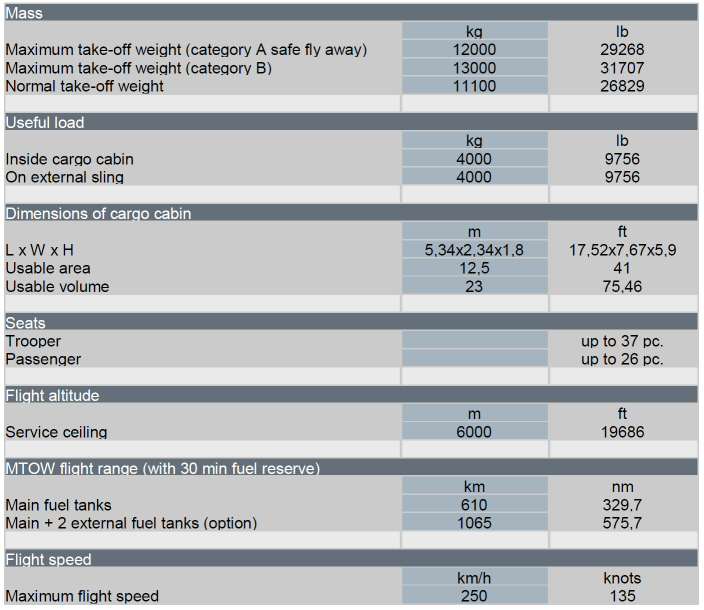

PERFORMANCE








MI-171E or S  HELICOPTERS   OFFER





We herby present you with our opportunity to sell your clients three new Mi-171E helicopters.



The Helicopters are in Transport version r with installed on it major vendor's items and set of equipment (1:1), specified below at list A.

As well as optional additional Items specified at list B.





According to the recommendation of General Designer the Buyer has the  right to change the mentioned quality of vendor items and aggregates are installed on the helicopters,  The changes happen without change of the cost of the helicopter.

Delivery time: the Helicopters are ready for inspection.







A . LIST OF MAJOR VENDOR ITEMS INSTALLED ON MI-171Е HELICOPTER






Тип изделия

Description



/TY

 1

Power plant and transmission

1.1

246-1517-000

Tail gear box

pc

1

1.2

8-1930-000 сер.02

Main rotor hub

pc

1

1.3

8-1950-000

Swash plate

pc

1

1.4

8A-1515-000

Intermediate gear box

pc

1

1.5

8A-1516-000

Tail rotor drive shaft

pc

1

1.6

8A-6311-00

Fan

pc

1

1.7

8A-6314-00

Fan drive cardan shaft

pc

1

1.8

8АМТ-1250-00

Vibration damper

pc

1

1.9

АИ-9В

Engine

pc

1

1.10

ВР-14

Main gear box

pc

1

1.11

РТ-12-6-2сер.

Temperature control

pc

2

1.12

TВ3-117ВM сер.02

Engine

pc

2

1.12.1

ЭРД-3ВМ-2с



pc

2



 2

 Fuel and oil equipment

2.1

11ТФ30СМ-0

Fuel filter

pc

1

2.2

463Б

 Electr. centrifugal pump

pc

1

2.3

5349T

Cooler block

pc

2

2.4

610200А

Solenoid valve

pc

1

2.5

766300A-1-T

Float valve

pc

1

2.6

768600МА

Fuel shut-off valve

pc

3

2.6.1

ЭПВ-150МТ 2сер.

electric actuator

pc

3

2.7

ЭЦН-91С

 Electric centrifugal pump

pc

2

 3.

Control and hydraulic system

3.1

246-3904-000 сер. 01

Tail rotor

pc

1

3.1.1

246-3925-00

tail rotor blade (3 pc), set

pc

1

3.2

8AT-2710-00

Main rotor blades (5 pc), set

pc

1

3.3

8Д2.966.017-2

Hydraulic filter

pc

2

3.4

ЭMT-2M

Solenoid brake

pc

3

3.5

ФГ11БН

Filter

pc

2

3.6

ГA-172-00-2/T

Lock-out valve

pc

1

3.7

ГА-192T

Solenoid valve

pc

6

3.8

ГА-59/1

Emergency power supply valve

pc

1

3.9

ГА-74M/5

Solenoid operated two-position valve

pc

2

3.10

ГА-77В

Pump relief valve, automatic

pc

2

3.11

КАУ-115АМ

Hydraulic booster

pc

4

3.12

МП-100М-2сер.

Electric actuator

pc

2

3.13

МСТ-25A

Pressure switch

pc

1

3.14

МСТ-30A

Pressure switch

pc

1

3.15

НШ39M

Gear pump

pc

2

3.16

ОК-10А

Check valve

pc

4

3.17

ПР-15,875-2300-1-67

Chain, 67 links

pc

1

3.18

РУ-2

Stick

pc

2

3.19

СПУУ-52

Tail rotor pitch limit system:

pc

1

3.19.1

БУ-32

control unit

pc

1

3.19.2

ДОС

feedback  transducer

pc

1

3.19.3

ИКД27Да-400-830

pressure indicator set

pc

1

3.19.4

П-1 (П-1Тр)

temperature bulb

pc

1



 4

 Airframe, landing gear and  pneumatic equipment

4.1

595х185 Модель 14

Tire of nose LG

pc

2

4.2

865х280 Модель 1А

Tire of main LG

pc

2

4.3

8A-4101-00Б-1

Main L.G. shock strut

pc

1

4.4

8A-4101-00Б-2

Main L.G. shock strut

pc

1

4.5

8A-4201-00A

Nose L.G.  shock strut

pc

1

4.6

АК-50T1 сер.3

Compressor

pc

1

4.7

В8БП-000

Heated windshield

pc

2

4.8

K2 116

Wheel 595x185

pc

2

4.9

KТ 97-310

Wheel 865х280

pc

2

4.10

KT97-220-1,-2

Brake of wheel

pc

2

4.11

УП25/2

Pressure reducing valve

pc

1

4.12

УПO3/2M

Pneumatic control unit

pc

1

4.13

В24-4301-100-7

Tail bumper shock strut

pc

1



 5

Fire extinguishing, anti-icing, heating and air conditioning equipment

5.1

1-4-4

Fire extinguisher:

pc

2

5.1.1

1-2-4-210

bottle

pc

2

5.1.2

ПГКц

valve fire extinguisher squib control head

pc

8

5.1.3

MA-250M

pressure gauge

pc

2

5.2

1919T

Control shutter

pc

2

5.2.1

ЭПВ-50БТ сер.2

electric actuator

pc

2

5.3

8АТ-7420

Tail rotor slip ring

pc

1

5.4

ДВ-302T

Electric fan

pc

3

5.5

ЭВ-0,7-1640

Electric fan

pc

4

5.6

ОР1-2,0-20-30

Fire extinguisher

pc

2

5.7

СО-121ВМ вар."A"

Ice detector

pc

1

5.8

ССП-ФK сер.2

Fire detection and warning system

pc

2

5.9

ТСВ36М313

Rotor slip ring

pc

1

 6

Electrical  and commutation equipment

6.1

АПД-78А

Auto unit for engine start

pc

1

6.2

АПД-9В

Start control panel

pc

1

6.3

АПШ-3М

Bus selector switch

pc

2

6.4

АЗП-А2

Circuit breaker

pc

1

6.5

Б3УНП355Г

Protection unit

pc

2

6.6

БЧФ-208

Phase-sequence unit

pc

1

6.7

БРН120Т5А-3С

Unit-regulator

pc

2

6.8

БСГО400А

Unit

pc

1

6.9

БТТ40БТ

Unit transformer

pc

2

6.10

ВУ-6Б

Rectifier

pc

2

6.11

ДМР-200Д

Deferential relay

pc

1

6.12

ДМР-200ВУ

Integrated device

pc

2

6.13

ЭПK-2T-60

Windshield wiper

pc

2

6.14

ГТ40ПЧ8В

Generator

pc

2

6.15

ПМК-21ТВ сер.3

Timer box

pc

1

6.16

ПТС-800БМ

3-phase static inverter

pc

1

6.17

РМ-355Г

Gimbal

pc

2

6.18

РН-120У

Voltage regulator

pc

1

6.19

С-1

Warning horn

pc

1

6.20

СНП-1

Power fail relay

pc

1

6.21

СПО-9

Static converter

pc

1

6.22

ТЭР-1М

Auto temperature control

pc

6

6.23

TН-115-7,5

Transformer

pc

1

6.24

TP-100/2

Transformer

pc

2

6.25

TP-115/36

Step down, transformer

pc

2

6.26

TС310С04Б

Transformer

pc

2

6.27

ТФ1-75.150/1А

Transformer

pc

2

6.28

ТФ1-25.50.100/1A

Transformer

pc

4

6.29

ШРАП-500К



pc

1

7

Lights equipment

7.1

ФПП-7М

Search / landing light

pc

2

7.1.1

ЛФЛ27-450-5

light

pc

2

7.2

МСЛ-3 2с

Beacon alarm lamp

pc

2

7.3

ПБС-1

Dome light

pc

6

7.4

СБК

Cabin light

pc

1

7.5

СМ-1Б

Light

pc

1

7.6

ОПС-57

Formation light

pc

3

7.7

ХС-62

Tail light

pc

1

7.8

БАНО-64

Forward navigation light

pc

2

7.9

ФР-100

Light

pc

2

7.10

П-39

Dome light

pc

8

7.11

СУ-2



pc

4

 8

Engines and gear box monitoring equipment

8.1

2ИА-6

Exhaust gas temperature indicating system, consists of:

pc

1

8.1.1

2УТ-6К

double temperature indicator

pc

1

8.1.2

2УЭ-6Б сер. 2

double electronic amplifier

pc

1

8.1.3

ПК-6

block

pc

2

8.2

Д-1М У2

Transmitter

pc

2

8.3

Д-2М У2

Transmitter

pc

2

8.4

ИВ-500Е сер.2

Vibration indicating system, consists of:

pc

1

8.4.1

УсС-6 сер.2

matching device

pc

2

8.4.2

МВ-03-1

piezoelectric transducer

pc

2

8.4.3

БЭ-9Е сер.2

electronic unit

pc

1

8.5

ИТЭ-1

Tachometer

pc

2

8.6

ИТЭ-2

Tachometer

pc

2

8.7

ИД-3

Inductive sensor

pc

1

8.8

ИМД-8

Induction pressure transmitter

pc

2

8.9

ИД-8

Induction pressure trans-mitter

pc

1

8.10

МСТВ-2,5С

Pressure switch heat resistant and shake proof

pc

1

8.11

П-77 вар.2

Temperature sensor

pc

1

8.12

САС-4-9

Warning and caution system, consists of:

pc

1

8.12.1

БАП-1

warning signal unit

pc

2

8.12.2

БУ-1

caution signal unit

pc

1

8.12.3

БК-7

switching unit

pc

1

8.13

ТСТ-282С

Thermometer

pc

1

8.14

ТУЭ-48

Elect. resistance thermometer in assy:

pc

1

8.14.1

П-1

temperature bulb

pc

1

8.15

УП-21-15

position indicator in assy:

pc

1

8.15.1

ДС-11

syncro control transmitter

pc

1

8.15.2

ИП-21-15

condition  indicator of airplane rotor elements

pc

1

8.16

УИ1-3К

Pressure indicator single-needle

pc

1

8.17

УИ3-3К

3-point indicator

pc

2

8.18

УИ3-6К

3-point indicator

pc

1





 9

 Fuel, hydraulic, pneumatic and electric systems monitoring equipment

9.1

A-2

Ammeter

pc

3

9.2

В-1

Voltmeter

pc

1

9.3

ВФ-0,4-150

Voltmeter

pc

1

9.4

ИД-100

Inductive pressure gauge

pc

2

9.5

МА-60

Pressure gauge

pc

1

9.6

MВУ-100K

Pressure gauge

pc

1

9.7

СД-29А

Pressure switch

pc

3

9.8

СКЭС-2027Б

Aviation electrical kerosene meter

pc

1

9.9

УИ1-100К

Pressure indicator (from  DIM-100 set)

pc

2

 10

10. Flight and navigation equipment

10.1

АЧС-1М или Revue Thommen B18-956.22.28.2.FR

Airborne clock

pc

1

10.2

АГБ-96Д

Gyro horizon

pc

2

10.3

AГБ-96Р

Gyro horizon

pc

1

10.4

АП-34Б  сер.2

Autopilot, consists of:

pc

1

10.4.1

6C2.390.007-3 сер.1

control panel

pc

1

10.4.2

6С2.399.000

control unit

pc

1

10.4.3

6С2.553-002

pitch, roll, yaw speed force-balance transducers

pc

2

10.4.4

БУНПП-В сер.1

flight-navigatuion instrument amplifiers block

pc

1

10.4.5

ДУС (1209 Г,Е,К)

rate gyro

pc

3

10.4.6

ИН-4

trim indicator

pc

1

10.4.7

КВ-11

altitude controller

pc

1

10.5

БФ-34 парт. А

Filter block

pc

1

10.6

БКК-18

Attitude monitor

pc

1

10.6.1

БКК-18

Gimbal

pc

1

10.7

БМП сер.2

Mechanical transition unit

pc

1

10.8

БС-34-1

Coupling unit

pc

1

10.9

БСГ

Operational status signal unit

pc

1

10.10

ВК-53Э-РВ сер. 5

Erecting cut-out switch

pc

1

10.11

ГМК-1ГЭ

Compass system, consists of:

pc

1

10.11.1

АС-1

synchronizer

pc

1

10.11.2

БС-1

coupling unit

pc

1

10.11.3

ГА-6

gyro unit

pc

2

10.11.4

ИД-3

sensor inductive

pc

1

10.11.5

КМ-8

compensator

pc

1

10.11.6

ПУ-27Э

control panel

pc

1

10.11.7

УГР-4-УК сер.3

indicator

pc

2

10.12

ИКД27Да-220-780

Pressure indicator set

pc

2

10.13

КИ-13КА

Liquid magnetic compass

pc

1

10.14

КЗСП

IAS controller

pc

1

10.15

ПВД-6M

Pitot-static tube

pc

2

10.16

УС-450К сер.2

Speed indicator

pc

2

10.17

ВАР-30МК  сер.4

Rate-of-climb indicator

pc

2

10.18

ВД-10К (ВK) сер.2

Altimeter

pc

2



 11

Вспомогательное оборудование

11.1

АДИС-2-2

Accelerometer

pc

1

11.2

АДИС-2-3

Accelerometer

pc

1

11.3

АЛМАЗ-УПМ

Voice information reporting system

pc

1

11.4

БУР-1-2 сер.2

Flight data recorder

pc

1

11.4.1

ПУ-25-1

control panel

pc

1

11.4.2

ЗБН-1-3 сер 3

protected recorder unit

pc

1

11.4.3

БСПИ-4-2 сер.2

flight data recorder

pc

1

11.4.4

РА-37К

gimbal

pc

1

11.5

ДПСМ-1

Transmitter

pc

1

11.6

ДВ-15МВ сер.2

Altitude transmitter

pc

1

11.7

ИР-117М

EPR indicator:

pc

1

11.7.1

ДВК

altitude transmitter

pc

1

11.8

М11А

Modulus

pc

2

11.9

МУ-615А сер.1

Angular displacement transmitter

pc

8

11.10

П-503Б

Voice recorder

pc

1

11.11

ТВ-19(T)

Thermometer, consists of:

pc

1

11.11.1

ТВ-1

electric thermometer indicator

pc

1

11.11.2

П-9(Т)

temperature bulb

pc

3

11.12

ТВ-45К

Thermometer

pc

1

11.13

ЭКСР-46

Flare pistol, consists of:

pc

2

11.13.1

7-К-991

cassette

pc

1

11.13.2

7-П-662к

control panel

pc

1

 12

12. Radio navigation equipment

12.1

А-037 исп.04

Radio altimeter

pc

1

12.2

АРК-15М вар.14

Automatic direction finder

pc

1

 13

Radio communication equipment

13.1

ОРЛАН-85СТ

Radio station

pc

1

13.2

СПУ-7 лит.119

Interphone system

pc

1

13.3

Прима-КВ

Radio station

pc

1




1. According to the recommendation of General Designer the Buyer has the   right to change the mentioned quality of vendor items and aggregates are installed on the helicopters,   The changes happen without change of the cost of the helicopter



B.   list of optional equipment mounted on Mi-171E helicopter

 Обозначение Designation

Наименование/ Description

1 pc

1

КО-50

Kerosene heater (overhead)

1 set

2

8АМТ-6101-7000

Self-sealing for external fuel tanks and expendable

1 set

3

8АМТ.9611.000.903

External load sling system with hydraulic weight indicator, guards, fixtures, and the 3rd headlight

1 set

4

ККО-ЛС2

oxygen equipment set with KM-32АГ mask

1 set

5



Cockpit and outer lights adaptation for night vision goggles

1 set

6



protection of the crew, expendable fuel tanks and flight control system components

1 set



7

Varta Ni-Cd

/ Varta Ni-Cd storage battery

1 set

8

ОРЛАН-85СТ

Radio Station (standby)

1 pc

9

8АТ-0388-100

Right enlarged door

1 set

10

171М.0700.0000.000

Electro hydraulic ramp with hatch (instead of clamshell doors)

1 set

11

ТУ-80АМТ-23

Troop seats (20 pc.)

1 set

12

298.9420.150CБ

Additional middle raw of troop seats, 10 pc

1 set

13

8АМТ.9626.1000СБ

Portside cargo jib with СЛГ-300 hoist

1 set

14



Rescue equipment  for СЛГ-300

1 set

15

8АМТ-6840-00-01/02

Exhaust-heat suppressors

1 set

16

СПУ-7

Interphone system

1 pс

17

8АМТ-6102-550

Starboard external fuel tank of enhanced capacity (unstead of standart)

1pc

18

8АМТ-0325-000

Short cable for rappeling through the portside sliding door

1pc

19

8АМТ-0327-001

Long cable for rappeling through the starboard sliding door

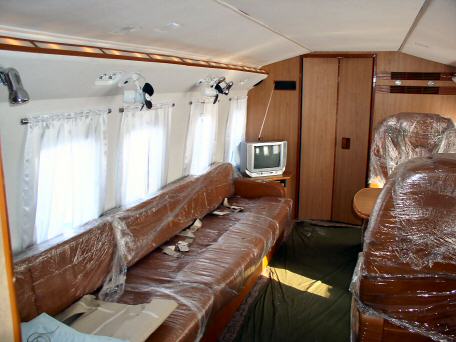

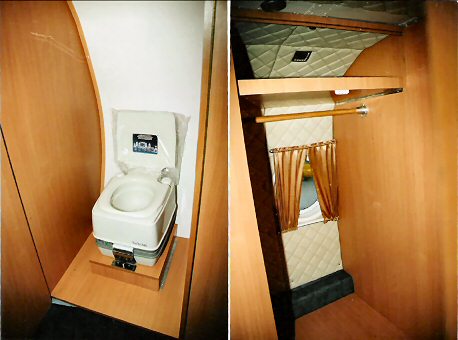

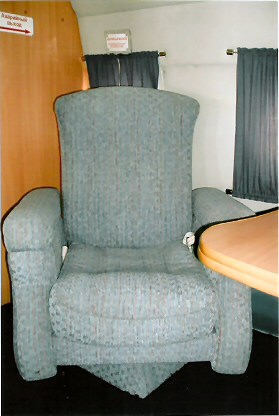

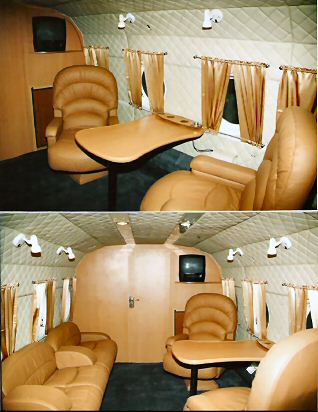

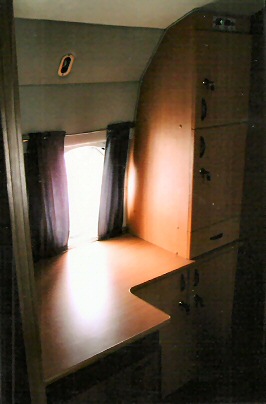

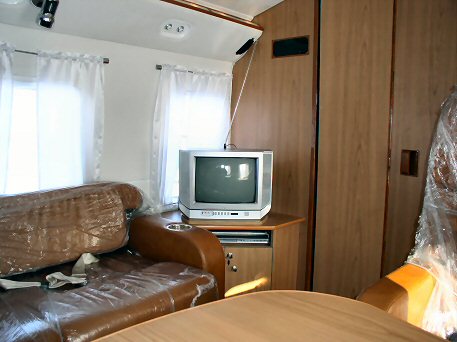

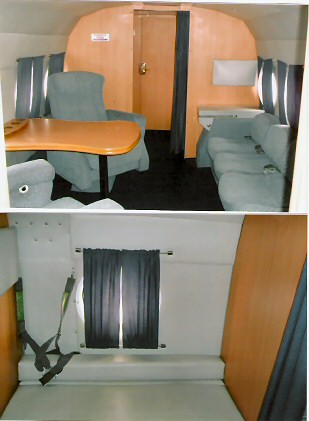

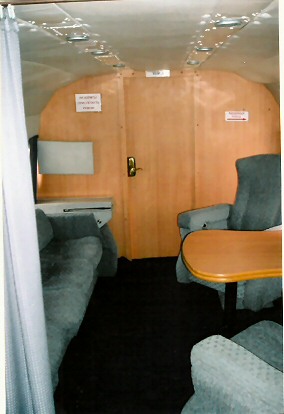

RE-EQUIPMENT VIP














Specification and photos are not contractual and are subject to verification upon inspection





NB: Aircraft offered for sale subject to contract, prior sale, withdrawal from the market and information regarding any aircraft or helicopter and provided verbally or in written documentation and/or contained within this e.mail or associated paper-work should be taken as a guide only in determining the suitability, including that aircraft or helicopters specification and/or performance.  We highly recommend that any buyer or lessee perform their own inspections and due diligence to verify any and all technical, performance and specification information contained therein including OEM claims.



PLEASE NOTE: AIRCRAFT SPECIFICATIONS SUBJECT TO VERIFICATION UPON INSPECTION. WE DO NOT ACCEPT ANY LIABILITY FOR AIRCRAFT DEFECTS, HISTORY OR TECHNICAL RECORD ERRORS. IT IS THE BUYERS RESPONSIBILITY TO INDEPENDENTLY VERIFY THE AIRCRAFT AND COMPONENT HISTORY.







TAKE NOTICE!



PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.



This paper was prepared by General Equipment Inc.
The paper represents an offer of a partner of General Equipment Inc.
All rights are reserved by and for General Equipment Inc.
All content and ideas of this paper are the property of General Equipment Inc.












Defense items are subject to final destination approval and granting of an

export license issued by exporting country's authorities
