GENERAL   EQUIPMENT   INC.



8724 Sunset Drive #191Miami FL 33173 USA


Email:
info@generalequipment.infowww.generalequipment.info








CATERPILLAR 3516C





TYPE:

Generator

DESCRIPTION:

New Caterpillar 3516C  2000 Kva

PRICE:

Upon Request

PACKING:

As per sheet below

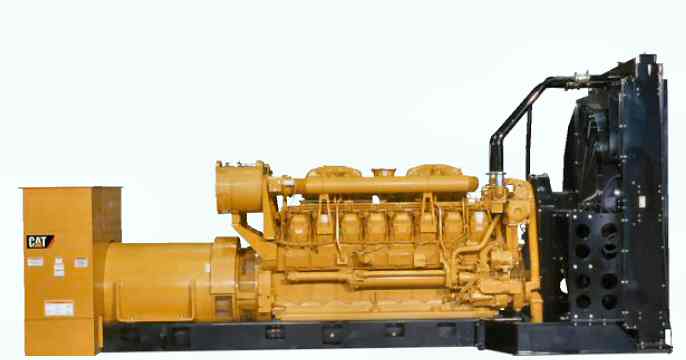

NEW caterpillar 3516c generator 2000 Kva



















Item Number:  7561
Year:  2007
Manufacturer:  Caterpillar
Fuel Type:  Diesel
Model:  3516C
Serial Number:  SBJ Prefix
KW:  2000
Hz:  60
Voltage:  480
RPM:  1800
Hours:  0  Since New


More Information:  New Surplus Caterpillar 3516C Industrial Generator. Rated at 2000kw standby, 60hz, 1800rpm, 480v. Tier 2, jacket water heater, 24v system, electric starting motor, batteries, EMCP 3.3 control panel, UL2200 listed package, engine mounted radiator. Arr# 266-6137. Test hours only. Unit comes with 1 year warranty.









2 CATERPILLAR, SR4B HV HIGH VOLTAGE GENERATORS.



Owner sign contract last month to purchase this 4MW Caterpillar Power Plant in  Mexico.  Each diesel generator is 2MW each and only has 20 operating hours on each unit.


(2) CATERPILLAR, SR4B HV HIGH VOLTAGE GENERATORS. (NEW)

Hours: 20.

Capacity: 2 MW Nominal Tension each;

13,200 V; 3,370 kW; Yr. 2006.


Main Diesel Storage Tank, Capacity 30,000 l,

Inlet Storage Diesel Tank, 5,000 l, for Uninterrupted 35 Hr.


 Power Generation.

Emergency, Synchronicity and Power Control System.

High Voltage Cable, 40 m Approx.

(4) Battery Banks.

Data Recording System.

Dry Electric Transformer, 75 Kva, 13,200 Kva - 220 Kva

Fire Fighting System Module Plug.

Noise Reduction Cabinet for 80 dB at 1m, 15 x 15 mts.










THE FOLLOWING D.G. SETS ARE AVAILABLE FOR SALE WITH IMMEDIATE DELIVERY :

2 Nos. 2000 kVA each, CATERPILLAR (2005) make Diesel Generator Sets,
having the following technical specifications :




ENGINE DETAILS :
Make :                     CATERPILLAR
Model :                    3516 D1
Year of make :       2005
Capacity :               2000 kVA
Hours clocked :    1520 Hrs. and 3781 Hrs.
No.of machines:   2
Cooling :                 Heat Exchanger cooled

ALTERNATOR DETAILS :
Make :                     CATERPILLAR
Model :                    SR 4
Speed :                   1500 RPM
Voltage :                 415 V
Power Factor :      0.8
Frequency :          50 Hz
No.of phase :       3
No. of poles :       4
Weight :                 15000 Kgs.

Scope of Supply for each Generator:
Complete Engine & Alternator mounted on common baseframe.
Engine Control Panel.
Note : The Generator Sets are in excellent condition & can be inspected



Rebuild Gen Sets Flyer_customers_r1_HR.html

Specification and photos are not contractual and are subject to verification upon inspection
