BMP-1





TYPE:

APC

DESCRIPTION:

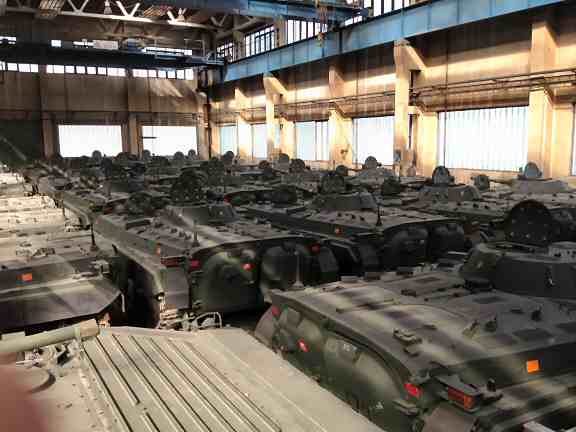

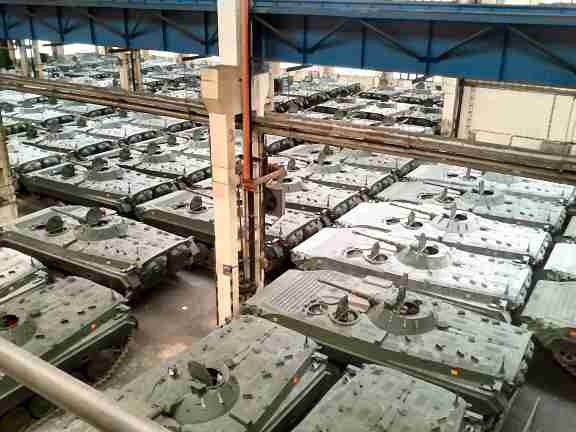

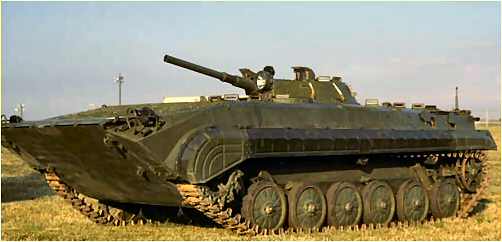

Armored Personnel Carrier BMP-1

PRICE:

Upon Request

PACKING:

As is, Where is





armored personnel carrier bmp-1


Subject unsold or market withdrawal










HYBRID IFV Khorunzhiy


on base IFV BMP-1







Specifications



Weight

13 tons

Crew

3

soldgers

8

Length

6.74m

Width

2.94m

Height

2.07m

Base

3.66m

Rut

2.55m

Clearance

0.37m

Maximum Speed

80km/h

Fuel Capacity

462 litre

Operational Range

1000km

Obstacle



Ascent

35⁰

Wall

0.7m

Trench

2.5m

Ford

1.6m

Engine

Cummins ISF2.8s4161P

Cylinders

L4

Fuel

Diesel

Horsepower

161hp (120kW)

Suspension

Individual torsion with hydraulic shock absorbers



Drive travell about

Concept on base armored vehicles Krimsk was turned into a conventional vehicle electric drive technology demonstrator  in Russian vehicle was fitted with a power supply control system feeding eight electric motor units and a two-phase pneumatic gearbox.

Drive line

Electrical

Alternator (power)

240kW

Wheel drive (power)

2x60kW

Max toque

10,000Nm

Special features

Internal / External power supply

220V AC 50Hz / 380V AC 50Hz

Skid steer Function

Pivot neutral steer function



Electric motor







Special controllers

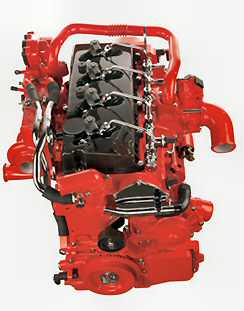

Cummins ISF2.8s4161P







General of ISF2.8s4161P Diesel Engine for Vehicle

Engine Model

ISF2.8s4161P

Bore*Stroke

94*100mm

Type

4 cylinder in-line

Displacement

2.776L

Net Weight

214KG

Engine Type

Bosch high pressure common rai, High-pressure fuel injection

Size

606*641*632mm

Technical Specification of ISF2.8s4161P Diesel Engine for Vehicle

Max Output

120KW

Horsepower

161HP

Torque

360N.m

Certification

Euro/China IV

Aspiration

Turbocharged/Aftercooled

Peak Torque/ Speed (N.m/r/min)

1800-3000

No-load highest speed(r/min)

4750

Idling Speed(r/min)

750

Compression Ratio

16.5:1

Rated Speed

3600RPM

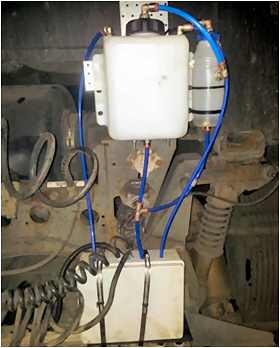

Conversions KIT water in fuel for diesel engines CUMMINS FULL SET


FULL SET!

- COMPLETE WITH DIGITAL PWM and MAF / MAP proofreaders;

- High-end electronics included in the package;

- The union of stainless steel;

- Generator type "dry cell" of the latest generation ;

- Very small dimensions: 240x190x90mm;

- Impressive Square production of hydrogen gas: 2268 cm2;

- Large volume production of hydrogen 3.5 liters per minute (15A);

- Suitable for all models of trucks and buses, the engine power to 480hp.

- Weight 8.2 KG









High-pressure power system







Alternator

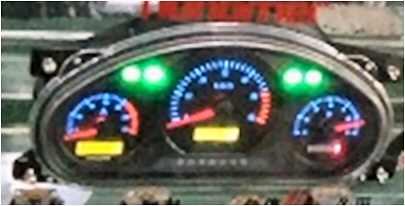

Speedometer Dash Board









Armouring



Hull Front top

7mm/80

Hull Front bottom

19mm/57

Side Hull top

16mm/14

Side Hull bottom

18mm/0

Rear Hull top

16mm/19

Bottom Hull

6mm

Roof Hull

6mm

Front Turret

23mm/42

Mask cannon

26-33

Side Turret

19mm/36

Rear Turret

13mm/30

Roof Turret

6mm







Armament



73mm cannon

12.7x108mm or 50BMG anti-aircraft machine gun

14.5x114mm anti-aircraft machine gun

or 20x110mm automatic cannon

or 23x115mm automatic cannon

40 projectiles

600rds

500rds

500 projectiles

500 projectiles

7.62x54R or 7.62x51mm Coaxial machine gun

2000rds

Anti-tank missiles AT-3

4 un











Specification and photos are not contractual and are subject to verification upon inspection
