48MW POWER BARGE





TYPE:

Power Barge

DESCRIPTION:

48 MW Power Barge

PRICE:

Upon Request

PACKING:

As is, Where is





48 MW POWER BARGE













48 MW POWER BARGE

Includes Fuel Barge

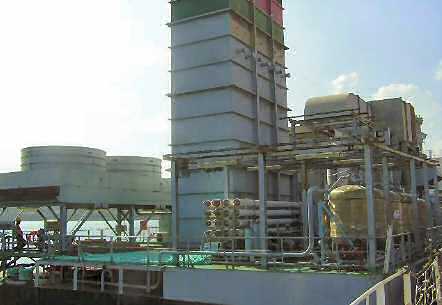

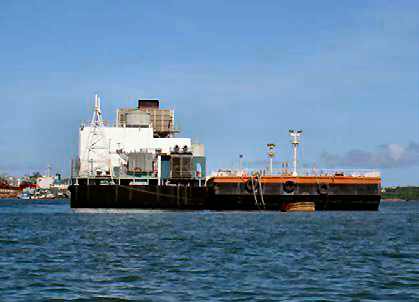

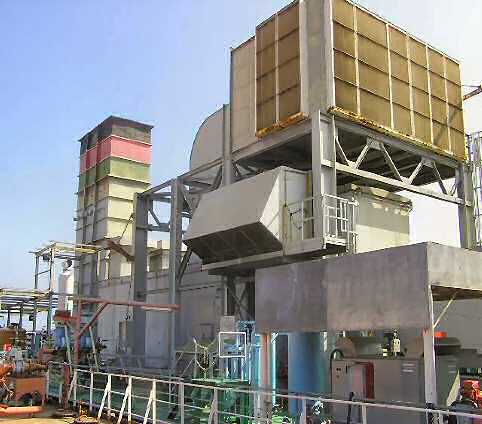

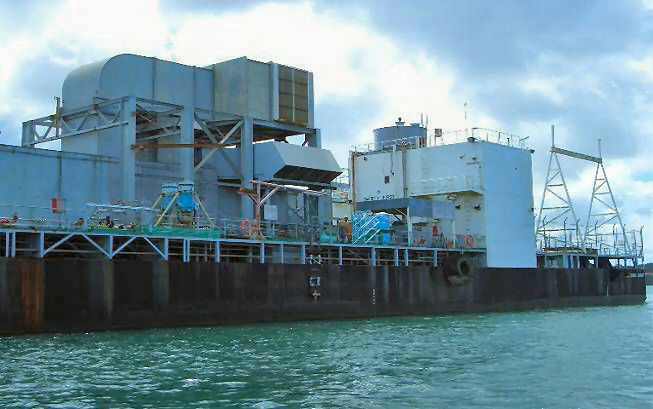

For Sale 1996 built fuel and power Barge

ONE (1) 48MWPOWER BARGE ALONGWITH FUEL BARGE 50 Hz (can be converted to 60 Hz)*

Please note that the Barge can be converted to burn HFO, however it will cost approximately $3 Million


GAS POWER BARGE DESIGNED BYWESTINGHOUSE (NOWSIEMENS) AND BUILT BY SABAH SHIPYARDS. BARGE HAS ONE WESTINGHOUSE 251B11 SIMPLE CYCLE GAS TURBINE

GENERATOR SET ALONE WITH ALL ASSOCIATED EQUIPMENTS FOR SIMPLE CYCLE OPERATION. THE BARGE IS SINGLE HAUL CONSTRUCTION AND DESIGNED AND BUILT IN ACCORDANCEWITH AMERICAN BUREAU OF SHIPPING (ABS) RULES. THE BARGE AS BUILT IN 1996, OPERATED FROM MARCH 1997 TO JUNE 2004.

A) BARGE DETAIL

POWER BARGE:

LENGTH (OVERALL) 70.0METER

BEAM(MOLDED) 14.0METER

DEPTH (AT SIDE) 5.0METER

DRAFT (ESTIMATED) 4.3METER

FUEL BARGE:

LENGTH (OVERALL) 92.0METER

BEAM(MOLDED) 22.0METER

DEPTH (AT SIDE) 5.0METER

DRAFT 4.3METER

B) GAS TURBINE GENERATOR

TURBINE SKID CONSISTING OFWETINGHOUSE "ECONOPAK" (SIEMENS)W251 B-11

COMBUSTION TURBINE 49,500 KW, ISO BASE RATING, 18.8 LB PRESSURE

RATIO, 386.0 LB/SEC MASS FLOW, 5425 RPMTURBINE SPEED, 957 F EXHAUST

TEMPERATURE. HEAT RATE: 11,800.52 BTU/KWH, DIESEL FUEL,

ELECTRIC STARTMOTORWITH AUXILIARY GEAR

WESTINGHOUSE 1000 HP, FRAME 4509, 6600/3300 V, 3 PHASE, 50 HZ, RPM: 1486/1481

GEAR REDUCERWITH QUILL SHAFT

LUFKIN MODEL:N3007C, RATIO:1.806:1, SPEED: 5418/3000 RPM

APPLICATION FACTOR:1.43, APPLICATION POWER:115267 HP, UNIT POWER: 80460 HP

GENERATOR

BRUSH TYPE:TURBOGENERATOR, FRAME:BDAX7-290ER, CONTINUOUS RATING,

RATING: 65882 KVA, RPM:3000, VOLTS:11.5 KV, 3 PHASE, 50 HZ, PF:0.85

AMPS:3307, INSULATION CLASS ROTOR/STATOR: F/F, PHASE CONNECTION:STAR

EXCITATION VOLTS/AMPS:250/1035, SPEC:IEC 34.3

MACHINE NUMBER:62034A-IG YEAR BUILT:1995

BRUSHLESS EXCITER

BRUSH, FRAME:BXJ40-20, CONTINUOUS RATING, SPEC:IEC 34.3, INSULATION: CLASS F

DC VOLTS/AMPS:225/1138, FIELD VOLTS/AMPS:51/7.2

MACHINE NUMBER:62034A-1E PMG

FRAME:PMX 34-10, RPM:3000, PHASE/HZ:1/400, VOLTS/AMPS:200/15

MACHINE NUMBER: 62034A-1P

TURBINE INLET AIR FILTERWITH HOUSING

AAA FILTER HOUSE, AV-6W/L, STYLE CODE: COALESCEP DURAVEE 90

MODEL NUMBER:107-1710409-B, CONTROL NUMBER: 442-025, SIZE:294000 CFM

GENERATOR INLET AIR FILTER AND EXHAUST AIRWITH HOUSING

TURBINE EXHAUST STACK UPWARDS 50 FEET

LUBE OIL SKIDWITH PUMPS ETC.

TURBINE AND GENERATOR HOUSINGWITH FIRE PROTECTION SYSTEM

DISTILLATE FUEL DIVIDER,MANIFOLD.

FUEL TREATMENTMODULEWITH PUMP

PIPING CONNECTION POINTWITH ISOLATION VALVES FROM FUEL BARGE TO POWER BARGE.

INTERNAL PIPING

GENERATOR LINE SIDE AND NEUTRAL SIDE CUBICLES

LUBE OIL AIR FIN FAN COOLER

C) CONTROL ROOM

WESTINGHOUSEWDPF II TURBINE CONTROL PANEL

EP VOLTAGE REGULATOR

GENERATOR PROTECTION PANEL

DC BATTERY CHARGER,MCC. DC MOTOR STARTER

D) GENERATOR BREAKER PANEL

WESTINGHOUSE TYPE 150 VCP-W750, 15 KV, 3000 AMP, 28 KA, 60 HZ

WITH PT'S SECTION AND FUSED DISCONNECT SWITCH

E) TRANSFORMER AND OTHER EQUIPMENTS

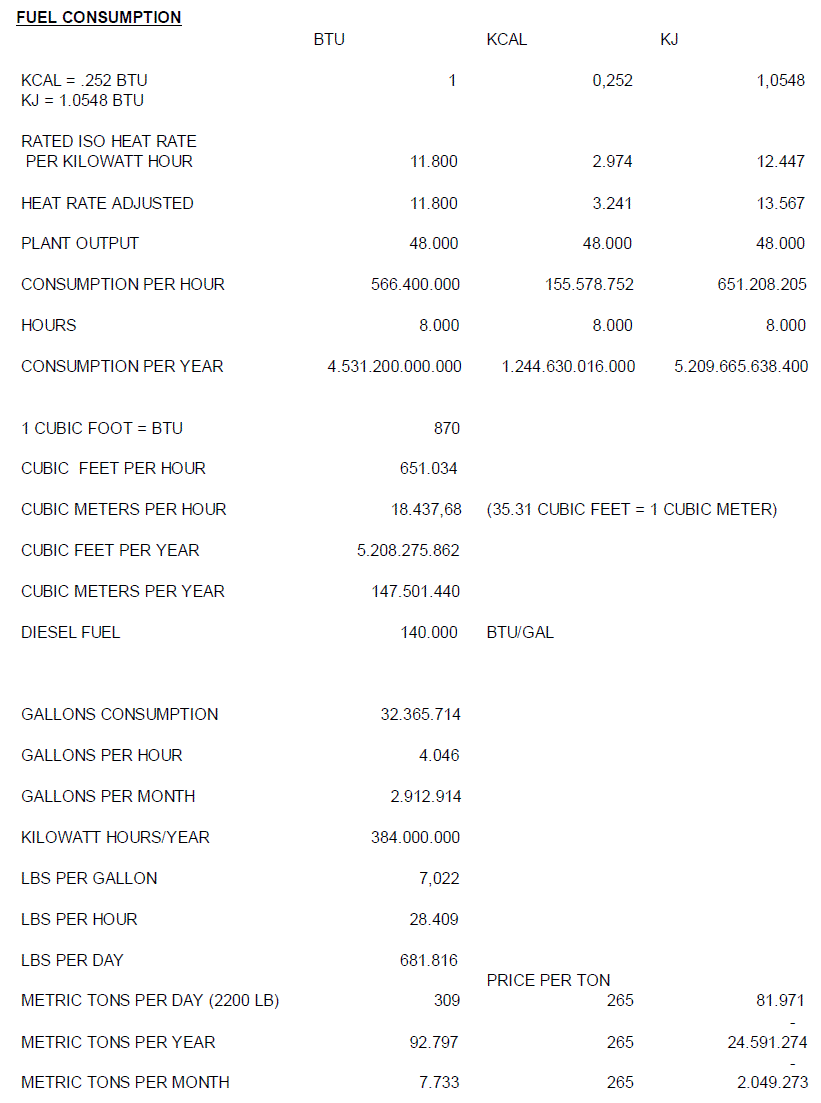

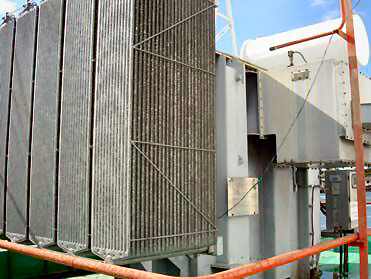

GENERATOR GSU TRANSFORMER

ABB POWER TECH

50/60MVA, 3 PHASE, 50 HZ, TYPE TBA-41, ONAN/ONAF

33 KV TO 11 KV, TOTALWEIGHT 71,630 KGS

IMPEDANCE: 11.5%

AUXILIARY TRANSFORMERS

VIRGINIA OIL FILLED, 750 KVA, 3 PHASE, 50 HZ, 11,500 V TO 400 GRDY/230 V

ALWINDING, 65 DEG C RISE,

VIRGINIA OIL FILLED, 1,500 KVA, 3 PHASE, 50 HZ, 11500 V TO 6900 Y/3985

ALWINDING, TOTALWEIGHT:14,000 LBS,

WESTINGHOUSE AMPGUARDMOTOR STARTERS

MCC ROOMWITHMCC

FIRE PUMPWITHMOTOR

AIR COMPRESSOR ATLAS COPCOMODEL ZT45 PRODUCT NUMBER 8972432779,

WITH AIR RECEIVER.

GENERAL ISO PHASE BUS DUCT

EMERGENCY DIESEL GENERATOR SET, KOHLERMODEL: 200ROZD,

WITH BAYLOR GENERATOR,MODEL: G 450 ZST-480, 1700 KW, 2125 KVA, 1500 RPM,

11500WYE, 3 PHASE, 50 HZ,

1 von 2

SPARE PARTS/TOOL ROOM

VIATEC DM WATER PLANT

OFFICE/RECORD ROOM

HAMWOTHY SUPER TRIDENT SEWAGE TREATMENT UNIT, SIZE ST-2A, G.O. NO: 47167-03

1.6 CU.M/DAY

F) FUEL BARGE

7500 DWT FUEL STORAGE BARGE.WITH FOUR FUEL PUMPS LEIST RITZ TYPE L3MG

80/160 AND TWO SPARE PUMPS

ALL INTERCONNECTING PIPES.







EQUIPMENT PACKAGE



Gas Turbine Generator skid

Consisting of Westinghouse “Econopak” (Siemens) W 251 B11 combustion turbine Rated as follows:

49,500 KW, ISO Base Rating

Pressure Combustion Ratio: 18.8 lb

Mass Flow: 386.0 lb/sec

Turbine Speed: 5425 RPM

Exhaust temperature: 957 degrees F

Heat Rate: 11,800.52 BTU/KWH

Fuel Required: Diesel



Electric Start Motor with auxiliary gear

Westinghouse: 1000 HP

Frame: 4509

Voltage: 3 Phase, 50 HZ , 6660/3300 V

Speed: 1486/1481 RPM



Lufkin Gear Reducer with Quill Shaft

Model: N3007C

Ratio: 1.806:1

Speed: 5418/3000 RPM

Application Factor: 1.43

Application Power: 115267 HP

Unit Power: 80460 HP



Generator

Type: Brush type Turbogenerator

Frame: BDAX7290ER

Continuous Rating: 65882 KVA

Speed: 3000 RPM

Voltage: 3 Phase, 50 HZ, 11.5 KV

PF: 0.85

AMPS: 3307

Insulation Class Rotor/Stator: F/F

Phase Connection: STAR

Excitation Volts/AMPS: 250/1035

Spec: IEC 34.3

Machine Number: 62034A1E

PMG



Brushless Exciter

Frame: BXJ4020

Continuous Rating, Spec: IEC 34.3

Insulation: Class F

DC Volts/ AMPS: 225/1138

Field Volts: 51/7.2

Machine Number: 1162034A1P













Turbine Inlet Air Filter Housing

AAA Filter House

AV6

W/L

Style Code: Coalescep Duravee 90

Model Number: 1071710409B

Control Number: 442025

Size: 294000 CFM

Generator Inlet Air Filter and Exhaust Air with Housing

Turbine exhaust stack upwards 50 Ft.

Lube Oil Skid with Pumps, etc.

Turbine and Generator Housing with Fire Protection system

Distillate Fuel Divider, Manifold

Fuel Treatment Module with Pump

Piping Connection Point with Isolation Valves from Fuel Barge to Power Barge

Internal Piping

Generator Line Side and Neutral Side Cubicles

Lube Oil Air Fin Fan Cooler



CONTROL ROOM

Westinghouse WDPF II Turbine Control Panel

EP Voltage Regulator

Generator Protection Panel

DC Battery Charger, MCC. DC Motor Starter



GENERATOR BREAKER PANEL

Westinghouse Type 150 VCPW750

15KV, 3000 amps, 28 KA, 60 HZ

With PT’S Section and Fused Disconnect Switch



TRANSFORMER and other equipment

Generator GSU Transformer

ABB Power Tech

50/60 MVA, 3 Phase, 50 HZ, Type: TBA41

Onan/Onaf 33KV to 11KV

Total Weight: 71,630 KGS

Impedance: 11.5%

Auxiliary Transformers

Virginia Oil Filled, 750 KVA, 3 Phase, 50 HZ, 11,500V to 400 GRDY/230V

AL Winding, 65 degree C Rise

Virginia Oil Filled, 1,500 KVA, 3 Phase, 50 HZ 11,500V to 6900 Y/3985

AL Winding

Total Weight: 14,000 lbs

Westinghouse Ampguard Motor Starters

MCC Room with MCC

Fire Pump with motor

Air Compressor: ATLAS COPCO, Model ZT45, product number 8972432779 with air

receiver

General ISO Phase BUS Duct

Emergency Diesel Generator Set: Kohler Model: 200ROZD, with Baylor generator, Model:

G 450 ZST480,

1700 KW, 2125 KVA, 1500 RPM, 11500 WYE, 3 Phase, 50 HZ

Spare Parts/Tool Room

VIATEC DM Water Plant

Office/Record Room

HAMWORTHY Super Trident Sewage Treatment Unit: size ST2A,

G.O. # 4716703,

1.6 CU. M/Day



FUEL BARGE

7500 DWT Fuel Storage Barge

Four Fuel Pumps: LIEST RITZ Type L3MG

80/160 and two spare pumps

All interconnecting pipes.



Barge is presently in an as is, where is condition.

The selling price is based upon transporting barge to a qualified overhaul facility.

Turbine will receive a full overhaul to zero hour status.

Unit will then come with full warranty from overhaul facility.








Barge 48M 50 Hz





Siemens-Westinghouse W251B11

48 Mw

50 Hz

Rebuild 2 hours

West Africa

Experienced gas turbine power plant personnel to perform a complete and thorough condition assessment of the entire plant and to perform the rehabilitation and commissioning works.

Works were completed on July 26, 2012, when the unit was successfully tested for 2 hours on Full Speed No load (FSNL). The gas turbine and all auxiliary equipment performed within the design parameters during the test. Vibration levels were all normal. Blade path temperature spread was minimal, indicating good and uniform burning of fuel at the nozzles. Temperatures of turbine disc cavity, bearings, and compressor discharge and rotor air were all normal during the test. No alarms or abnormal conditions were observed on any auxiliary equipment including the 1.7 MW black start generator. Generator was excited up to rated voltage while transformers, HV cables, switchgear and bus were energized up to 11.5 kV during the test.

Balance of plant equipment have been overhauled and commissioned and are now ready for continuous service. All necessary tests were performed on motors and pumps including insulation resistance, polarization index, temperature, vibration, together with functional and run checks. The generator, transformers, switchgear, motor controllers, together with LV and high voltage equipment have been groomed and commissioned to ensure electrical integrity. Power factor, voltage withstand, insulation resistance, ratio and polarity, protection scheme checks have been performed. Filtration and heating under vacuum was performed on the transformer oil in addition with dissolved gas analysis and dielectric breakdown testing to ensure oil quality. New inlet air filters and turbine insulation have been installed. Air inlet filter house has been repainted, cleaned and inspected. Preventive and corrective maintenance was performed to guarantee that balance of plant equipment is in optimum condition.

Turbine controls together with generator protective relays, metering, AVR and synchronizer have been replaced with a modern system from HPI, a reputable US based company. The new Allen Bradley PLC Turbine Control System was commissioned by a professional gas turbine controls company, HPI from Houston, Texas represented by Mr Paul Tovar. Sufficient spare input/output and analogue capacity has been installed to cater for future expansion and project specific changes.

Turbine vanes, blades and combustor parts have been replaced or repaired as needed for a normal hot gas path inspection as recommended by the OEM, Siemens Westinghouse. The parts/repair company used was Turbine Resources Inc. (TRI) from Euless, Texas. In addition we performed and inspection of the turbine from the inlet to the exhaust section as well as the journal and thrust bearings under the supervision of Frank Hick, a Siemens-Westinghouse gas turbine specialist with more than 35 years of practice in the field. Hot section parts were coated with special thermal barrier coating for use of different types of fuels including HFO. The gas turbine should not require another major inspection till after 48,000 equivalent base load hours.

Preservation measures are implemented to maintain the turbine and ensure its readiness for operation and in an optimum state of preservation.

In our professional opinion, the plant should be able to produce near the full OEM rated output corrected to ISO conditions. Following OEM maintenance recommendations, the unit can reasonably be expected to operate successfully for at least 25 years. Heavy duty gas turbines have indeed very 5

Long useful lives and we have seen similar turbines with over 40 years in the field and over 200,000 hours still operating satisfactorily.

II. Technical Specifications

Dynam is a power barge with a Siemens-Westinghouse W251B11 simple cycle gas turbine rated at 48MW on Natural Gas and 46.4Mw on Diesel Fuel at ISO conditions. The plant is a self-contained, electric power generating system ready to provide a quick solution to energy needs.

The Siemens Westinghouse W251B11 gas turbine is a heavy duty turbine consisting of 19 stage axial flow compressor, a combustor section with 8 combustor assemblies, and a 3 stage reaction type turbine. The single shaft engine is mounted on a bedplate. A lubrication pump, as well as associated pumps, and filters are located adjacent to the engine. The machine rotor is supported by two pressure lubricated pivoted pad journal bearings. A double acting tilting pad thrust bearing maintains axial shaft alignment. The nominal engine speed is 5,428 rpm, with the generator driven from the cold (compressor end) through a double helical reduction gear to obtain the 3,000 rpm required for 50Hz operation. The turbine is designed with features such as horizontally split sectionalized casing, two bearing support, turbine air cooling system, compensating alignment system, and axial–flow exhaust.

Dynami III Power Barge Classification: American Bureau of Shipping

Class Number: 9734123

Type of construction: Naval steel, flat fund, without propulsion

General dimensions:

Length: 64.36 meters

Breadth : 18.28 meters

Depth: 4,26 meters

Gross Tonnage: 2,876 tons

Net Tonnage: 863 tons

Westinghouse 1 X W251B11/12 ECONOPAC

Configuration: Gas Turbine, simple cycle.

Capacity: 1X48 MW ISO

Type of fuel (start): No. 1 distillate

Type of fuel (operation): Condensate/ Kerosene (HFO / Gas is possible)

Compressor: 19-stages axial flow

Turbine: 3 stages

Speed: 5,428 rpm

Speed Reduction: 3,000 rpm

Generator: Brush synchronous 3-phase, air cooled generator

65882 KVA, 11.5 kV, 50 Hz

Output: 11.5 kV - 50 Hz

GSU rating: 33 KV

Operating hours: 29,937

Starts: 845

Hours since last major overhaul: 0 (zero)

III. Gas Turbine

A full hot gas path and modified major gas turbine inspection was completed on the unit. All the major hot section parts have been replaced including turbine blades, stationary vane segments, transition pieces and combustor baskets. Torque tube and compressor section have been inspected and new compressor diaphragms were installed on rows 8 to 11. Turbine journal and thrust bearings were also checked and cleaned. All pertinent clearances and readings were taken and confirmed according to OEM recommendations.

During the Full Speed No Load test, the turbine ran very satisfactorily with no signs of rubbing and unusual noises during coast down. Blade path temperatures were uniform with minimal spread. Temperature levels on the disc cavity, journal and thrust bearings, and combustor and rotor air were all normal during the test. No leaks were found on the turbine and compressor casing or on the nozzle assembly and piping flanges. Vibration levels were all normal. Dial indicators were installed on both of the trunions to check for the expansion of the turbine as it heated up. Readings were found to be within OEM parameters and showed that the turbine was expanding uniformly.



a. New replacement components 1

Transition Pieces

2

Transition Seal-Inner

3

Transition Seal-Outer

4

Row 1 Vane Segments

5

Row 2 Vane Segments (7 pcs)

6

Row 3 Vane Segments

7

Row 1 Ring Segments

8

Row 2 Seal Housing Assy

9

Row 3 Seal Housing Assy

10

Row 8 Compressor Diaphragm

11

Row 9 Compressor Diaphragm

12

Row 10 Compressor Diaphragm

13

Row 11 Compressor Diaphragm
