13.30M FPB





TYPE:

Boat

DESCRIPTION:

Fast Patrol Boat 13.30 Mtrs

PRICE:

Upon Request

PACKING:

Ex Shipyard

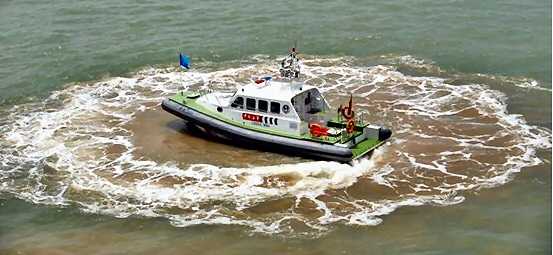

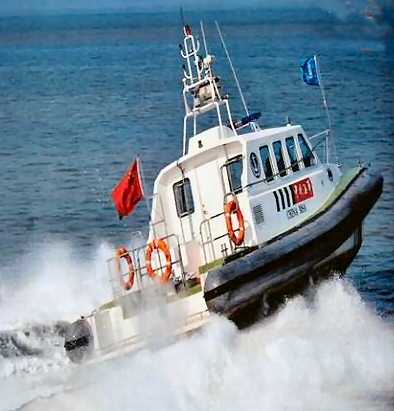

fast patrol boat 13.30 m



From New Manufacture





This high speed patrol/military boat is designed for below multi-mission / purposes: Anti-piracy, anti- smuggling and anti-drug trafficking operations; Search and Rescue operation in inland, offshore and coastal areas; Fishery protection, intercepting and patrol in and around ports and coastal areas; Disaster Relief operations; Patrol in inshore and offshore area and all types of Surveillance.



Specifications




NEW BUILD - 13.3m High Speed Patrol Boat



NEW BUILD

Vessel type: Patrol / Military Boat



No. Of engines:2

Maximum Speed:40 Knots

Nominal length:13.30m

Length over all 13.32m

Beam:4m

Hull material:Kevlar

Displacement: 12 metric tons





Engine(s)

Power System

Engine : 2X MAN R6-730/537KW
Flexible Shaft Control Unit
Hydraulic Control System
Engine Speed Indicator
Oil Pressure Gauge
Water Thermometer
Voltmeter
Ammeter
Fuel Consumption Indicator

ELECTRICAL & ELECTRIC SYSTEM
Generator
Distribution Panel
Air Conditioner
Sea Water Pump
Sea Water Filter
Pump Controller
Fan-coil Unit
Cabin Heat Insulation



Construction

TECHNICAL DATA

LOA:13.325 m
MOLD LENGTH : 12.00m
BEAM(MAX.) : 4.00 m
DEPTH : 1.70 m
DRAFT : ^0.7 m
DISPLACEMENT (FULL LOAD) : ^12 tonnes
HULL MATERIAL : FRP(Kevlar + Vinyl ester)
BOAT TYPE : mono-hull deep-V form
PASSENGER CAPACITY : 6-8 persons
CRUISING RANGE : 250 nautical miles
MAX. SPEED : 40 knots
STERN DRIVE : 2 X HJ364
ENGINE : 2X MAN R6-730/537KW


DECK FITTING FEATURES
Deck Fittings
Stainless Steel Railing
Flagpole
Stern light Pole
Stainless Steel Handrail
Weather-tight Back/Side Door
Engine Cabin Shutter
Wheelhouse Multi-functional Skylight
Galley/Toilet Multi-functional Skylight
Crew Lounge Multi-functional Skylight

LIGHTING SYSTEM
Cabin Lighting : LED Lamp
Instrument Lighting
Engine-room Lighting : LED Lamp

Accommodation

CABIN FEATURES
Bridge
Chart Table
Tool Box
Twin Soft Damping Seat : 5
Single Bed in Rest room : 2
Bed Stand
Cabinet
Dish Washing Pool
Induction cooker
Patented Toilet Device



Equipment

ANCHOR GEAR
Tiller Telltale
Anchor Gear
Electronic Anchor
Electrical Windlass
Maxwell High Holding Power Anchor

TOWING AND MOORING UNITS
Stainless Steel Mooring Unit
Mooring Cleat
Ridding Bitt
Side Chock
Three Standatd Braided Polyester Nylon Rope





Navigation Equipment

CONTROL SYSTEM
Main Bridge
Steering Wheel
Electric Flexible Shaft Control Unit
Hydraulic System
HJ Propulsion Control Unit

NAVIGATION SYSTEM
Radar
Magnetic Compass
Military Binoculars

COMMUNICATION SYSTEM
VHF Wireless Telephone
Talkie and Walkie
Internal & External Broadcast System





Safety Equipment

SURVIVAL & FIRE FIGHTING APPARATUS
Lifeline
Life Vest
Parachute Distress Rocket Signal
Red Hand Flare
Orange Smoke Signal

CABIN INSULATION SYSTEM
Extra-fine Glass Wool Thermal-protective Coating
Fire-proof Insulation Spacer Layer

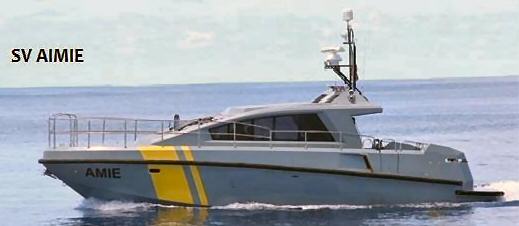

13.35M FPB





Full Specs




13.35M FPB RV.pdf



Specification and photos are not contractual and are subject to verification upon inspection
