VOLVO FH 440





TYPE:

Truck

DESCRIPTION:

Volvo FH 440 6x4 Tractor Head

PRICE:

Upon Request

PACKING:

Ex-Depot

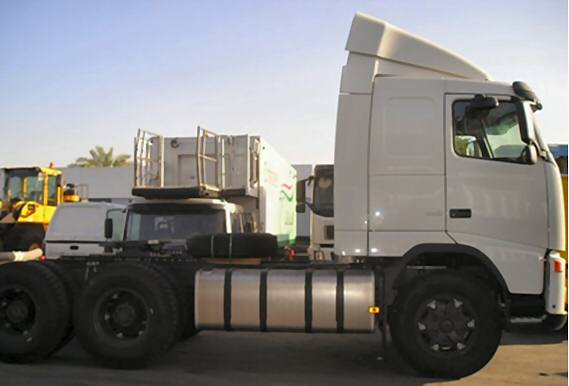

VOLVO FH 440 6X4 TRACTOR HEAD











TECHNICAL SPECIFICATIONS OF VOLVO FH 440 6X4 TRACTOR HEAD



Make / Model Type: Volvo FH 440 6x4 Tractor Head
Drive Configuration: 6X4 Tractor Head
Wheel base: 3200 mm
Front Axle: 8.0 tons
Rear Bogie: 26 tons
Gross Combination Weight: 100 tons
Origin: Brazil


Engine: Volvo D13A 440, 6 cylinder, 4 stroke water cooled Turbo charged,
Intercooler. All speed governor provided. Engine confirms to Euro
III emission standard Net ISO  SAE out put 440 HP at 1400-1800 rpm Net ISO / SAE  Torque2200Nm at 1050-1400 rpm (VEB) Volvo Engine Brake (compression brake) with maximum power of 300 KW @ 2300 rpm
Gearbox: V2214B, 14 forward speeds including 2 Crawlers. Oil cooler provided.
Clutch: Power assisted, Reinforced double plate clutch.
Final Drive: RT3210HV, single reduction with hub reduction.
Differential locks between wheels and between axles.
Cabin: White Color sleeper cab with one bottom bed. Forward  Control type cabin. Provided with tinted glass and Dash board type air conditioning Unit. Anti corrosion treated. Retractable seat belts, fully adjustable suspension seat for driver.
Tyres: 12.00 R 24 size Michelin or equivalent. Total tyres are 11 no including one spare wheel with tyre which would be supplied un mounted.
Electrical Equipment: 24 v system. Batteries 2 x 170 Ah. Heavy duty alternator of 80A.  Battery cutout switch, Reverse light included.
Fuel Tank: 505 liters aluminium tanks with lockable filler cap.
Steering: Power steering of ball and nut type. Steering column adjustable.
Brakes: Dual circuit compressed air brakes with automatic Slack adjuster. Air compressor capacity 530 liters/ min at 1900 rpm and 8.0 bar counter pressure. System fitted with air dryer.

Additional components:
 5TH Wheel 3.5” fitted from factory.
Working lamp in the 5th wheel.
PTO.
Primary fuel filter with water separator.
Rotating beacon lamp.
Back up alarm.
Radio cassette player.
Electrical window lifts.
Towing hook front and rear.
Vertical exhaust.
Tyre inflation hose.
Fire extinguisher.
First aid kit.
Tool kit & Jack (20 T).






Specification and photos are not contractual and are subject to verification upon inspection
