UTV





TYPE:

Utility Vehicle

DESCRIPTION:

650cc 4x4 Utility Vehicle

PRICE:

Upon Request

PACKING:

See details below




650cc 4x4 utility vehicle












New model HIGH QUALITY UTV's DIRECT FROM FACTORY



650CC 4 x 4 EPA Utility vehicle





DIMENSIONS

Overall length: 116in. (2,950mm)
Overall width: 62in. (1,580mm)
Overall height: 72in. (1,830mm)
Wheelbase: 78in. (1,950mm)
Front track: 48in. (1,220mm)
Rear track: 47in. (1,200mm)
Ground clearance: 11.2in. (280mm)



ENGINE

Type: 2 cylinders,4-stroke,liquid-cooled
Bore x stroke: 76mm x 71mm
Displacement: 644cc
Compression ratio: 8.4:1
Carburetor: BJH101E
Max. power: 20.6kW/5,300rpm
Maximum torque: 44/2,700~3,300N.m/r/min
Starting: electric
Ignition: CDI
Lubrication: force and splash
Transmission: automatism shift
Spark plug: F6T or F6TC
Fuel type: RQ93 (unleaded)
Lubricate oil: SAE-15W/30



CAPACITIES



Turning radius :  157.5 in(4000mm)

Fuel tank   :    40.0L

Starting   :    <5s

Climbing  :   20°-25°

Battery    :   12V36Ah

Fuse     :  35A

Max speed  :  35 miles/h



CHASSIS



Front, Rear brake  :  Hydraulic disc, right foot control

Front tire      :      25×8-12

Rear tire      :      25×10-12

Drive Train     :    2WD/4WD  Shaft



TIRE PRESSURE



Front   :  205kpa 2.1kg/c㎡ 30psi

Rear   :  205kpa 2.1kg/c㎡ 30psi



WEIGHT


Max load capacity  : 800kg

Net Weight  :  630kg

PACKING SIZE(MM):2800x1560x1150


shipping info:4pcs(20' FCL)/8pcs(40' FCL)

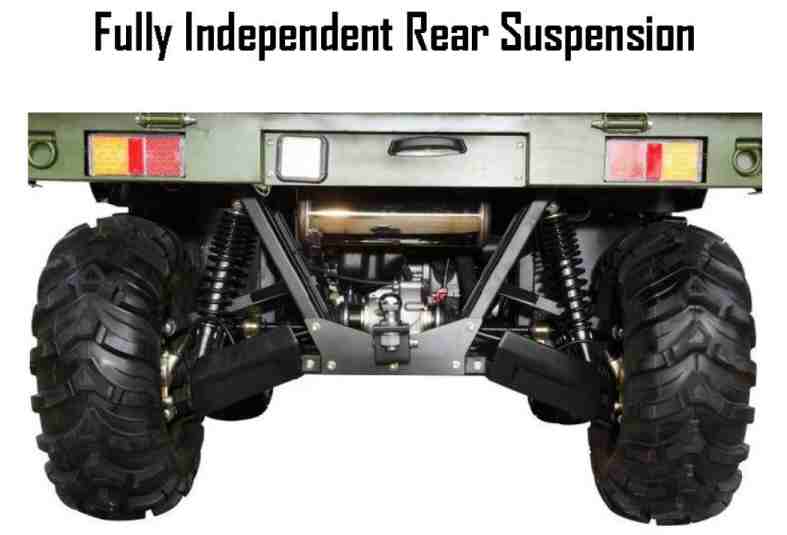

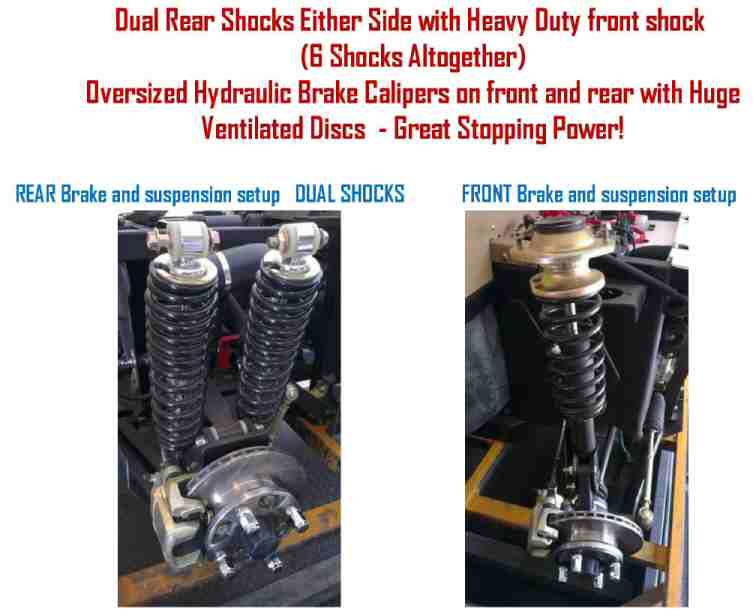

 SUSPENSION



Front: Double A model , absolute suspension

Rear: Double A model , absolute suspension



COLORS


Red, Blue, Green, Brown, Black, Yellow, Army camouflage ,Naval  camouflage , Maple

leaf  camouflage

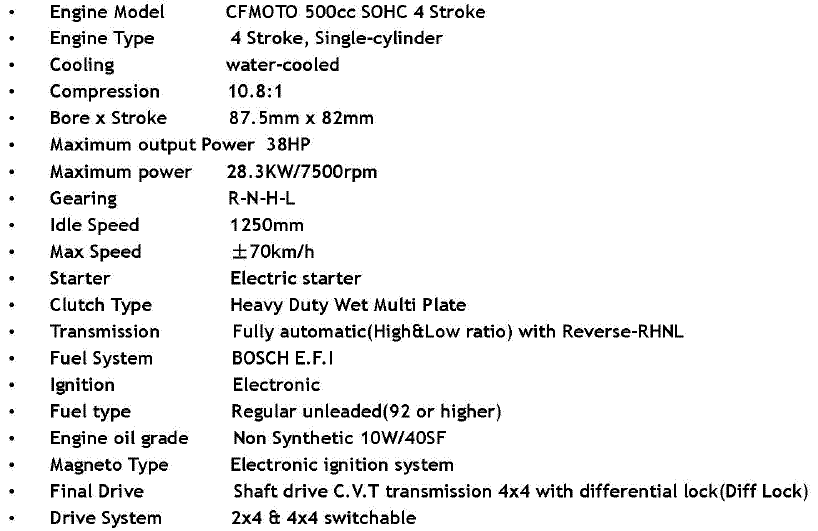

500cc CFMOTO UTV





This UTV is intalled with CFMOTO engine, BOSCH E.F.I and electric power steering (EPS)





Specification and photos are not contractual and are subject to verification upon inspection
