GENERAL   EQUIPMENT   INC.

With Provision for Ballistic Plates, to upgrade to Level, IV

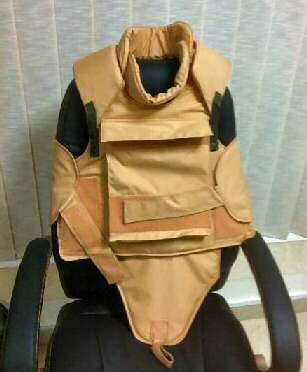

The General Purpose Vest with  Collar is designed as a basic Armor vest for the Police and private security companies.

It provides front, back, side and neck ballistic protection.

Features

• Adjustable side closure design

• Area of ballistic coverage (large): 0.45m2

• Front to back wrap around ballistic protection

• Front and back plate pockets

• Widened adjustable shoulder pads

• Size adjustment straps

As an armor it has the following inclusive properties:

•             Resistance to perforation by bullets fired from Hand Guns, Carbines.

•             Resistance to Automatic/Burst fire from 9mm Sub-Machine guns.

•             Resistance to Rifle fire with the Plates fitted. [NIJ 111 or NIJ IV]

•             Minimizes Blunt Trauma, behind the Body Armor

•             Very high attenuation of blunt impact energy. (Kicks, punches, bricks, etc.)

•             Lightweight, protective, armor.

•             Fully tested, Approved & Documented by many customers and authorities

•             Low Maintenance product

•             Outstanding resistance to chemical and biological attack.

•             Outstanding resistance to physical damage.

•             Very high tensile strength. (Greater than that of steel).

General Specifications.

1. Lightness of weight.

2. The vests are constructed from Composite Double layers of Aramid fabric, which has been Quilt stitched, to give additional strength.

3. The Outer cover is made from Hard wearing Cordura fabric, which is Fire resistant and is backed by a special wicking fabric to give a comfortable, next to skin or over shirt finish. This also works as a significant heat Management System

4. The Vest and Plates [when fitted] have multi hit protection

5. The Vest protects the Front, Back, Over Shoulder, Sides, as standard

6. All covers are removable, for washing and cleaning. Covers can be manufactured from Flame retardant material as an option

7. The Vests as designed are very easy to wear and allow the wearer to perform all the normal duties associated with Military and Police operations

8. Vest colors and badges are to customer specification

9. The Vests are the lightest protection available, meeting the NIJ [USA] standard

10. Vests are available in Male and Female sizes, from 38” chest to 52” as standard, other sizes to order

11. Due to the technical benefits of the material incorporated into these vests, there is no requirement to fit additional protective trauma shields

12. Removable ballistic panels in a water proof sealed PVC bag and Washable outer covers

       Optional Accessories

Ballistic: COLLAR PROTECTORS..

               GROIN PROTECTORS.

               SCHOULDERS  PROTECTORS.

Colors - Desert Tan

Size- large 10.000 – X large 10.000

Warranty

The Armor  material has a shelf life in excess of five years.

Therefore the Armor is warranted for 5 years.

The Covers are warranted for 1/2 year depending on the Cover material used.

Weight of Vest

Level-IIIA-9mm

3 kg (+/-) 3% depending on the size

Hard Armor Plate (Ceramic Composite Plate)

Shape: Multi curve

Outer Finish: Black nylon

Weight: 3.2 KG: 250mm x 300mm

Protection Level

Stand Alone Level IV according to NIJ 0101.04.

Provides multi shot protection against:

7.62 x 63mm AP (30.06)

7.62 x 51mm ball (NATO)

7.62 x 39mm mild steel core

7.62 x 39mm ball (AK-47/AK-56)

5.56 x 45mm ball (SS-109, M-193, M-855)

5.45 x 39mm Russian ball

Payment & Delivery Terms

•             1 flight for all 20.000 sets is included in price

Acceptable forms of payment are:

•             Letter of credit with all charges paid by buyer

Timeframe

Vest IIIA              Completion        Release

20000    20 days at receipt of final deposit

*This date is tentative depending on the availability of subcontracted components and chassis availability

Vest Report and Certifications

Test reports by recognized testing facilities can be provided on request for all the materials

Delivery as follow

20.000 Sets will be available for shipping immediately after receiving full payment

10000 sets in Large

10000 sets in Xlarge.

Armored vest: Level IIIA + Stand Alone Level IV according to NIJ 0101.04 + Collars Protectors + pocket
