OFFER#

Engine : ....................................................................................... 4.2 Diesel 136 CV 6 cylinder

Transmission : ........................................................................................... 4X4 non permanent

Gear Box : ...................................................................................................................... Manual

Dimension :

Length .............................................................................................................. 4.980 mm

Width .............................................................................................................. 1.690 mm

Hight ................................................................................................................ 2.115 mm

Wheelbase ....................................................................................................... 2.980 mm

General equipments :

Air conditioning, Power steering, Manually adjustable steering wheel, Pre-radio equipment, Heating system, 3rd brake light, Double fuel tank, Reinforced radiator, Reinforced suspension, Schnorkel, Steel wheels : 16", Front & rear tires : 7.5 X 16

2. Standard Fitting

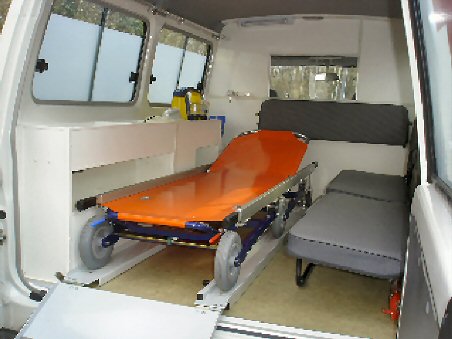

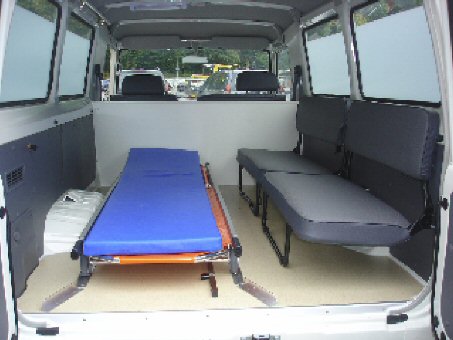

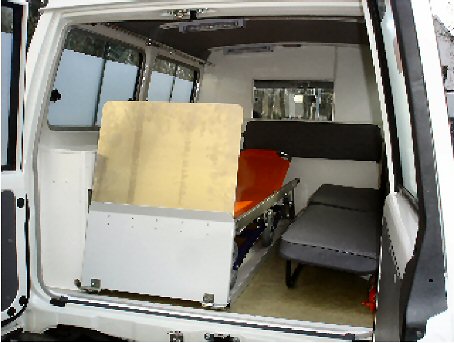

1. Medical cabin

a. Separation of the driver and medical cabin by a panel type MDF 18mm covered withlaminate and +/- 50 cm in height.

b. The floor is carried out in multiplexing 15mm specially treated to resist moisture.

Covered with a vinyl - high strength.

c. Lighting of the medical cabin by of two ceiling lights. Lighting neon light 12 volts, 2 X 8w each.

d. Stretcher Ferno model 11 with 2 folding feet and 2 wheels, maltress comfort and straps fixing for the patient as well as an attachment unit to the ground.

e. Outlet light cigar type 12 volts in the medical cabin.

f. Bar carry perfusion

g. Maintenance handle

h. Bench for stretcher-bearer above of the passage of right back wheel.

2. Indication

- Installation of a rotation beacon on the roof. 2 colors available (red or blue).

- Enquiring lamp

- Masking the . of the panes of the medical cabin (back and side) by a film

- 3M, translucent.

- Marking Red Cross front, back and side.

3. Picture

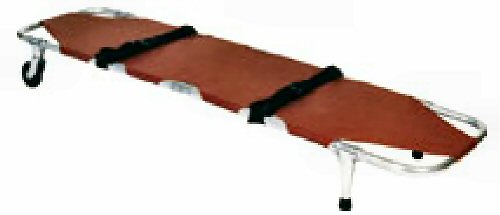

- Stretcher proposed in the offer is delivered with straps of safety and mattres

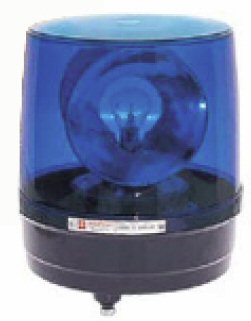

- Rotating beacons (blue or red)

All the different fittings are available separatly

Misc:

□ Portable fridge in the medical cabin.

□ Rear Air Conditionning.

□ Placement of a roof ventilation in the medical cabin.

□ Marking personalized with logo of company or others.

□ Complementary battery with circuit breaker and electric case with fuse to feed the complementary electric installations.

□ socket-outlet 12 V or 220 V.

□ Converter 12/220 V in 1000 W.

Inside fittings :

□ Thermal and acoustical isolation of the medical cabin and the back doors.

□ Complete separation of the driver and the medical cabin with integration of 2 sliding walls.

□ Storage unit on the left lateral side of the medical cabin.

□ Storage case with lid bench (in the angle formed by the separation of the medical and driver cabin, the lateral right side of the medical cabin).

Outside fittings :

□ Additional installation of rotating beacons on the roof (front or back).

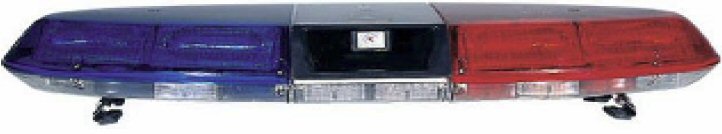

□ roof crawl installation. Other colours available.

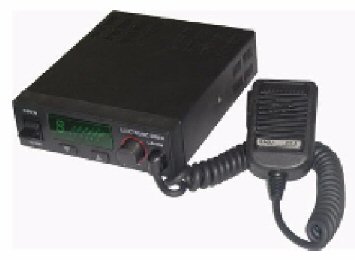

□ Electronic siren of American type and a power of 100 w.3 sound possible (Wail-Yelp-Hi-lo). Function “horn” and public address.

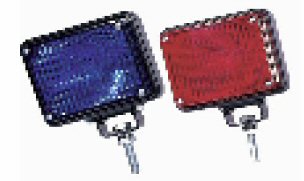

□ 2 front and 2 rears Recall lights. Other colours available

□ Strobe flash lights integrated in the front and rear lamps of the vehicle. Other colours available

6. Medical material

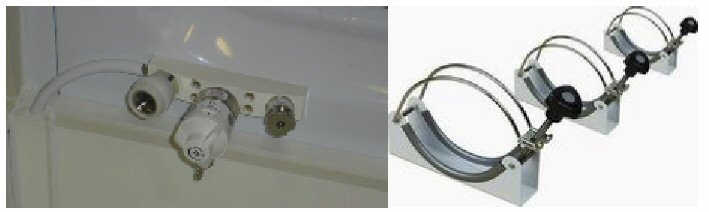

□ Oxygen system : integration of an attached unit of oxygen bottle B10 typewith a distribution ramp made of a flow litre with ball gauged at 0.5 to 15 liters oxygen per minute, as well as two quick action couplings (a catch of Drager type and one of Liquid air type) to allow the connection of the respirator.

□ Single use Disposable oxygen mask (sold by 10 units).

□ Gray cover for stretcher (150 X 220 cm). Sold as a 3 units package.

□ Isothermic silver/gilded cover.

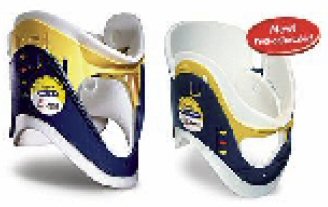

□ Laerdal cervical collar adjustable Stifneck select - adult.

□ Weinmann rescue-Pack with complete standard equipment. (Complete Description cf annex point A).

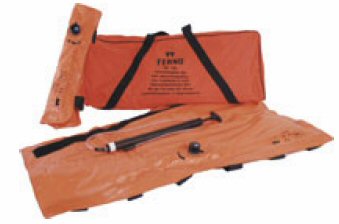

□ Ferno Set attelles vacuum AS190GR – Channeled Contents: front armlever, arm, leg, pump and repair kit in a bag for transport.

□ First aid Bag made up of a basic Multi bag with supplements ( complete description cf annex point B).

□ Material kit for perfusion ( complete description cf annex point B).

6. Annexes

Complete description of some medical devices

A) Weinmann rescue-Pack. The comfort of an emergency bag and the flexibility of an emergency Rucksack. The well arranged interior and the folding transparent compartments allow a rapid access with the medical equipment Material of high-quality, very resistant and easy to clean.
The oxygen bottle and the aspiration pump are fixed to.
The interior of the bags by tensioners to guarantee a distribution thanks to the broad straps, the port of the bag is very comfortable Dimensions: 40 X 56 X25 cm - 3.7 kg.
Contents : Rucksack, lamp holders (10), 2 strap-attaches bottle O2, adult Combibag balloon insuffl and combined child, O2 tank, Kit of ventilation masks with how up skirt made out of silicone cuts 5 and cuts 3, Kit of Guedel nozzles, Kit of nasopharyngees nozzles, MANUVAC aspiration pumps (see details hereafter),aspiration kit.
Kit of 3 doors bulb (3x11), metal laryngoscope with blades 1 and 3, piles, Kit of endotracheal tubes of single use, Kit of intubation, tensiometer, stethoscope, cuff with pressure for perfusion, 1 ophtalmo lamp, 1 reflexes hammer, 1 garrot, 1 anatomical grip, 1 surgical grip, 1 scissors, 1 lancet, 1 spatula

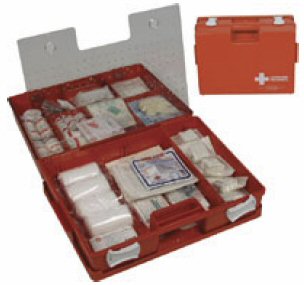

B) First aid kit.

Contents : 2 bandages for wound ready to use 6 X 8 cm, 4 bandages ready to use No 1,2 bandages ready to use No 2,1 bandage ready to use No 3,5 packages of white wadding of 10 grams, 4 rollers of synthetic wadding of 10 cm, 16 sterile compresses /16,10 sterile compresses 5 X 5 cm, 10 sterile compresses 10 X 10 cm, 2 Nobaline compresses 8 X 10 cm, 2 Nobaline compresses 10 X 12 cm, 3 elastic absorbent 6 and 8 cm, 2 Cambric bands 8 and 10 cm, 3 triangular bands, 1 roller of adhesive plaster 2,5 cm, 1 set of bandages for wound, 1 package of bandages for wound 6 cm, 1 scissors to bandage To list, 1 grip with splinters, 6 safety pins, adjustable Head, 1 pair of disposable gloves, 1 Kiss-of-life,1 List to note the most important phone numbers, 1 Index of the first aid kid, 1 compress Burnshield 10 X 10 cm, 1 Rudafix roller 900 X 1,25 cm, 1 adhesive plaster Rudanaht 75 X 3 mm, 1 adhesive plaster Rudanaht 100 X 6 mm, 1 isothermic cover gold/silver, 10 clips, 1 Burnshield compress 10 X 10 cm, 5 lingettes Savett, 2 Nobalastik rollers 500 X 8 cm, 4 Nobafix rollers 400 X 4 cm, 3 Nobafix rollers 400 X 6 cm, 2 Nobafix rollers 400 X 8 cm, 2 Nobaline bandages 10 X 12 cm, 3 rollers Co-flex 450 X 2,5 cm blue, 2 rollers Co-flex 450 X 3,75 cm blue, 1 set of detectable adhesive plasters.

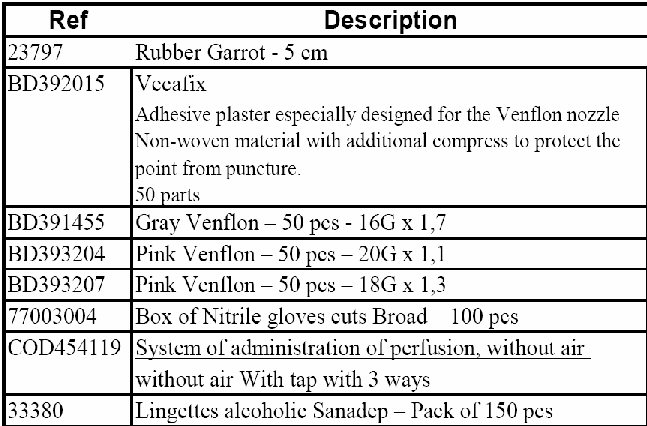

C) Material kit for the perfusion kit

TYPE:	Ambulance

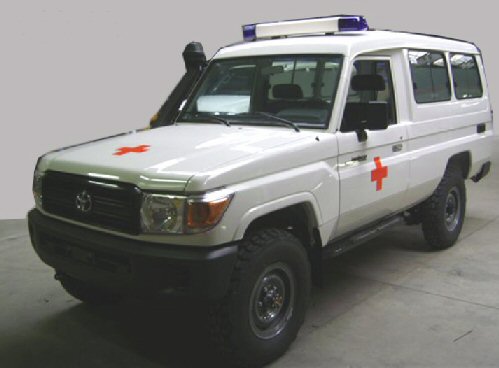

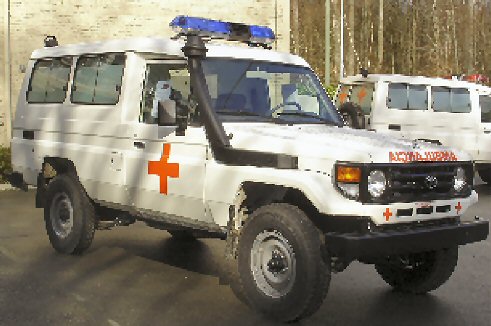

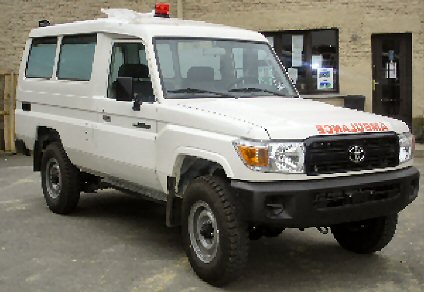

DESCRIPTION:	Toyota Land Cruiser Ambulance
PRICE:	Upon Request
PACKING:	As is, Where is
