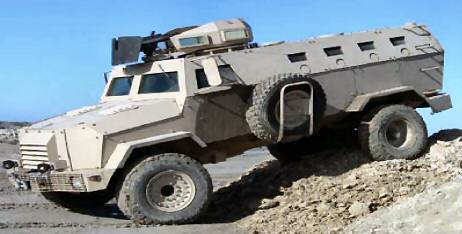

TITAN APC

TECHNICAL SPECIFICATION

B6 APC [F550 6.4 LITER V-8 DIESEL]

SPECIFICATION: IAG-F550-APC

1.0 This specification outlines the design modifications to be applied to the above mentioned vehicle in order to convert this vehicle to a protective armored vehicle.

2.0 Base Vehicle Specification – Ford F550 6.0 Liter V8 Diesel

(OEM features may vary depending upon availability at time of order)

• Ford F550, 4x4, 189" WB, Left-hand side steering wheel

• Engine: 6.4 Liter V8, Turbo Diesel

• Horsepower: 350hp @ 3,300RPM

• Torque: 600 lb.-ft. @ 2,000RPM

• Transmission: 5-speed automatic, electronically controlled

• Braking system: front disc, rear drum

• Suspension: modified, FR/RR spring leafs with heavy-duty shock absorbers

• Steering: power-assisted

• Electrical: 12V system

• Total, fuel tank capacity: 230 L

3.0 Armor Conversion Modifications / Alterations

• Five sided armoring of passenger compartment to defeat 7.62x51mm M80 NATO Ball ammunition.

• Floor is fitted with a blast protection and V-Hull to protect occupants against blast from mines and fragmentation grenades.

• Vehicle armoring shall be constructed in such a way as to ensure that a projectile following a linear or angled path shall not enter the vehicle’s interior without contacting the armor material.

• Entire engine compartment protected to the same level as passenger compartment. Air vent louvers installed on the front and top of engine compartment to allow for air ventilation through.

3.1 Glass

• A combination of glass, polycarbonate and Mylar are bonded together using the latest technology, producing one of the finest transparent armors available while incorporating the following qualities:

• Glass is positioned geometrically to obtain the optimum blast mitigation from side blast or improvised explosive devices.

• Anti-spall shield protecting against shattering glass

• Finest optical quality, minimal distortion.

3.2 Doors

• Entry/Exit points are located on the top, rear, and right side of the vehicle.

• Armor overlap at all doors to prevent ballistic penetration through door frame

3.3 Instrument Panel

• All indicators required for operation, including speedometer, tachometer, coolant temperature, fuel level, oil pressure, odometer, door open indicator, water in fuel indicator are included.

3.4 Standard Features

• Air circulation system, intake/exhaust electrical fans

• Auxiliary Heating/AC unit: Heating 46000BTU/Hr, Cooling 33,000BTU/Hr

• Heavy duty front and rear ram bumpers

• Front mounted 5-ton self recovery electric winch

• Two Fire extinguishers

• Driver and commander bucket seats with 3-point seatbelts

• 10 crew jump seats with 2-point seat belts, configured to allow for better viewing, monitoring and firing through the firing ports.

• 10 firing ports, spring-loaded, swing type

• Segregated raised grated floor panels designed to increase traction and to keep the surface clear of expended shells

• Exit points at the rear, right side, and top of the vehicle

• 2 roof mounted tow bars

• Run flat devices fitted in 4+1 vehicle tires

• NATO style jumper cable ports

HD Hydraulic Jack

3.5 Weights

The centre of gravity is raised after armoring which can affect the stability in cornering and braking. While suspension upgrades have been completed to offset this effect, care must be taken in handling the vehicle. It is recommended that drivers are trained to handle the vehicle with the increase in weight load and change in centre of gravity position.

4.0 Ballistic Specifications

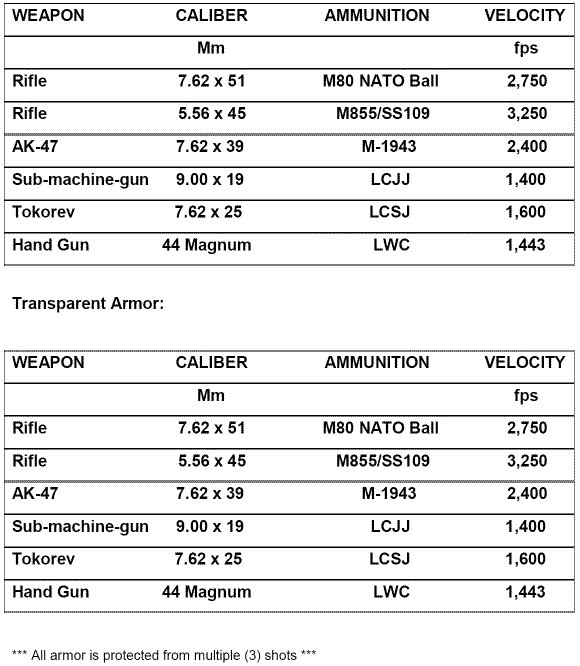

The following tables represent the ballistic protection levels for the above mentioned vehicle: (CEN level B6).

Opaque Armor: Armored passenger compartment roof and 4 sides only. Floor of passenger compartment is V-Hull design to mitigate blast and protected to shield against blasts.

Opaque Armor

Specification and photos are not contractual and are subject to verification upon inspection
