STEAM GENSET 34 MW





TYPE:

Genset

DESCRIPTION:

Steam Power Generator 34 MW

PRICE:

Upon Request

PACKING:

Ex-Works





steam power gEnerator 34 mw











34MW 60 Hz Steam Turbine with Biomass Boiler

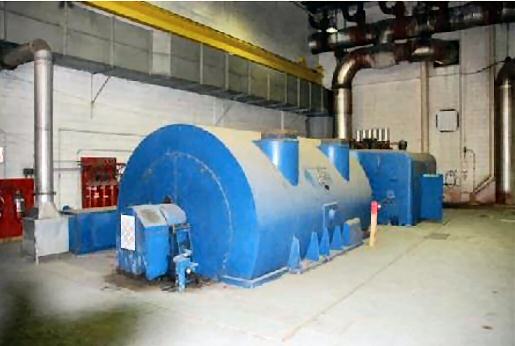

Turbine Generator

Manufacturer :                    General Electric.

Type :                                    Condensing

Model :                                  526L105

Power :                                 34,000 kW

Steam Pressure :               1000 psig (Design), 800 psig (Operating)

Steam Temperature :        8250F

Frequency :                         60 Hz.

Voltage :                               13,800 Volts,

Speed :                                 3600 rpm

Power Factor :                    90%

Amperage :                          1046/376 Amps

Year of Manufacture :        1985


Also included are: Woodward Governor, Lube Oil System, Condenser, AirEjector, Circulating Pumps, Switchgear, Controls, Drawings and Manuals.



Biomass Boiler

Manufacturer :                      By Combustion Engineering

Fuel :                                       Dual Fuel (Biomass)

Design Pressure :               1000 psig

Operating Pressure :          800 Psig

Capacity :                              500,000 lbs/hr.

Type :                                     Mu-X

Designation :                       Steam Generation (Co-Generation).

Classification :                    ASME Code and Bearing National Board Certification.


Scope of Supply

• Boiler with Immediate Boiler Structure and all Grating and Related Piping, Stairs, Flooring, Ceiling and Inner Supports and Conveying

• Travelling Grater and Accessories, Spare Parts and Exchanger

• Demineralizer Plant and Pumps, Motors, Valves and Controls

• Demineralizer Tank and Pumps, Stainless

• Hot Water Tanks and Pumps

• Steam Condensate Tank and Pumps

• Condensate Tank and Pumps

• Expansion Tank

• Soda Tank and Pumps

• Sulphuric Acid Tanks and Pumps

• Exhaust Fan and Motor

• ID Fans (No Motors)

• Chimney (Stack)

• Scrubber

• By-Pass Exhaust System to the Scrubber

• Air Pre-heater

• Economizer

• Bunker Burner with Heater, Pump and Tanks

• Four Each (4) Main I Beam Structures Less Siding

• Six Each (6) Hydraulic Stokers, (2) Hydraulic Systems, Including Conveyor from the Chip Bin (Not the Chip Bin Structure Itself)

Note: Option does not include: any Exterior Super-Structural Support Beams or Double Walled Siding, or Chip-Bin Structure.









Specification and photos are not contractual and are subject to verification upon inspection
