SISUS500





TYPE:

Truck

DESCRIPTION:

Sisu S500 Gravel Truck 40MT Payload

PRICE:

Upon Request

PACKING:

As is, Where is

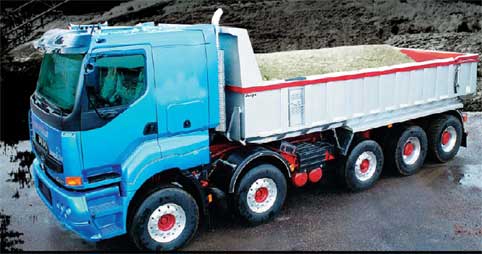

SISU S500 GRAVEL TRUCK 40MT PAYLOAD



















MOTOR

Power

Torque

Consumption

Oil

Oil change interval

Euro 3 - CAT C13

445 hp

2100 Nm

58 dm3 /100 km

39

10 000 -15 000 km

























Displays: Speed, rpm, oil pressure







air pressure, engine temperature etc.









Engine management: CAT Messenger (average consumption, instant consumption, range etc.)

with Onboard-Diagnostic.





















Axles











Manufacturer: Sisu Axles











Axle weights: first front 10 000t, second 10 000t, third 8000t, rear tandem 2 x 16 000t













Brakes











Disc brakes in front axles











Drumbrakes in rear axles











WABCO drumbrake in tandem axle









CAT enginebrake























Transmission











Fuller Eaton RTLO20198B









Oil 15 dm3











Oil change interval 60-80 000 km





















Oilpump: SUNFAB 107l/min

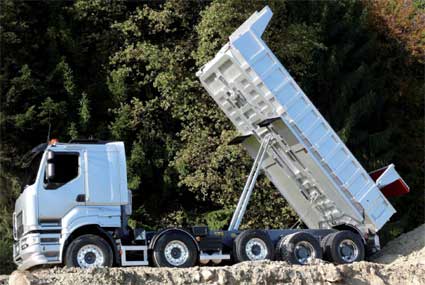

Hydraulic system SISU Front Tipping gear NUMMI ENC 137-219/90x8190 capacity 50 tons

Central griesing: SAFEMATIC





















Masses











Chassis own weight

13800kg









Bodu weight

3700kg









Empty total weight

17500kg









Payload

42500kg









Capacity

25 m3









Technical MAX GVW

60000kg









Tires











Size

13R22.5









Front

Michelin XZY







Rear

Michelin XDY



















Batteries











2x220Ah











Generator 80A











Cabin Electronics: Renault Trucks Diagnostic NG3







Engine Diagnostic: Engine Diagnostic CAT ET & Messenger

















Towing hook front: SISU 50mm - Bolt attached to chassis





Trailer towing equipment: VBG8500 with 40 Ton max capacity

















Air Filter: SISU











Oil filter: Caterpillar











Filter Diesel (Water separator): Caterpillar



















Manuals in English























Training for mechanics, Electronics etc. included







Travel cost to Finland and accommodation expenses for one week excluded















Ground clearance

285mm





















Delivery time will be confirmed when ordered.







The terms of payment: by L/C to be opened and confirmed before the production begins.













Service package











Critical Component Package:









C13 engine











Full transmission Eaton Fuller RTLO 20918B







Engine starter











Air compressor











First rear driving axle - complete









Second rear driving axle - complete









Rear spring package - complete









Front spring package - complete





















Service package after every 300 hours:







Oilfilter (24 units)











Diesel filter, (24)











Diesel filter, second (24)











Motor oil (39 l x 24)























Service package after every year:









Tipping hydraulics Oil filter (2)









Air filter (2)











Lufttrocknerpatron (2)























Specification and photos are not contractual and are subject to verification upon inspection
