SAMIL20





TYPE:

Truck

DESCRIPTION:

Samil 20 Truck 4x4 Remanufactured

PRICE:

Upon Request

PACKING:

Ex-Works

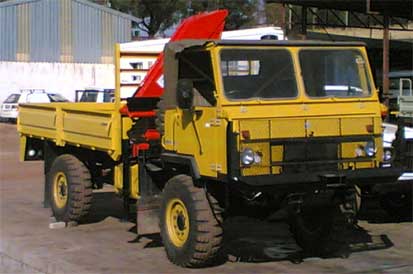

samil 20 truck 4x4 remanufactured



















The SAMIL 20 4x4 is the ultimate, off-road vehicle. With the "diff locks" on the transfer box and both axles, a short wheelbase and a ground clearance of 460mm, the Samil 20 can go where other 4x4's fear to tread.

Built for the South African Military, Samil trucks are robust, versatile proven.





12 Months warranty,(parts exchange warranty)

            Re-sprayed choice of colour, re-upholstered

RW Certificate & registration document

Chassis cab, 1 x Spare wheel/tyre

Tyres either new retreads or 70% + virgin cases




OPTIONAL EXTRAS



          Drop Tail Load Body (Samil 20)

          Metal frame with canvas cover

          Benches to seat 18 people

          New Tyres





PARTS PACKAGE



A comprehensive parts package is available at 12% of the value per vehicle,when vehicles are exported the parts package leaves  With the vehicle as one unit.





LEAD TIME



          We will put a dedicated production line in place for your order and can produce 1 vehicle per week with the option of increasing production to 3 vehicles every 2 weeks



FIELD SERVICE VEHICLE



A field service vehicle will be made available at final destination dedicated to do all necessary work as lised below on the vehicles on any Site at destination.

This service is available from the time the first vehicle is delivered and 1 year from the last vehicle been delivered .

Our field service vehicle is manned by 1 driver and 1 diesel mechanic with all expertise on our vehicles.



Available options:



Repairs on any warranty claims immediately at any site

Services on all vehicles when necessary at any site

(at clients cost)

Repairs to be done on any vehicles damaged during operation

or drivers negligence.

(at clients cost)

Driver training available on site.


All exporting ,freight and transport to be done by yourselfs or your agent.





The SAMIL 20 4x4 is the ultimate, off-road, vehicle.  With “diff locks “ on the transfer box and both axles,

a short wheelbase and a ground clearance of 460mm, the SAMIL 20 can go where other 4x4’s fear to tread.



Key Features of the SAMIL 20

•  Permanent 4-wheel drive
•  2 Ton off-road Payload
•  “Diff Lock” on Transfer Box & both Axles
•  460 mm Ground Clearance
•  Proven under combat conditions

Applications of the SAMIL 20

•  Service Truck (Construction / Mining)
•  Personnel Carrier (Military)
•  Fire Tender (Forestry)
•  Game Viewing / Over-Lander  (Tourism)
•  Armoured Personnel Carrier (Security)

Dimensions of the SAMIL 20

Overall Length
Overall Width
Overall Height
Wheelbase
Ground Clearance
5340 mm
2300 mm
2800 mm
2900 mm
460 mm


Masses of the SAMIL 20

Tare
GVM
D/T
Payload – Max.
Payload – Min. (Off-road)
4580 kg
7700 kg
14400 kg
3120 kg
2000 kg





SAMIL 20 Specifications

  Drive
     Permanent 4x4
  Engine
     Deutz F6L913
     6 cylinder in-line, air cooled
     6128 cc
     93Kw @ 2650 rpm
  Gearbox
     ZF S5-35
     5 Fwd Speeds (Synchro)
  Transfer Box
     ZF Z65
     High & Low ranges
     Differential Lock
  Axles
     Portal Type
     Differential Lock  (Ft & Rr).
  Wheels & Tyre
     Single wheel all-round
     14.50 x 20”
  Steering
     Power Assisted
  Brakes
     Dual hydraulic / air system
     Exhaust Brake
  Suspension
     Leaf Springs
     Shock absorbers front & rear







Specification and photos are not contractual and are subject to verification upon inspection
