SAMIL 100

TYPE:	Truck
DESCRIPTION:	Samil 100 Truck 6x6 With Crane
PRICE:	Upon Request
PACKING:	Ex-Works

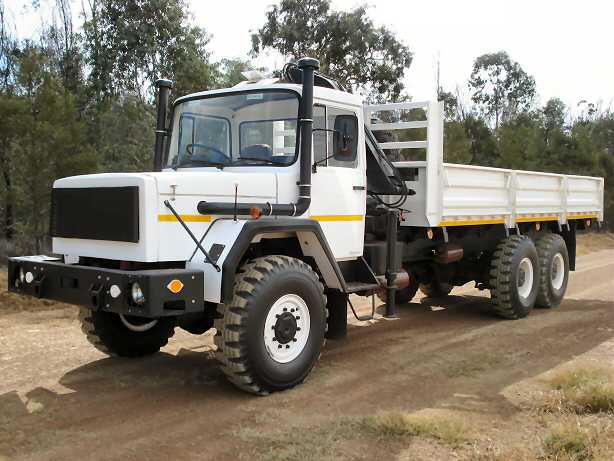

samil 100 truck 6x6 with crane

SAMIL 100 MK1 6x6 CHASSIS CAB REMANUFACTURED

3 Months / 20 000 kms warranty

Re-sprayed choice of colour, re-upholstered

Chassis cab, 1 x Spare wheel/tyre

Tyres either new retreads or 70% + virgin cases

OPTIONAL EXTRAS

Left Hand Drive Conversion

LOAD BODY

Drop Side Load Body (Samil 100)

CRANE

Hiab 650 6.5 Ton Metre Crane reconditioned like new fitted

Behind cab, including pump, PTO, Hydraulics and Controls also

Including out riggers.

TYRES

New Tyres (X7) 1400 X 20 M-Pattern

New Offroad Tyres (x7)

SERVICE KIT

Basic Service Kit Per Truck

Filters (air, oil and fuel) x 2 Services

Drive belts x 2 Services, Jack, Wheel spanner,

and tyre inflator

DOCUMENTATION

RW Certificate and Registration Documents
Export Documentation including Police Clearance

F178 and ITAC Documents

DELIVERY DATE

Delivery Dates to be Confirmed on Placement of Order

and Payment of Deposit

SAMIL 100 6x6

The SAMIL 100 6x6 is an excellent, off-road, load carrier. Capable of transporting a 10-ton payload almost anywhere, the SAMIL 100 is used in many applications throughout Southern & Eastern Africa.

Built for the South African MILitary, the SAMIL range of trucks are robust, versatile and proven.

Key Features of the SAMIL 100

• Permanent 6-wheel drive
• 10 Ton off-road Payload
• Large load capacity, 7m of chassis behind cab
• Proven under combat conditions

Applications of the SAMIL 100

• Drill Rig (Drilling)
• General Off-Road Freight (Transport)
• Water / Fuel Tanker (Construction / Mining)
• Crane Truck (All market sectors)
• Mine Proof Truck (De-mining)

Dimensions of the SAMIL 100
Overall Length Overall Width Overall Height Wheelbase Ground Clearance	9250 mm 2450 mm 3020 mm 5250/1380 mm 355 mm

Masses of the SAMIL 100
Tare GVM D/T Payload – Max. Payload – Min. (Off-road)	9135 kg 21000 kg 31000 kg 11865 kg 10000 kg

SAMIL 100 Specifications

Drive
     Permanent 6x6
Engine
     Deutz F10L 413F
     V10, air cooled
     15953 cc
     235 Kw @ 2500 rpm
     1020 Nm @ 1500 rpm
Gearbox
     ZF S6-90
     6 Fwd Speeds (Synchro)
Transfer Box
     ZF Z90
     High & Low ranges
     Differential Lock
Axles
     Differential Lock (Rr. bogey)
Wheels & Tyre
     Single wheel all-round
     1400 x 20”
Steering
     Power Assisted
Brakes
     Air duplex system
     Exhaust Brake
Suspension
     Leaf Springs
     Shock absorbers on front axle

Specification and photos are not contractual and are subject to verification upon inspection
