RIFLE AR-M1





TYPE:

Rifle

DESCRIPTION:

Assault Rifle AR-M1

PRICE:

Upon Request

PACKING:

Upon Request




ASSAULT RIFLE AR-M1

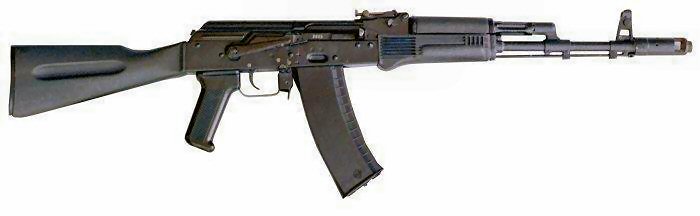

5.45x39 mm Assault Rifle AR-M1

and

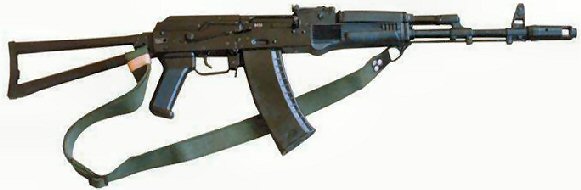

5.45x39 mm Assault rifle with Folding Butt AR-M1F





The assault rifles 5.45 mm AR-M1 and AR-M1F   belongs to the firearms whose action is based on the principle of conveying a part of the powder gases through a special port in the wall of the stationary barrel and their influence onto the bolt frame.
The barrel chamber is closed by turn of the bolt and engaging the firing stops in the receiver.
The weapons are fed from a 30 round arcuated staggered black polymer magazine.
The sigh consists of sectors marked for shooting at a distance of up to 1000 m.
The hammer-trigger mechanism has a hammer, which is activated by firing spring. This mechanism has a safety device-safety for setting from single to automatic fire mode as well as contrariwase. The safety simultaneously serves as well as a safety level preventing the accidental shoots. It is located on the right hand side of the receiver and is formed as a long pivoted lever. When set in the utmost upper position the trigger is blocked. In this position the safety serves two other functions:
         -  prevents contaminating of the receiver through the bolt carrier handle slot in the receiver cover;
         -  prevents from reloading the barrel chamber.
The butt, lower hand guard and the upper hand guard are made of highly strong and hardy black polymer.
The Assault Rifle design allows the attachment of
40x46mm ARSENAL UBGL-M6, 40mm UBGL or GP-25 Underbarrel Grenade Launchers, and firing with them.

Extras: sight rail for sighting device, blank fire attachment, knife – scissors






SPECIFICATIONS

Calibre, mm

5.56

Cartridge, mm

5.56 x 45

Fire mode

Single and Automatic

Rate of fire, rounds/min.

600

Practical rate:

-         Automatic fire, rounds/min.

-         Single fire, rounds/min.



Up to 100

Up to 40

Muzzle velocity, m/s:

-         Bullet type M-193

-         Bullet type SS-109



910

870

Sighting range, m

Up to 800

Magazine capacity, rounds

30

Barrel length, mm

415

Sight radius, mm

370

Overall length, mm

930

Weight, kg:

-         Rifle without magazine

-         Loaded magazine



3.62

0.61

System life, rounds

15000

Principle of function

Gas operated automatic rifle

ACCESSORIES

Cleaning rod

Magazines – 4 pcs.

Sling

Bag

Box with accessories (brush, drift, slush brush, screwdriver)

Oil can

PACKING

Number of rifles in one wooden case

10

Wooden case dimensions, mm

1380 x 503 x 387

Gross weight of the wooden case, kg

96

Volume of the wooden case, m³

0.2686













Specification and photos are not contractual and are subject to verification upon inspection
