Design Overview
The MR600 &
MR700 RIB are heavy duty high speed commercial river boats
with composite and Kevlar reinforced hulls Propulsion is
done by an outboard engines of 50HP (MR600) and 175HP
(MR700) which gives an excellent and very high performance,
shallow draft and unparalleled manoeuvrability.

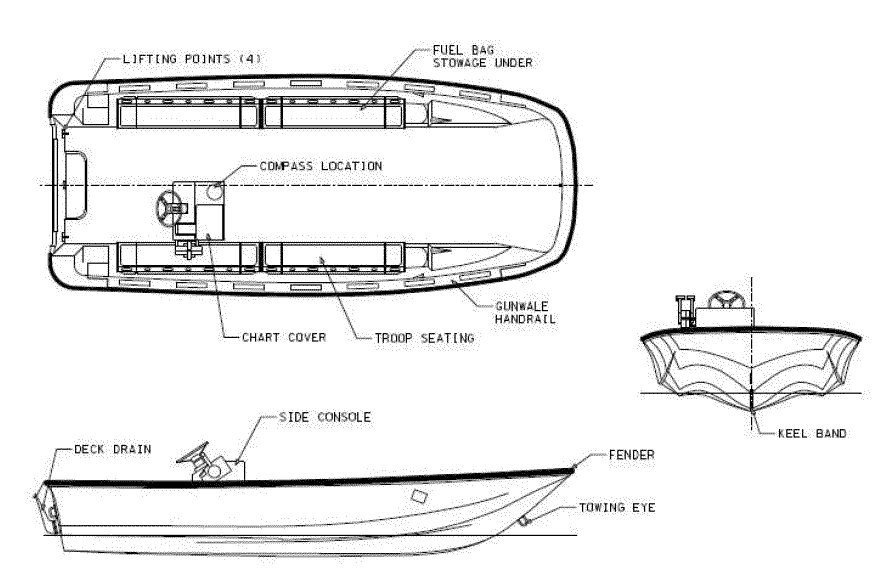

The craft layout
features a center console and offers place for 6 people
including crew.
It has an big
reinforced cargo deck to transport different type of goods,
passengers and or equipment.
All fasteners
throughout the whole craft are of A4 high grade stainless
steel and feature nylon isolation washers between dissimilar
metals to avoid galvanic corrosion.
Design Approval
Craft
are well proven with craft in commercial service world-wide.
They are built
in accordance with The Lloyds register guidelines for
professional patrol boats.
Load bearing
structures are designed with the aid of computer simulated
finite element analysis to ensure sufficient strength and
tested where applicable.
Hull & Deck
The hull is
moulded as unitary mouldings manufactured from a
comprehensive reinforced laminated composite structure of
chopped strand mat and stitched unidirectional mat
impregnated throughout with polyester resin.
The complete
hull inner structure is made of very thick laminated GRP
with Kevlar reinforcements.
Application is
by hand strictly in accordance with design weights.
Internally the
hull is reinforced with a complex system of longitudinal and
transverse thick reinforced GRP laminated keels and
bulkheads with intermediate deck beams to support and tie
together the hull and deck.
The result is an
immensely strong structure with excellent weight properties.
Each of the hull
voids created by the internal hull structure is limbered to
a single bilge area at the transom on the centreline.
The hull, deck
and internal structure are suitably reinforced in way of
samson posts, through deck fittings and lift points.
Fuel
One (1), heavy
duty, baffled, fuel tank of 75 (MR600) and 200 litre (MR700)
capacity are located under the passengers seats.
Command Console
Heavy duty GRP
fabricated Console laminated to the deck Includes dedicated
vented battery stowage, electrics locker and small item
stowage.
Windscreen
fitted (clear colour unless requested otherwise).
Seating
There is one GRP
seat for the driver; The rest of the passenger is provided
with comfortable benches made of GRP with stowage lockers
within.
Steering
Heavy duty
hydraulic system consisting of steering wheel, helm pump,
steering cylinders, intermediate hoses and tie bars.
Engine Instruments
Standard
manufacturer’s instruments mounted behind a double glazed
waterproof (IP67) instrument panel.
Standard engine
manufacturer’s
audible and visual alarms are fitted to alert the crew of
engine running and battery charging irregularities.
Electrics
Fully waterproof
(IP65) electrical system; 12V DC fully insulated two wire
system fitted with single pole thermal breakers.
Batteries
One (1) 12 volt
maintenance free GEL batteries.
Control Panel
Fully waterproof
(IP67) switch panel featuring toggle switches and a visual
warning alarm for electric bilge operation.
Navigation lights
Stern, steaming,
port and starboard navigation lights are fitted.
12V DC Power Socket
Waterproof 12V
DC power socket to power the hand held searchlight or any
similar 12V DC devices is mounted on the console.
Navigation Equipment
Compass:
Offshore 105
Deck Drains
The deck
features deck freeing drains of oversized dimensions for
rapid removal of any water shipped on deck. Craft is of
‘free-draining’ design when at rest and underway.
Mooring & Towing Eyes
The hull is
fitted with one bow eye and two transom eyes which are
suitable for towing and mooring duties.
Stowage
Stowage for crew
personal items is provided in the console locker and in
under seat lockers.
Fire Extinguishers
Two (2) 3 kg ABC
dry powder portable fire extinguisher is supplied with
secure stowage under the benches for general use.
Lifting Points
The craft is
equipped with three (3) lifting eyes.
Finishes
Aluminium and
stainless steel fabrications are powder coated where
applicable. Composite structures are self coloured with
pigmented gel coat.
Colour
Military grey
hull, deck & topsides. Other colours available upon request.
Manuals
Craft is
supplied with two (2) hard copies and one (1) electronic
copy (on CD-Rom) of an Operation Manual.
Warranty
Twelve (12)
months from delivery.
Included Options:
Warning sign
Forward Movable
floodlight
Siren with
loudspeaker
6 SOLAS Life
jackets
1 floattube
40m of 24mm
ropes
1 Bilge pump
Boat trailer
Spareparts
