OFFER#

RHD BUS 18+1

TYPE:	Bus
DESCRIPTION:	RHD Buses 18 Pax + 1
PRICE:	Upon Request
PACKING:	Ex-Depot

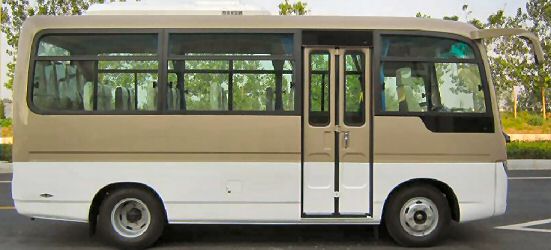

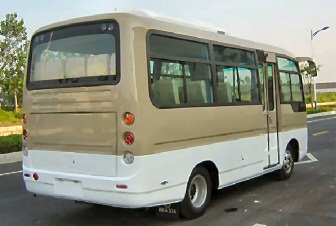

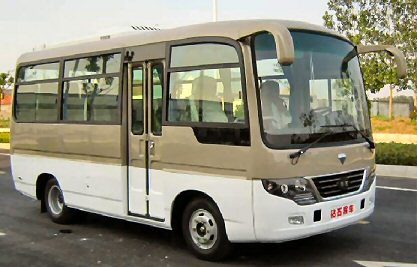

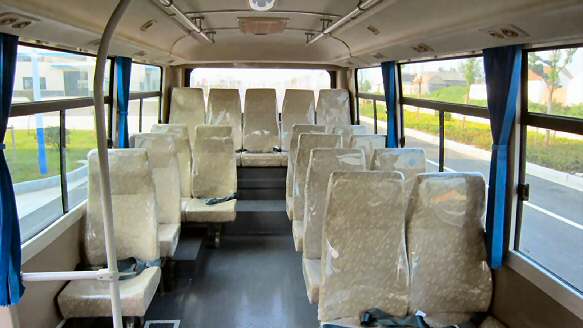

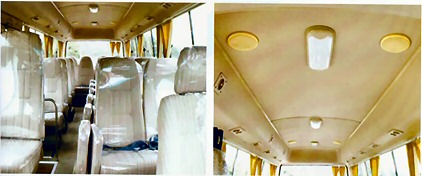

rhd buses 18 pax + 1 driver

From new manufacture


Specifications:
Engine	Model	4D32-11
	Emission Standard	EURO 2
	Type	4 cylinders in line, 4 strokes, water-cooling
		inter-cooling turbo diesel engine
	Bore×Stroke	98×105
	Displacement	3,168
	Max.Power	93/3200
	Max.Torque	320/1900-2100
Rear Axle	Type	Reduction final drive is hypoid spiral bevel gear
	Final Reduction Ratio	5,375
Transmission		LC5T35
		Five speed, forward gear with synchromesh unit, mechanical
Clutch		Single, dry diaphragm spring, remote hydraulic control
Rim		7.00R16
Tire		Radial ply tyre 7.00R16
A/C		Imported compressor, environment-protected cooling capacity 12000kal/h
Dimensions		6990×2025×2615
Wheelbase		3535
Fron/Rear Tread		1665/1485
Minimum Turning Diameter		≤17
Maximum Gradability		≥25%
Maximum Speed		≥120
Fuel Consumption/100km		≤12.5
Kurb Weight		3580
Maximum Total Weight		5910
Ground Distance of First Step		≤400（Kurb Weight）
Seats		17~29
Aisle Width of Seats (mm)		≥720
Fuel Tank Capacity		90
Steering		RHD

15 seats van city bus minibus RHD

Body color:Toyota White

Engine model GW491QE,Inline 4-cylinder,water-cooled

Vehicle type	M2
Body color	Toyota White
Engine model	GW491QE,Inline 4-cylinder,water-cooled, Muiti-point
Fuel	Gasoline
Emission standard	Euro III,GB 1835.2-2001
Displacement/Rated Rower	2237cc/78kw
Max.Torque(N.m/rpm)	190/2400-2800
Min.fuel consumption(g/kw.h)	<= 250

Steering gear form	Power Steering ,RHD
Wheel track(front/rear)	1450/1430
Wheel and tyre size	195/R14C
Tyre number	5
Wheel base(mm)	2890
Axle number	2
Overall dimention(mm)	*526016902240*
Gross vehicle weight	2850
Curb weight	1800
Rated persons	14+1
Max speed	120
Cluth	Single, dry, mebrane
Suspession(F/R)	Independent front suspension / rear leafspring
Brake(F/R)	Hydraulic brake /central drum
A/C	1 in front
40HQ	2 UNITS

High roof, Right hand drive

FJ 6600 Mini Bus

Complete bus configuration		Engine configuration
Length (mm)	5990	Engine model	YZ4102ZLQ
Width (mm)	2020
Height (mm)	2700	Engine location	Front mounted
Complete bus mass (kg)	3300	Engine type	Vertical in line, water cooling, pressurized, mid cooling
Max loading mass (kg)	4490	Rated power (Kw/Ps)	70/95
Seats number(person)	17(12-19)	Fuel type	Diesel
Top speed (km/h)	90	Emission standard	Euro 2
Basic configuration
Chassis	6 meters bus chassis
Gearbox	5-speed gearbox
Front axle	Two ends fist type section, 2T
Rear axle	Integral, single-stage deceleration,3.4T
Suspension	Multiple piece steel plate spring
Steering	Mechanical steering, right hand drive (RHD)
Brake	Dual circuit air brake
Fuel tank	90L
Tyre	6.50-16 tyre
Body structure	Rectangular steel pipe welding
Interior trimming	Molding interior trimming
Bus door	Pneumatic folding middle passenger door
Bus window	Sliding side windows
Windshield	Rubber sealed front windshield
Rearview system	Manual rearview mirror
Audio-video system	AM/FM cassette recorder
Luggage rack	Without luggage rack
Rain wiper	Dual direction rain wiper
Sun shading curtain	Front half-breadth curtain
Seats	High backrest seats
Lights	Combined front and rear lights
Meters and dashboard	Combined dashboard
Paint	Domestic paint
Others	Anti-skid floor leather

Specification and photos are not contractual and are subject to verification upon inspection
