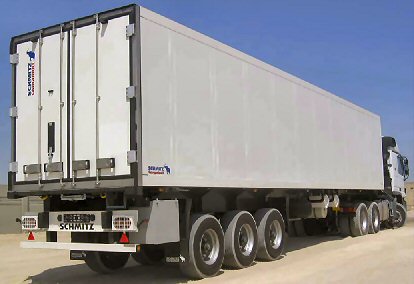

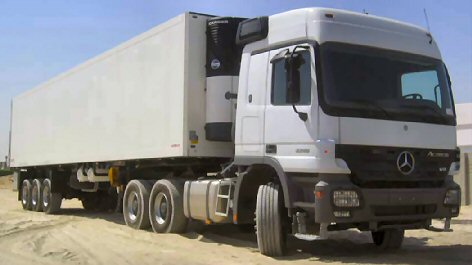

SCHMITZ 3-Axle Ferroplast Refrigeration Semi-Trailer

Type SKO 24/L - 13.4 FP 80/80 PLUS-2 FG

T E C H N I C A L S P E C I F I C A T I O N

3-AXLE FERROPLAST SEMI-TRAILER for the transport of deep frozen goods

TYPE: SKO 24/L – 13.4 FP 80/80 PLUS-2 FG

Weights and Dimensions

Internal length ap. 13285 mm (43’7”) - Gross weight (plated/design) ap. 43000 kg (94800 lb)

Internal width ap. 2420 mm (7’11 ¼”) - Payload (plated/design) ap. 34300 kg (75600 lb)

Internal height ap. 2250 mm (7’4 ½”) - Bogie load (plated/design) ap. 27000 kg (59500 lb)

Total height (unladen) ap. 4020 mm (13’2 ¼”) - Kin ping load (plated/design) ap. 16000 kg (35250 lb)

Overall length ap. 13380 mm (43’10 ¾”) - Total tare weight +/- 4% 8700 kg (19200 lb)

Overall trailer width ap. 2600 mm (8’6 ¼”) - 5th wheel height (unladen) ap. 1360 - 1480 mm

ap. (4’5 ½”- 4’10 ¼”)

Tyre size 385/65R22.5

Chassis

Registration/Certification

• International custom seal (TIR) for body with rear door, without TIR certificate

Chassis

• Chassis in PLUS-ISO construction

• Rear underrun bar in heavy duty, reinforced execution

• Single bolted 3 ½” king pin

• 3 units heavy duty spare wheel carriers, 2 x for semi trailer & 1 x for truck tractor with tyres size: 315/80 R 22.5 or alternative 12.00 R 24

Axles

• Axle BPW with drum brakes in heavy duty execution, incl. ABS, AGS

• 10 stud wheel spigot mounting according to DIN 74 361 (part 3)

Lift axle

• First axle designed as lifting axle, with auto drop facility

Suspension

• Air-suspension Type MRH-U35/AC245 with steel piston, 350 mm (13’ ¾”) bellow

Brake system

• Dual line brake system according to RR EG 71/320

• EBS 2S/2Mm electronic braking system incl. RSP (Rollover stability program)

• EBS power supply by ISO 7638 socket + CAN-bus

• Spring brake air chambers

• Raise-lower valve

• 2 wheel chocks with holders

LANDING GEARS

• Mechanical operation with extra large universal base plates, special wide sand plates, total capacity 25 tons (55100 lb)

Operation from one side for uncoupling of the loaded semi-trailer

• Handle can be locked during transport

Light system

• Light system 24 V. acc.to RU75/756/EWG with 2 x 3 chamber lights

• Rear lamp panel with colour: WHITE RAL9010

• 2 x 7-pin connector sockets: 1 x DIN ISO 1185 & 1 x parking position

• LED side marker lights with reflectors

• 2 x red rear top LED marker lights, 4 x White front LED marker lights/reflectors

• 1 pair of side tracking lights, positioned at the rear

Wheels and tyres

• Tyre make: European first class

• 8 x 385/65R22.5 (11.75x22.5) (2 spare wheels included)

• Steel rims

Spray suppression

• Vertical plastic mudguards

• Mud flaps

Further chassis equipment

• Access step at rear, right hand side

• 2 vertical rubber block buffer mounted at rear of chassis

• Coupling connectors and sockets mounted on front bulkhead, low specification

• 2 rear corner rubber buffer, 1 rear rubber buffer across rear width

Bodywork

• PU foam panel, free of thermal bridges - sealed against vapour diffusion

• Inner skin is 0.6mm (0.02”) PVC coated steel scuff proof and load safe

Front bulkhead/Roof/Side walls

• Front wall FERROPLAST 80 mm (3 ¼”) with reinforcement for refrigeration unit

• Side walls FERROPLAST 80 mm (3 ¼”)

• Roof FP140 – 140 mm (5 ½ ”) thickness panel

• 4 ALU circulation profiles on the front bulkhead

• 2 ventilation flaps, one at front and one at rear

Rear closure

• Double rear door FP80,3 anodised ALU hinges with double s/s turn.bar locks+large s/s handle/door

• Rear frame is stainless steel with bead blasted finish

• 300mm (11 ¾”) depth, anodised ALU wear-strip fitted at base of each rear door

Floor

• Chequered ALU floor

• 300mm ALU (11 ¾ ”) kick strip to front and both sides welded to floor pan

Further body equipment

• 4 ceiling lights recessed switch at the rear of rear lamp panel

• Hinge protection rubber buffers fitted vertically to lower part of the rear frame, incl. access handle

Refrigeration unit

• Fridge unit aperture cut out and bolt holes drilled in front bulkhead

• Supply &fitting CARRIER ULTRA NDA wm ss with battery

• Steel fuel tank 190 litre (50 US gallons)

• Fridge unit piped wired and commissioned

Load securing installation

• Row(s) recessed el. plated univ.load restraint hole and slotted edge, without side door

• 2 x Telescopic supporting beam ALU

• Special securing installation for telescopic supporting beams

Toolbox

• One tool box, made of steel plates for equipment storage,

Water tank

• Two drinking water tank, with tap, capacity: 30 litre ea. (8 gal), total app. 60 litre (16 US GAL)

Painting/Finishing

• One colour body

• Roof finished in white RAL 9010

• Spare wheel carrier: powder coated black RAL 9005

• One colour chassis

• Hubs: Factory finished (KTL)

• Wheel rims: Factory finish (Silver)

• Body finished in white RAL 9010

• Landing legs: Factory finish - Jet Black

• Wheel nuts: Unpainted

Attachment no. 5

Painting/Finish details

• Chassis 7350 GRANIT

• Hubs KTL 12 KTL-COATED - JET BLACK

• Wheels RAL 9006 White aluminium

• Body RAL 9010 Pure white

• Roof RAL 9010 Pure white
