GENERAL   EQUIPMENT   INC.

No.

Designation

Number of part

Quantity

Installation component

Note

Designation

Number of part

1

Bullet-proof tyre installation

08P--3106

1

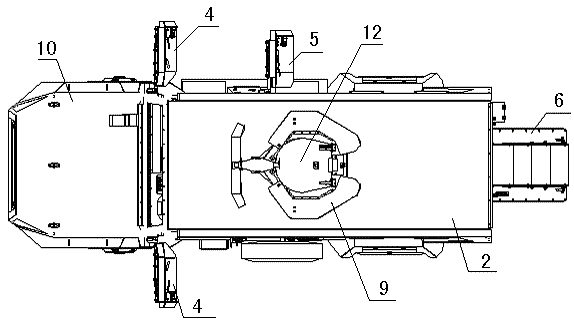

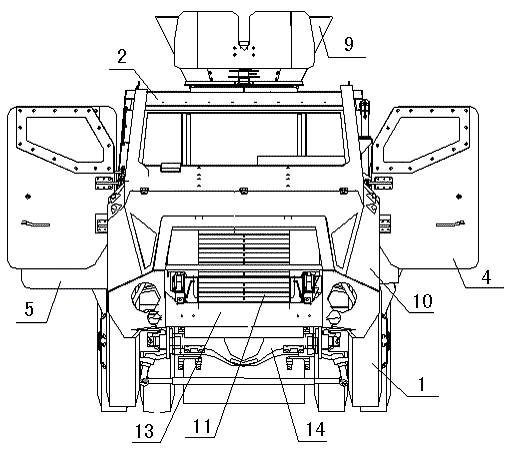

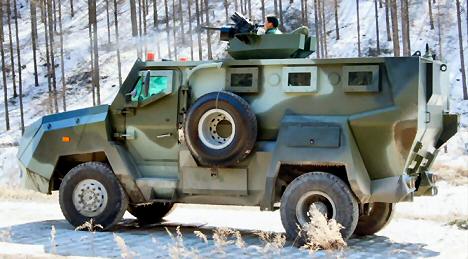

Vehicle assembly

01

01-1

2

Main protection cabin assembly

08P--8500

1

01-2

3

Battery installation assembly

08P--3703

1

01-3

4

Cabin’s front door assembly(left,right)

08P--8507

1

01-4

5

Cabin’s middle door assembly

08P--8509

1

01-5

6

Rear door assembly

08P--8510

1

01-6

7

Cover board of body’s window assembly

08P--8509200

1

01-7

8

Shooting hole subassembly

08P--8509300

1

01-8

9

Turret assembly(option)

08P--8512

1

01-9

10

Power cabin assembly

08P--5000

1

01-10

11

Bullet-proof persiennes

08P--5100

1

01-11

12

Cover of cabin ceiling

08P--5000

1

01-12

13

Front bumper assembly

08P--2803

1

01-13

14

Off-road truck chassis

ZZ2167M3827A1R

1

01-14

General Data

Total Combat Weight

16000kg

Effective Load

2800kg

Kerb Weight

13200kg..

Overall Dimension(mm)

6990x2495(without spare tyre)x2720(without turret)

Driver +Crews

2+11

Driver Seat

Equipped with triple point typr safety belt

Traction Equipment

Traction hook behind

Tyre

4+1;ZQ3106 bulletproof tyre

Crew Door

Three side doors and one hydraulic operated tail-gate

Shooting Hole

4(each side 2)

Driving Type

Left

Mobility Performance

Fording Depth

>400mm

Max. Cruising Range

600km(paved way)

Fuel Wastage

34L/100km

Fuel Tank Capability

206L

Max. Cruising Speed

90km/h

Acceleration Performance

0-80km/h≤47s 30-80km/h≤34s

Ritiopower

≥16.3PS/t

Max.Longitudinal Gradeability

≥31°

Max.Transverse Gradeability

≥17°

Vertical Obstacle Clearance

≥400mm

Min.Ground Clearance

320mm

Approach Angle

≥26°

Departure Angle

≥32°

Min.Turning Diameter

<15m

Brake Distance

<10m(30km/h)

Protection Performance

Bulletproof Performance

Front resist 100m distance 12.7mm armor ball

Side and rear resist 100m distance 7.62mm armor ball

Top resist 100m distance 7.62mm ball

Anti-mine Performance

Resist 3.5kg TNT under abdomen;

Defend 7kg TNT under wheel

Camouflage

Body resist visible camouflage

Communication System

Vehicle-interphone MOTOROLA GM 3188

Engine performance and parameters

Type

WD615.87

Engine Power

≥191kw

Engine maximum torque

1160Nm

Maximum torque/speed

1100-1600r/min

Cylinder number

6

Type

(Four stroke,water cooling,in-line,direct injection,dry cylinder liner)

Bore/stroke

126/130mm

Displacement

9.726L

Compression ratio

17:1

Suction style

Inter-cooling

Piston mean speed

9.53m/s

Firing order

1-5-3-6-2-4

Cold valve clearance

Intake 0.3mm; exhaust0.4mm

Thermostat opening temperature

80℃ or 71℃

Starting mode

Electric start

Lubricating mode

Pressure-feed lubrication

Lubricating oil capacity(oil pan)

23L

Oil pressure

350-550 kPa

Idle engine oil pressure

≥100 kPa

Turbine rear temperature

≤550℃

Boundary dimension

Length1534 width675 height965

Others

Alarm,Light,Siren

Ballistic Resistant Glazing

Front resist 12.7mm armor ball

Side and rear CEN LEVEL B7 7.62x63mmAP

Rearview

Equipped with two rearview periscopes, one day and night camera with LCD monitor

Gearbox Model

FULLER9JS119;9forward+1reverse

Steering System

Hydraulic pressure power 8098

Fuel System

Bulletproof fuel tank

Cooling System

Water cooling

Cooling Capability of AC

8000w

Battery

2x12V165AH

Alternator

28V/1500W

Starter

5.4kw

Driving Type

4x4

Torque divider

ZQC1200(with differential mechanism )

Front axle

STEYR front steering axle; speed ratio 5.73

Rear axle

STEYR drive axle; with differential between the wheel, speed ratio 5.73

Air compressor

Double cylinder water cooling

Intercooler

Flat tube corrugated belt,air cooler

Turbocharger

HX50/S3A

Oil filter

Rotary type paper filter,double tube parallel

Steering gear

ZF8098

Clutch

Air assistant, GF420

Brake system

Double crane brake, spring actuated and air cut-off parking brake,engine exhaust auxiliary brake

Option

Driving Type

Right

Crew Door

Two side doors and one hydraulic operated tail-gate

Shooting Hole

6(each side 2,rear 2)

Drivers +Crews

2+14
