MOBILE COMMAND VEHICLE





TYPE:

Vehicle

DESCRIPTION:

Mobile Command & Control Vehicle

PRICE:

Upon Request

PACKING:

Ex Works






mobile command & control vehicle



From New Manufacture



MCCV-XL

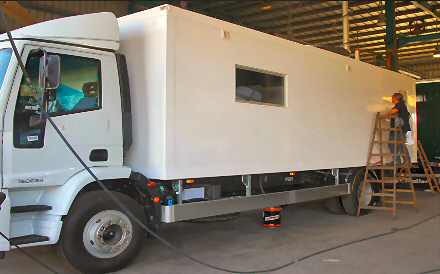

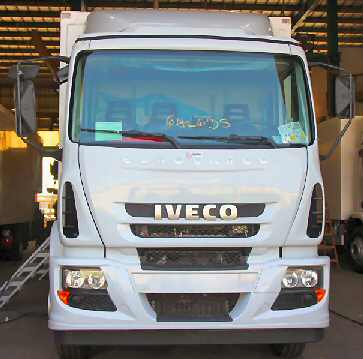

Iveco 15024H Euro Cargo, 15 Ton, 240 HP, Euro 3, VN Iveco configuration.

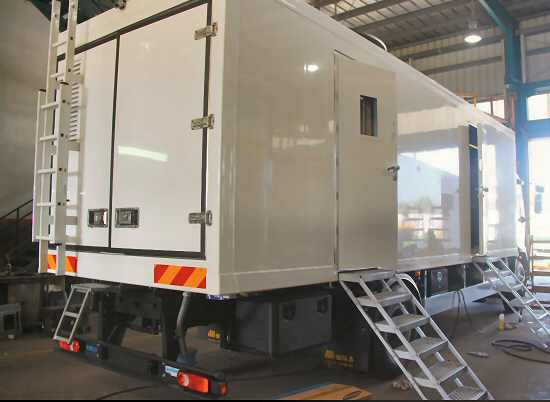

Mobile Command Control Vehicle – MCCV-XL


General specifications

- 15 Ton, 240HP, overall length ~ 10 m

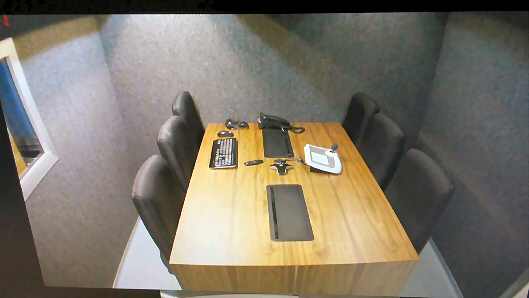

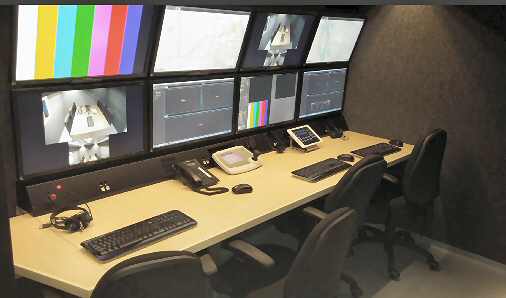

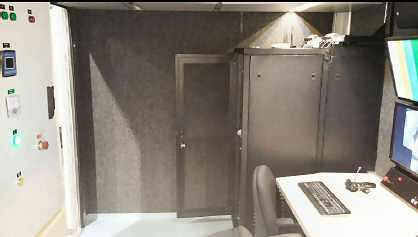

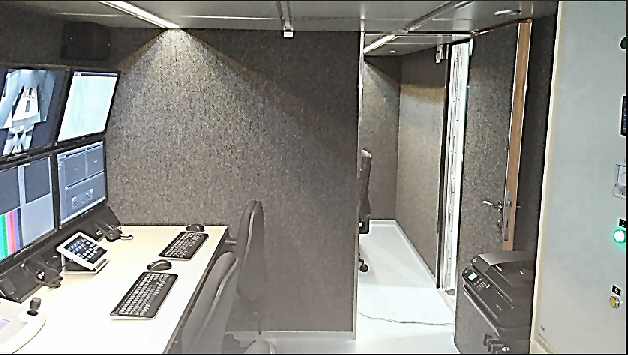

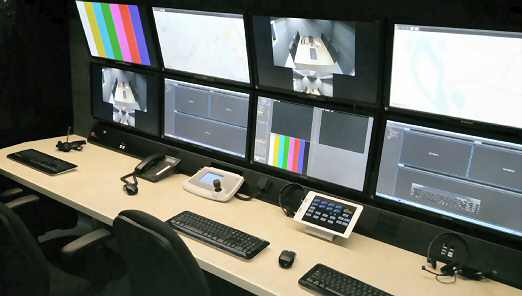

- 3 separate chambers, machine room, 4 operator command & control room and 6 commander conference room, total space > 18 sq. meter

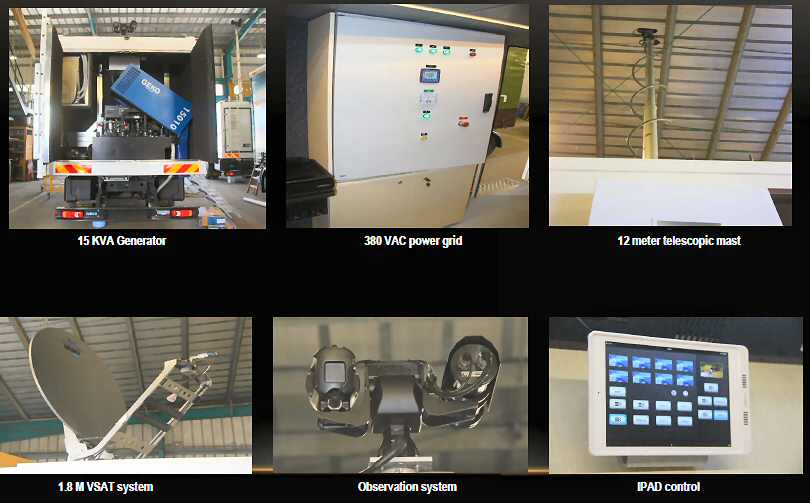

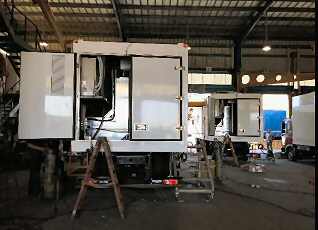

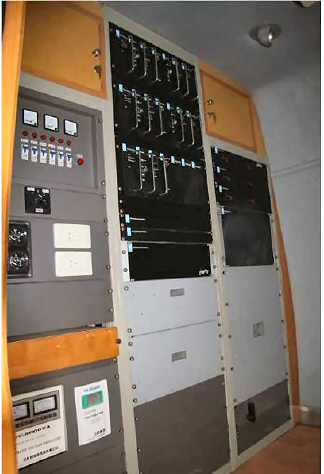

- 15KVA generator onboard, 2 external power connectors, 6KVA AC UPS, 1000W DC UPS
- Air condition > 25,000 BTU, separate and temperature controlled unit for each room.
- 12 meter pneumatic telescopic mast, carrying observation systems and antennas.

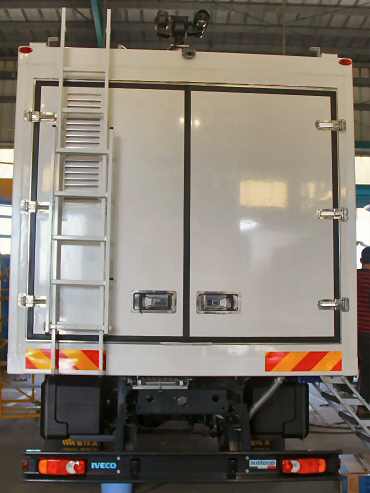

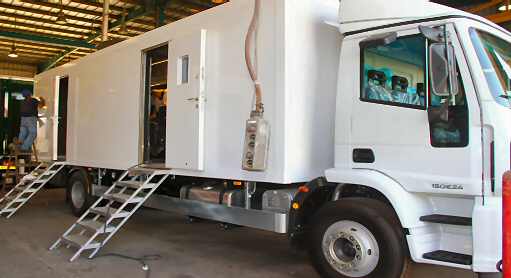

- 3 foldable steps with removable handles.

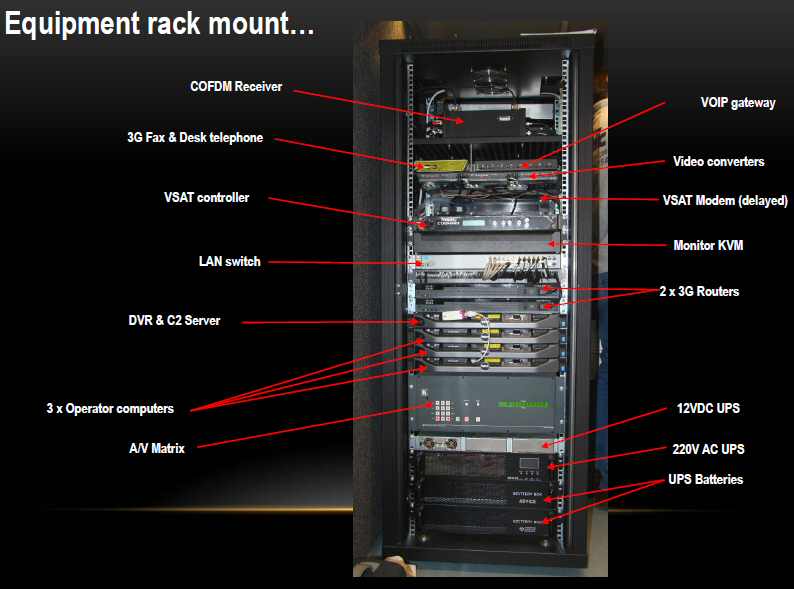

- VSAT satellite on the pause system, 1.8 M dish, auto search, lock and track, for data and video backhauling.
- 10 lines of 3G for data backhauling, fax, video and telephony.
- 2 UHF mobile radio system with 6 portable radios, trunk and direct mode, integrated to VOIP system.
- COFDM long range video and audio transmission system between vehicles to field units.

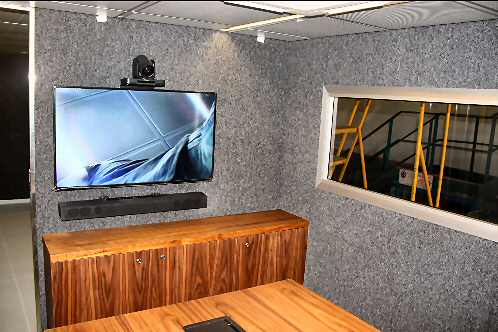

- Video conference system to Head Quarter.

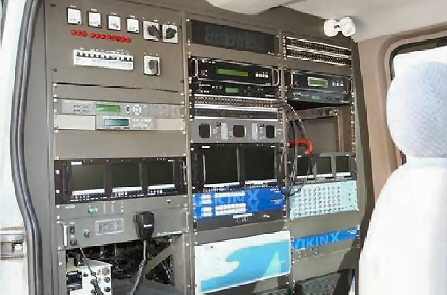

- Audio & Video matrix system controlled from operators IPAD stations.
- Day & Thermal observation system.
- Command and control software, GIS, Video & Audio recording, Voice over IP bridging and routing, dispatcher, full control over vehicle systems.
- Video Drone, autonomous flight, quadcopter with CCD and Thermal camera, 2 Km range.

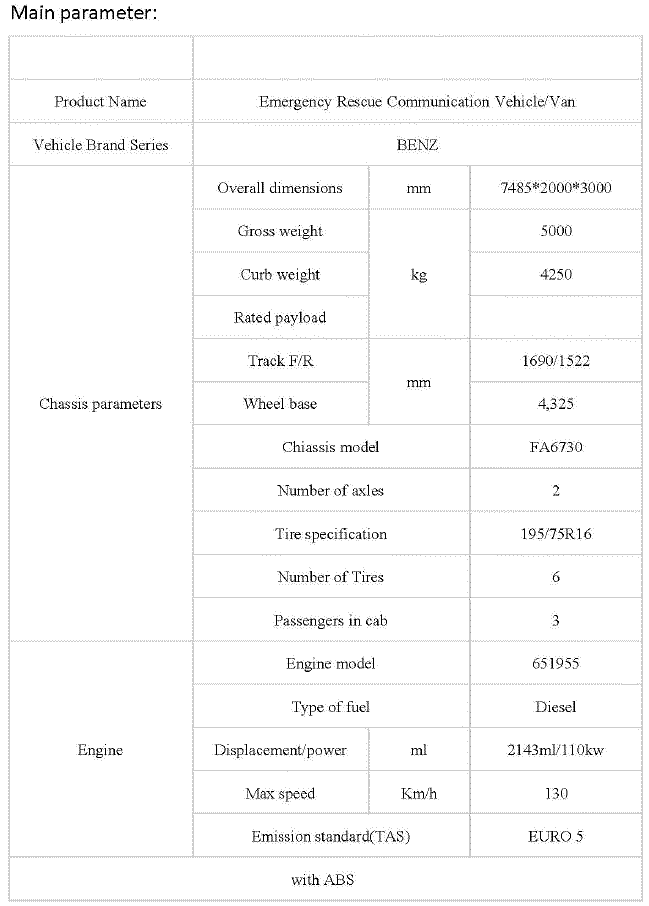

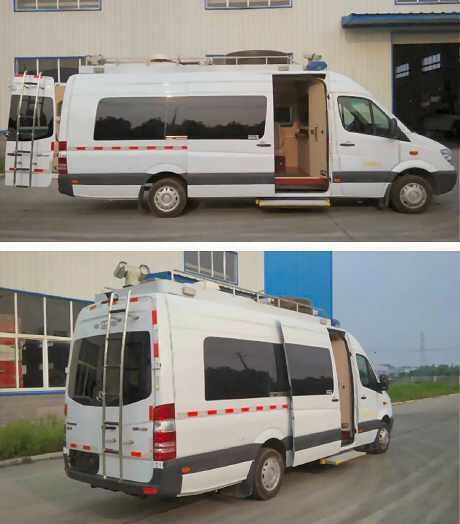

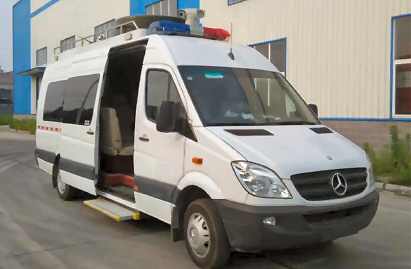

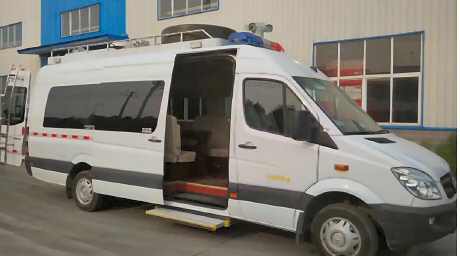

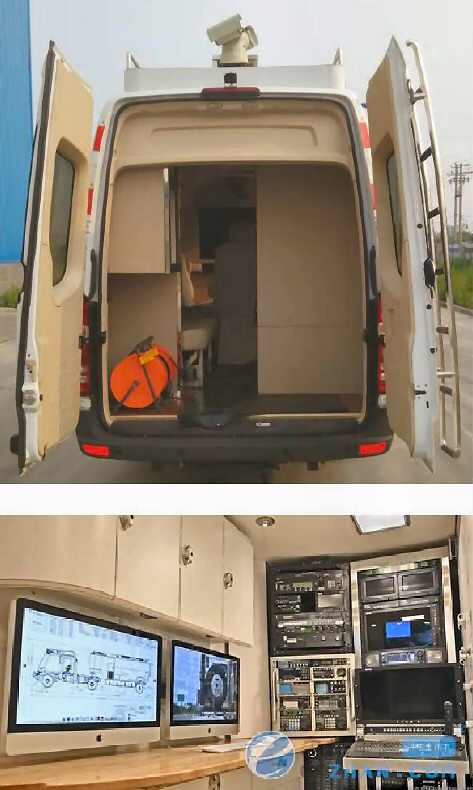

EMERGENCY  RESCUE COMMUNICATION

COMMAND VEHICLE RESCUE















Specification and photos are not contractual and are subject to verification upon inspection
