MK81 AC BOMB





TYPE:

Bomb

DESCRIPTION:

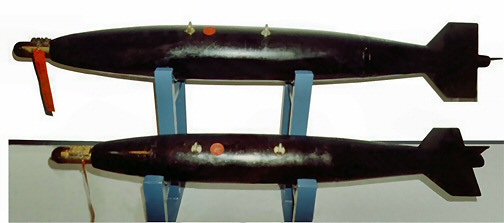

MK81 Aircraft Bomb

PRICE:

Upon Request

PACKING:

As is, Where is





mk81 aircraft Bomb



From New manufacture




    Principal Data Mk81


    Length 1252 mm
    Length (assembled) 1940 mm
    Diameter 225 mm
    Mass Total (nominal) 127 Kg
    Mass Explosive (nominal) 45 Kg Tritonal or H6 or TNT
    Mass Warhead (nominal) 81 Kg
    Centre of Gravity (from nose) 960 mm
    Suspension Lugs 14 inch (355.6 mm) Standard NATO
    Packing / Packaging 6 ea warheads / steel crate + 6 ea CFA / st.cr
    Conical Fin Assembly (CFA) MAU-94/B
    CFA Span 320 mm
    CFA Cord 269 mm
    CFA Mass 10 Kg


    Ballistic Performance & Launch Parameters Mk81


    Air Speed 150 KTAS to 600 KTAS
    Altitude 15000 ft
    G Load 1.2g to 5g
    Angle Dive 45 deg
    Angle Toss 60 deg
    Roll 165 deg/s
    Range Slant (max) 4750 m


    Lethality Effects Mk81 (depend on HE charge type)



    FRAGMENTATION   CRATER
    Grains 3 to 300 Diameter 1.85 m to 4.6 m
    Velocity 670 m/s to 2286 m/s Depth 0.61 m to 3.67 m
    BLAST   PENETRATION
    Pressure at 50 ft (16 m) 10 psi Steel Armor Plate 25 mm
    Pressure at 100 ft (31 m) 3.5 psi Concrete 3000 psi (beton) 397 mm




Specification and photos are not contractual and are subject to verification upon inspection
