MINIBUS GDQ6480





TYPE:

Minibus

DESCRIPTION:

Minibus GDQ6480

PRICE:

Upon Request

PACKING:

Ex-Works

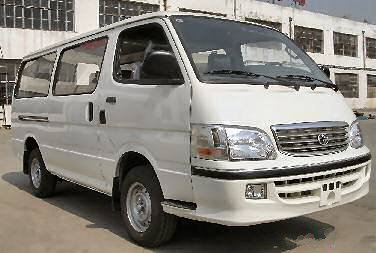

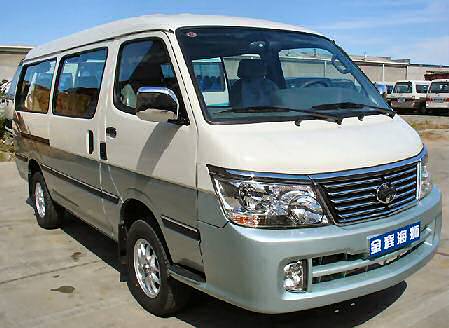

MINIBUS GDQ6480







Style I                                                                           Style II

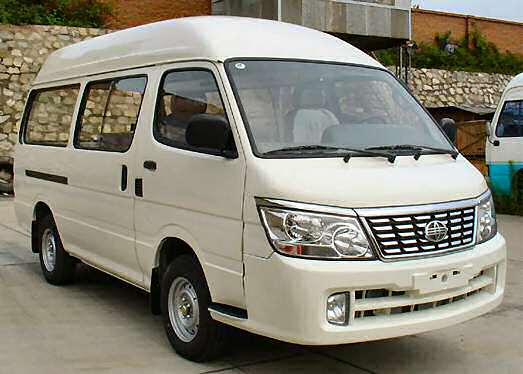

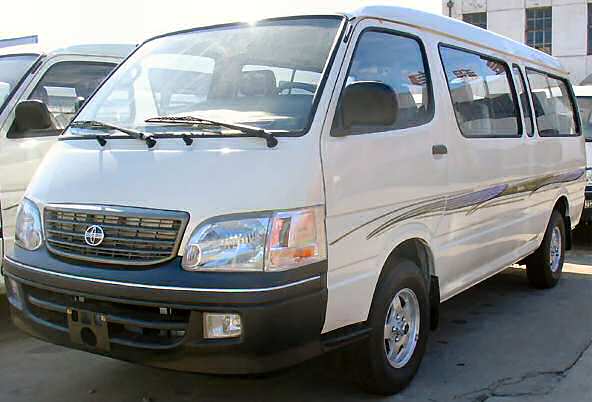

High Roof                                                                                                             Long Body 15 Seats

















DIMENSION & WEIGHT



Roof type

L x W x H

Overall dimension

(mm)

Standard roof

4920x1710x1930

Semi-high roof

4920x1710x2025

High roof

4920x1710x2225

The box of Cargo Van dimension (mm)

Standard roof

2900x1500x1340

Semi-high roof

2900x1500x1400

High roof

2900x1500x1630

Wheel base (mm)

2600

Tread, front/rear (mm)

1430/1430

Ground clearance (mm)

165

Gross vehicle weight (kg)

Gasoline

2520

Diesel

2450

Curb weight (kg)

Gasoline

1540

Diesel

1540

Seating capacity (person)

2-3

Payload (kg)

Gasoline

850

Diesel

780

Fuel tank(L)

Gasoline

70

Diesel

70

Tires

185R14C



ENGINE

Model

491Q-ME (Gasoline)

486ZQB (Diesel)

Type

4-cylinder, water-cooled, EFI, Gasoline  4

Vertical, in-line, forced water cooling, pressure charging, four stroke, direct injection combustion chamber

Piston displacement (cc)

2237

2164

Compression ratio

8.8:1

17.5:1

Max power

102hp/4600rpm

78hp/3600rpm

Max torque

193N.m/2000-2600rpm

150N.m/2200rpm

Fuel consumption(L/100km)

9.8

6.9

Emission

Euro II

Euro II

SYSTEM系统

Steering system

Rack and Pinion

Suspension system

Front

Independent Suspension by double beams with torsion bar spring

Rear

Leaf springs

Braking system

Front: disc type   Rear: drums type  Hydraulic braking system with vacuum booster

Gearbox

5 speed manual 5

Doors

4





Specification and photos are not contractual and are subject to verification upon inspection
