GENERAL   EQUIPMENT   INC.

A、Dimension

1

mm：

wheel base

3665

2

m：

turning diameter

13.6

3

mm:

Dimension of Ambulance body

5910 x1993x 2800

4

mm：

Dimension of patient cabin

3200 x 1800 x 1900

5

kg：

Full load weight

3500

6

kg:

curb weight

2680

7

mm：  minimum ground clearance

215

 Engine

8

Fuel type

M272 E35Gasoline

9

Work manner:

 Water cooling/ inline 6 cylinder / 4 stroke / multi-point EFI

10

cm³：Displacement:

3498

11

Capacity of fuel tank

100L

12

Standard of emission

 EURO IV

13

mm：

Bore × stroke:

92.9 × 86.0

14

kw(hp)/rpm：

Rated power:

190(258) / 5900

15

Nm/rpm：

Max. torque

340 / 2500-5000

transmission

16

Automatic transmission

Five-speed automatic transmission

17

km/h:

Highest speed

162km/h

electrical system

18

V/A: generator

14V/180

19

V/Ah:

Starter battary

12/72

20

V/Ah:

stand-by battery

12/100

standard configuration of ambulance

21

（ESP） Electronic Stability Program

22

（ASR）Acceleration Slip Regulation

23

 (ABS) Anti-lock Braking System

24

（BAS）Brake Assist System

25

（EBV）Electric Brakeforce Distribution

26

（ASSYST）

27

12V/100Am    additional high pressure battery 12V/100Am

28

reinforced stabilizer bar for the front axle

29

reinforced stabilizer bar for the rear axle

30

Infrared remote control of central locking

31

Three seats in the driving cabin

32

Safty bag for the driver

33

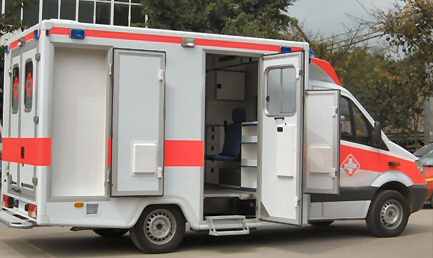

The sliding door on the right side of the medical compartment

34

Automatic window

35

CD player

36

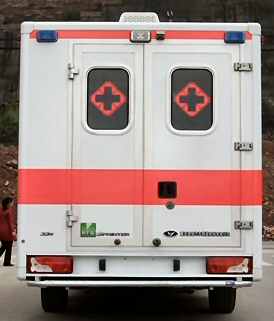

Dual open of rear door (180 degrees open)

37

central locking

38

Pedal of the back door

39

Transparent glass in the both sides of the medical cabin, compartment door, rear door and 2 / 3 white opaque explosion-proof membrane in the windows

40

235/65/R16 C

Tire and type: 235/65/R16 C

air conditioner and lighting system

41

air conditioner in the driving cabin

1

42

independent air conditioner system in the patient cabin

1

43

ventilation system on the roof of the patient cabin

1

44

Heating & warming system in the patient cabin

1

45

( 13W×4 )

fluorescent lamps in the patient cabin

4

46

Round spotlight in the roof

2

47

Ultraviolet disinfection lights

1

Central power distribution system

48

 12v、25A）

Automatic charging system (primary and secondary battery 12v, 65A

1

49

Intelligent charge regulator: When the generator input voltage reaches 13.5V, the regulator begin to charge the auxiliary battery; When the generator input voltage is below 13.2V, the regulator automatically disconnect to avoid generating the damage caused by overload of work

50

Sine wave inverter with battery charging: connected with an external 220 V power supply, the main battery and auxiliary storage battery can be charged. the inverter is pure sine wave, with intelligent conversion; between AC and DC conversion, the aircraft will not cause a short circuit or burn

51

15m Mobile Cable with 20 m long

1

52

230v

2 x 220v socket installed in patinet cabin

2

53

230V/16A

230V/16A external power outlet, waterproof ,and with a protective cover

1

54

12v 12V DC power supply system

2

55

 12v Driver Cabin 12 V socket

1

Emergency alarming system

56

Installed alarming system, and alarming siren control button in the driver’s cabin.

57

siren was installed on the roof the ambulance

1

58

100W loud speaker was installed inside of the siren.

1

59

The front roof of the ambulance ,we install dual Hazard (Emergency)
Lights (blue colour )

1

60

The rear roof of the ambulance, we install dual

High-power LED flash explosion lights

2

61

The left side and the right side the ambulance body.and the rear top side of the ambulance，we install a spot light

6

62

Two laser strobes in the front grille

2

63★

A set of double loop control switch with light touch of control panel in cab and medical cabin

1

64★

Vehicle control device of emergency start: when the vehicle does not start due to the power shortage of main battery, press and hold the green button, and press the ignition switch at the same time, you can start the vehicle (must provide a copy of the national patent certificate)

1

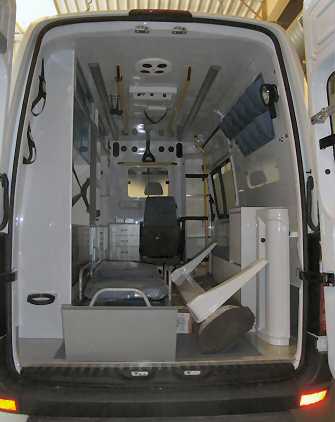

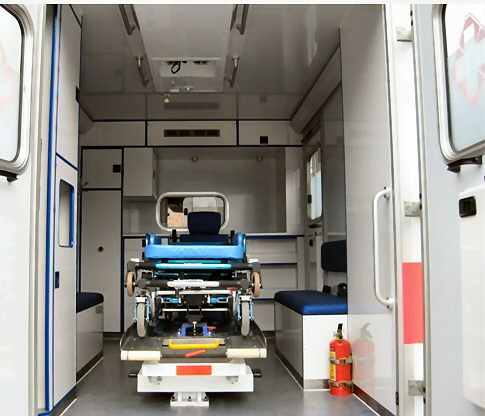

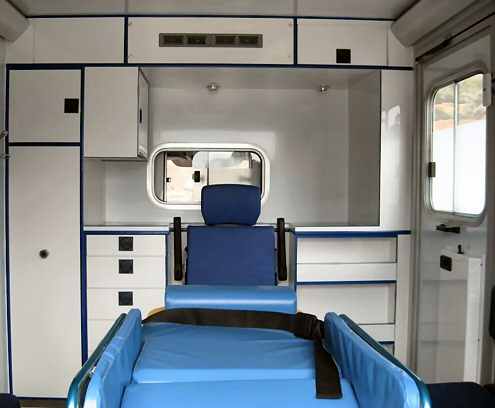

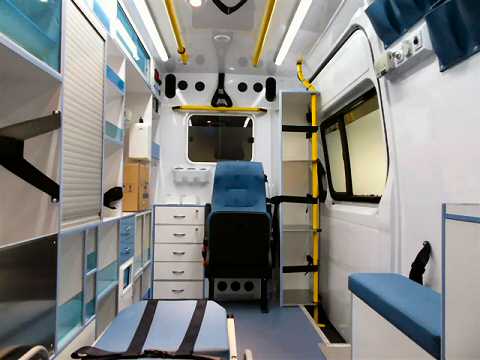

 Basic configuration of the patient cabin

65

Inner side of the Patient cabin is reinforced and strengthern Anti-collision.

1

66

heat insulation material for the Patient cabin

1

67

The Mid-board separate the patient cabin and driver’s cabin with a glass window.

1

68

ABS ceiling: Antimicrobial nylon handrails, infusion hook, suction opening and ventilation fan

1

69

The inner left and right side of the patient cabin use ABS plate

1

70

rolling type oxygen cabinet

1

71

Instrument cabinet: first-aid kit, lockable drawer, and console panel can be put

1

72

push-pull cabinet

1

73

1

74

mutil-functional instrument stents

1

75

foldable chair

1

76

Rotated chair

1

77

oxygen cylinder (with pressure valve) (15 L )

2

78

humidifier connector

1

79

respiratory machine connector

1

80

napkin box

1

81

trash can

1

82

Hand rail

1

83

Green and eco-friendly floor

1

84

Hanging cupboard on the lefe/upper side of the patient cabin

1

85★

The thickness of the cupboard is 15mm, use imported germany light material

standard equipments

86

Spencer）

Automatic stretcher (Italy spencer)

1

87

standard stretcher and platform

1

88

scoop stretcher

1

89

Chair for stairs

1

90★

Subcutaneous vein search instrument (the supplier must have a manufacturer's authorization for this project)

1

91

AC and DC electric aspirator

1
