OFFER#

MAN 15MW

TYPE:	Power Plant
DESCRIPTION:	MAN 15MW
PRICE:	Upon Request
PACKING:	Ex Depot

MAN

Subject unsold or market withdrawal

From new manufacture

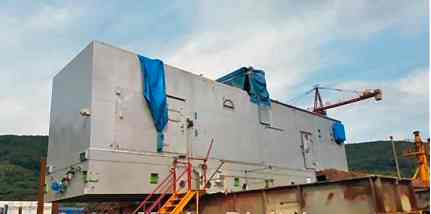

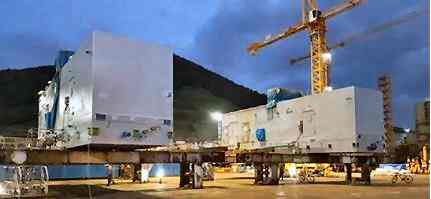

3 sets of MAN 15MVA Gas Turbine Generators for Powerplant.

*.It is a brand new one that has never been used.

1. Technical data of machine unit

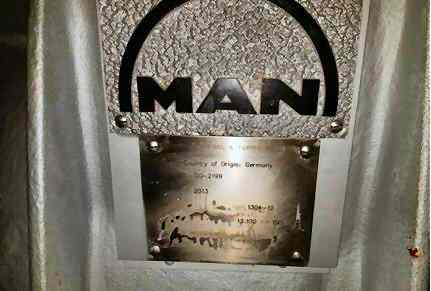

    Manufacture MAN Diesel & Turbo SE-Germany
    Year built     2013
    Size H approx. 5m x W approx. 4m x L approx. 17m
    Fuel gas Natural gas
    Fuel oil Diesel oil
    Total weight 125ton (Gas turbine package)

2. General technical data of gas turbine
    Model THM 1304-12
    Number of shafts 2
    Sensor of rotation acw (in direction of flow)

3. Technical data of gas generator
    Air compressor Type axial and centrifugal
    Number of stages 10 + 1
    Casing split joint horizontal
    Combustion chambers Number 2
    Type Single plece design
    Ignition electrode on etch
    Combustion chambers
    HP turbine Number of stages 2

4. AC Generator
    Maker ELIN MOTOREN GmbH ?2013
    Type HTM190E04/Weather deck/Offshore in nose hood
    Specification Rated output 15MVA/3P/6.6KV/50HZ.
    Rated current 1312A
    Power factor 0.773
    Excitation Brushless (PMG)
    Synchronous speed 1500rpm

Specification and photos are not contractual and are subject to verification upon inspection
