GENERAL   EQUIPMENT   INC.

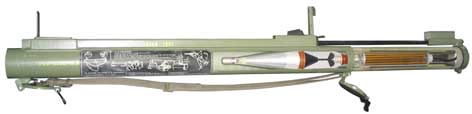

Launcher Rocket projectile       The RBR-64 mm M80 "ZOLJA" is a light, effective anti-tank weapon made of fiber-reinforced plastics It can be successfully used against armored vehicles, fortifications, as well as against live force It is intended for single usage The launcher and the container are incorporated into a single unit Technical Data: Unit mass 3.00 kg Launcher mass 1.42 kg Rocket mass 1.58 kg Length in traveling position 860 mm Length in combat position 1200 mm Penetration 300 mm Caliber 64 mm Range, max 1280 m

Dangerous class 1.1 F

UN no. 0180

- The hand-held rocket launcher is used against all types of armour vehicles at distance of 300 m. as well as against fortifications of various types and infantry at distance of 400 m.

- The firing is by mechanical sight.

- The rocket projectile is with hollow charge and detonating fuse which is safety activated at impact angle of 25^° and higher.

- The fuse is with built-in self-liquidator which is self-activated after 4-6 sec. and results in self-liquidation of the rocket.

- Temperature usage range from -30^°C to +50^°C.

- The rocket is with hollow charge and contains 300 gr. explosive.

- At clash with certain target, the rocket has piezogenerator which generates an electrical impulse necessary for activating of the fuse located at the lower part of the combat head.

- The impulse rocket engine is into operation mode while the rocket is into the launcher and the acceleration is up to 190 m/sec.

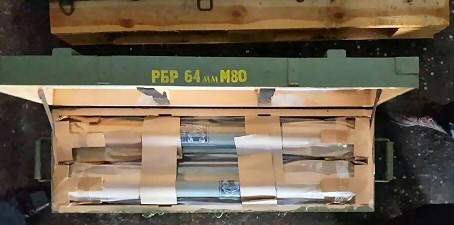

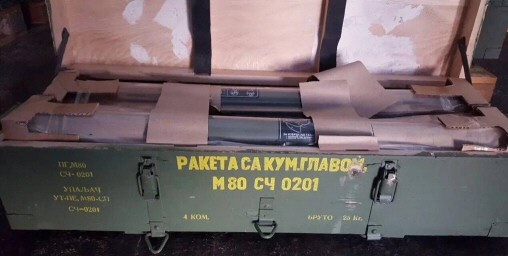

- Packing: The unit is packed into traveling position, in a vacuumed polyethylene bag, 4 units thus packed being then put in a wooden case on holders used to fix the unit. Cases are adapted for any form of transportation and carrying and for paradroping.

- 4 pcs in wooden box ( 1 box = 950 x 310 x 280 mm). The mass of such packing is appr. 25 kg.
