LUXURY BUS A9
|
TYPE: |
Bus |
|
DESCRIPTION: |
Luxury Bus A9 |
|
PRICE: |
Upon Request |
|
PACKING: |
Ex Works |

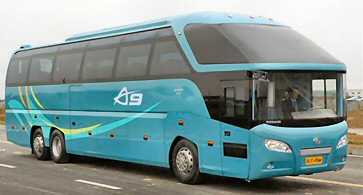

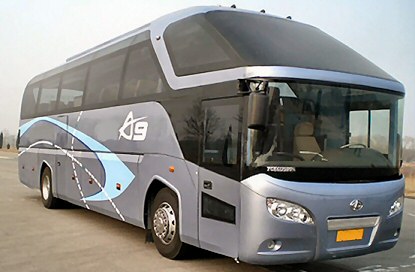

LUxury bus yck6140HGN (A9)
.jpg)
|
Complete bus parameter |
|
Engine parameter |
|||
|
Overall length (mm) |
13690 |
Model |
YC6M 390-20 |
||
|
Overall width (mm) |
2550 |
|
|
||
|
Overall height (mm) |
3860 |
Position |
Rear mounted |
||
|
Complete bus mass (Kg) |
16000 |
Type |
Standing type, water-cooled, 6-cylinder in line |
||
|
Max loading mass (Kg) |
21000 |
Max power (Kw/ps) |
266/390 |
||
|
Seats number |
57+1+1, plus 6 folding seats along gangway |
Max torque (N.m/rpm) |
1650/1600 |
||
|
Max speed (km/h) |
120 |
Displacement (ml) |
10000 |
||
|
|
|
Fuel type |
Diesel |
||
|
|
|
Exhaust standard |
Euro 2 |
||
|
Main configuration of chassis |
|||||
|
|
|
||||
|
Gearbox |
Eight-speed gearbox |
||||
|
Front axle |
Independent front axle |
||||
|
Rear axle |
Integral, singe-stage deceleration rear axle, with floating axle (3rd axle) |
||||
|
Suspension |
Air suspension |
||||
|
Steering |
Integral hydraulic power steering, left hand driven (LHD) |
||||
|
Service brake |
Disc type dual-circuit air brake |
||||
|
Parking brake |
Energy storage spring parking brake |
||||
|
Auxiliary brake |
Imported ABS, ASR and electro-turbo retarder |
||||
|
Fuel tank |
500L |
||||
|
Tyre |
11R22.5 tubeless radial tyre, stainless steel wheel cap |
||||
|
Main assembly of bus body |
|||||
|
Body structure |
Whole bearing bus frame structure, whole bus phosphatized |
||||
|
Interior trimming |
Molding softened interior trimming |
||||
|
Door/door pump |
Pneumatic out-swing front and middle passenger doors (front with sliding window), remote control lock |
||||
|
Window & windshield |
Hermetic side windows, side window curtain, panoramic laminated front windshield |
||||
|
Safety scuttle |
2 safety scuttles, one with electric ventilator |
||||
|
Luggage space |
Mechanical flat moving door, luxury lock |
||||
|
Luggage rack |
Luxury luggage rack, new style reading lamps |
||||
|
A/C system |
Non-independent A/C (35000kal/h) |
||||
|
Rearview system |
Electric reversing mirror, reversing radar, reversing monitor (LCD) |
||||
|
Audio-video system |
DVD + 2×15″LCD displayer, microphone, radio |
||||
|
Seats |
High backrest adjustable seats with meal tray, guard rail with light, folding seats along gangway attached to the common seats |
||||
|
Lamp |
Front and rear combined lamps, xenon head lamp, high-position stoplight |
|
Paint |
Imported metallic paint |
|
Other service facilities |
Electronic clock, thermometer, imported anti-skid floor leather, warm and cold water fountain, fire extinguisher, running recorder, WC |
|
Complete bus parameter |
|
Engine parameter |
||
|
Overall length（mm） |
11980 |
Model |
YC6L330-20 |
|
|
Overall width（mm） |
2550 |
|
|
|
|
Overall height（mm） |
3860 |
Position |
Rear mounted |
|
|
Wheel base（mm） |
6200 |
Type |
Water-cooling, direct injection, pressurized, mid-cooling |
|
|
Rated max. mass（Kg） |
17200 |
Max power（Kw/ps） |
243/330 |
|
|
Seats number |
47+1+1, max. 55 |
Displacement (ml) |
8424 |
|
|
Max speed (km/h) |
120 |
Fuel type |
Diesel |
|
|
|
|
Exhaust standard |
Euro 2 |
|
|
Main configuration of chassis |
||||
|
|
|
|||
|
Gearbox |
Six-speed gearbox with overtaking gear |
|||
|
Front axle |
“I” shape section |
|||
|
Rear axle |
Integral, singe-stage deceleration |
|||
|
Suspension |
Multiple leaf spring |
|||
|
Steering |
Integral hydraulic power steering, right hand drive (RHD) |
|||
|
Service brake |
Drum type dual-circuit air brake |
|||
|
Parking brake |
Energy storage spring parking brake |
|||
|
Auxiliary brake |
ABS and automatic adjustable arm, electro-turbo retarder, tachograph |
|||
|
Fuel tank |
200L×2 |
|||
|
Tyre |
11R22.5 tubeless radial tyre, stainless steel wheel cap |
|||
|
Main assembly of bus body |
||||
|
Body structure |
Rectangular steel pipe welding |
|||
|
Interior trimming |
Molding softened interior trimming |
|||
|
Door/door pump |
Pneumatic out-swing passenger door (1 door), remote control door lock |
|||
|
Window & windshield |
Hermetic side windows with curtains, panoramic laminated front windshield |
|||
|
Safety scuttle |
Front and rear safety scuttles with electric ventilator fans |
|||
|
Luggage space |
Mechanical flat moving type door |
|||
|
Luggage rack |
Luxury luggage rack, new style reading lamps |
|||
|
A/C system |
Non-independent A/C (30000kal/h) |
|||
|
Rearview system |
Electric reversing mirror, reversing radar |
|||
|
Audio-video system |
DVD+1×15″LCD display |
|||
|
Seats |
High backrest adjustable seats (with side moving and foot rest) |
|||
|
Lamp |
Front and rear combined lamps |
|||
|
Paint |
Imported paint |
|||
|
Other service facilities |
Electronic clock, thermometer, anti-skid floor leather, guard rail |
|||
Specification and photos are not contractual and are subject to verification upon inspection
