Year: 2007

Passengers: 6

TTAF: 3165

Location: Europe

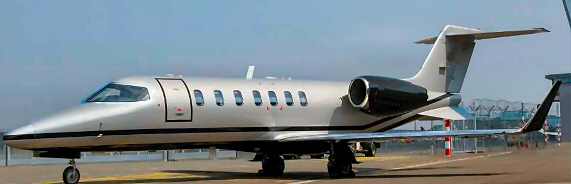

The Learjet 40XR performs well while in the air. Its average can cruise as fast as 453 ktas (.81 Mach). It can fly up to 1,617 nautical miles nonstop and take off in 5,090 feet at high altitudes. Even when loaded to its maximum takeoff weight of 21,000 pounds, it can take off in just 4,680 feet from a sea level runway. It takes 15 minutes to climb to FL370. The Learjet 40‘s cabin is highly competitive in it‘s class. It stretches to a length of 17.7 feet, a width of 5.1 feet, and a height of 4.9 feet.

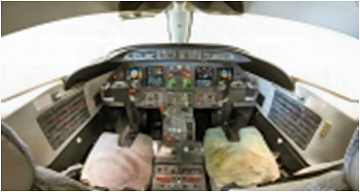

Avionics:

Honeywell Primus 1000 with 4-tube EFIS, EICAS and dual Universal FMS
COM dual Honeywell RM-855 (8.33), NAV dual Honeywell RNZ-851, FMS/GPS dual Universal FMS-1E with adv. Performance Database, ADF Honeywell RNZ-851, DME dual Honeywell RNZ-851, ELT Artex C406-2, Transponder dual Honeywell RCZ-833K (Mode S), enhanced Surveillance, Weather Radar Honeywell Primus WU-660, TCAS II ACSS RT-951 (TCAS 2000) (Upgrade 7.1 done), EGPWS Allied Signal Mark V with Windshear Alert, CVR Honeywell SSCVR, FDR L3 Com (FA 2100), RAAS (Runway Awareness and Advisory System)

Certifications:
RVSM, BRNAV, PRNAV; Steep Approach, MNPS, EASA, EU-OPS1; RNP-5

Supplementary:
No damage history, always hangared

Maintenance:

Fresh A and 150 hrs engine check (June 2015); B check (Nov 2015); C check (Dec 2016 / 3.567 hrs); D check (Dec 2020 / 4.800hrs); enrolled on CAMP maintenance tracking program, engines on MSP Gold; all certs in English language

Additional Equipment:

Dual 16 V DC converter, 230V cabin outlets, Airshow 410 with 10.4” monitor, DVD player, SONY CD player (10 Disc), cabin audio and video outlets, Pulselight, Avtech SELCA

Engines:

Honeywell TFE 731-20BR-1B (3.500 lbs) with Thrust Reverser; on MSP Gold
Engine Time 3.030 / 2.842 hrs

Supplementary:

No damage history, always hangared
AC can be delivered FAA compliance with “N” Registration

Side Info:

The aircraft are equipped with two Honeywell TFE732-20BR engines, which give extended range (XR) out of high altitudes, short runway destinations. It can carry up to 7 passengers, however normal operation is more likely to be four passengers and two crew members, which will increase the nominal cruise range of approx. 3´400 km, a cruise speed of Mach 0.81 (465 kts) and the capability of achieving maximum 51´000 ft. Operating altitude.

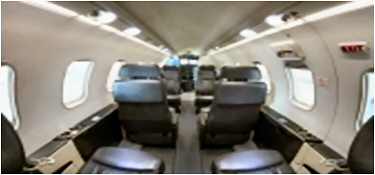

Interior:

Six (6) Passenger Executive Seating in dark gray ostrich leather (4 Club seating and 2 single fwd facing seats) plus belted lav seat, lavatory with sink - separated by a sliding door for privacy and external servicable, large refreshment center (hot coffee and ice container), all cabinetry in carbon style, brushed aluminium hardware, cabin LED lights.
