GENERAL   EQUIPMENT   INC.

SPECIFICATIONS

Model name:

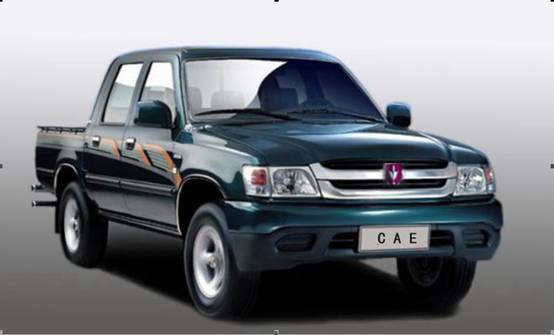

Jinbei HX-Pickup

General description:

LHD, 2WD, Double Cab Pickup

DIMENSIONS & WEIGHT

Overall L/W/H (mm):

4,890/1,740/1,670

Cargo body L/W/H (mm):

1,405/1,465/405

Wheel base (mm):

2,850

Wheel tread (mm):

1,370 (Front) / 1,362 (Rear)

Min. ground clearance (mm):

177

Min. turning radius (m):

6.0

Curb weight (kg):

1,380

Gross vehicle weight (kg):

2,220

Payload (kg):

500

Seating capacity (persons):

5

Fuel tank capacity (L):

64

ENGINE

Standard

Optional

Model:

491Q

Gasoline

491QE

Gasoline

4JB1

Diesel

493Q

Diesel

Type:

4-cylinder, in line OHC, down-draft, 2-barrel single carburetor

4-cylinder, in line OHC, down-draft, water-cooled, EFI

4-cylinder, in line, water-cooled, direct injection

4-cylinder, in line, water-cooled, direct injection

Displacement (cc):

2,237

2,237

2,771

2,771

Compression ratio:

8.8

8.8

18.2

18.2

Max. power (kW/rpm):

68/4,600

76/4,600

57/3,600

57/3,600

Max. torque (N-m/rpm):

177/3,200

193/2,600

174/2,000

174/2,000

Fuel economy (L/100km):

7.2

7.2

6.8

6.8

Emission standard:

N/A

Euro II

Euro II

Euro II

DRIVETRAIN

Type:

Rear wheels drive

Clutch:

Single plate, dry type diaphragm spring with tensional vibration damper

Transmission:

5-speed manual

CHASSIS

Suspension:

Front

Dual arms with torsion bar spring independent suspension, with telescopic shock absorbers

Rear

Variable rate asymmetric leaf springs

Brake:

Type

Hydraulic operation, vacuum power assistant

Front

Disc

Rear

Drum

Steering:

Circulating-ball

Wheel & tire:

Steel wheels, 215/75R15

STANDARD EQUIPMENT

          SABS (Brake force distribution system)

          Fabric upholstery

          High mounted brake lamp

          Cooling & heating A/C (R134a)

          Multi-function headlights clusters

          Engine tachometer

          Chromed front radiator grille

          Power steering

          Front & rear bumpers

          4 spokes steering wheel

          Manual side mirrors & manual windows

          Collapsable steering column

          Tinted glass (green) with radiation protection

          AM/FM radio & cassette stereo player

          Central control door lock

          Non-metallic paint (white only)

          Entry door lights

OPTIONAL EQUIPMENT

          491QE gasoline engine

          Power mirrors & power windows

          4JB1 diesel engine

          Remote control door lock

          493Q diesel engine

          Leather seats

          CNG dual fuel system (only for gasoline engine)

          Imitation wood decoration (walnut)

          Driver-side front airbag

          Tilt steering column

          Aluminium alloy wheels

          Single disc CD system

          Front safe guard (bull-bar)

          Metallic paint

          Stainless steel roll-bar

          2-tone chromatic paint

          Reinforced cargo floor
