IEDJAMMER





TYPE:

Jammer

DESCRIPTION:

IED Jammers Range

PRICE:

Upon Request

PACKING:

Ex-Works





ied jammer model gf-av fitted to any suv/apc



PREVENT THIS …………..

IED ATTACK ON ARMOURED SUV TO THREAT LEVEL B6



WITH THIS EQUIPMENT …..

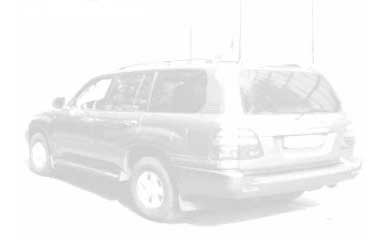

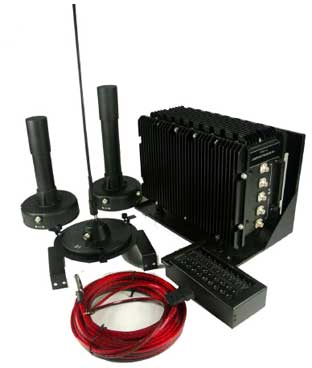

IED JAMMER Model GF-AV fitted to any SUV/APC



TECHNICAL SPECIFICATIONS

RCIED ( RADIO CONTROLLED IMPROVISED EXPLOSIVE DEVICE) MODEL GP-AV

Average RCIED jamming zone (radius) when RCIED control distance is not less than 100m: 40 metres

Radio Band Coverage: 20MHz to 2600MHz

Integral output power, W: 62

Mass of Jammer GP-AV, kg: 14

Operating Temperature Range, C: -20C to +55C

Continuous Operating Time, hrs: 12

Connected to SUV’s alternator, hrs: Indefinite

Dimensions of unit, mm:  360x250x160

RCIED Jammer Model GP-AV, ensures reliable blocking of all signals within 20-2600MHZ , including all GSM phones , and any simple triggering device like garage openers etc.

The RCIED Jammer can operate while vehicle(s) or convoy are in transit .

The unit can be easily installed in the boot/trunk of any SUV , with demountable magnetic aerials , and can therefore easily be switched to any other SUV requiring protection.

The operator controls on the ON/OFF switch , which can allow periodic periods for mobile phone/radio calls to base or between vehicles under its protection.

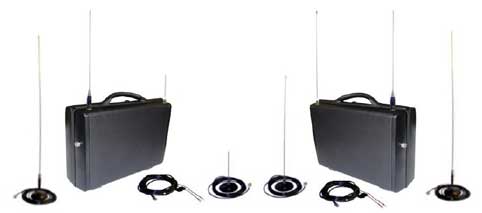

Ied / gps / & RADIO Jammers - Set of Bomb Jammers

«Model - 4MТ»



Set of Bomb Jammers “4MT” is intended to ensure personnel safety during search and discharge of explosive devices having radio controlled fuses.

The Bomb Jammer “4MT” ensures the reliable prevention of radio fuse’s operation (blocking) while it is remotely controlled by a coded radio signal.

The device offered can be used simultaneously with all existing explosive detecting equipment in no way interfering in its operation.

The Bomb Jammer “4MT” blocks the operation of radio controlled explosive devices in 20…500 MHz frequency band.

Set of Bomb Jammers “4MT” consists of 2 devices “2MT” and “2MT Plus” that can be used separately or as a combined system.

Technical specifications:

Radius of radio controlled fuses blocking (at control distance not less than 100 m), not less than, m: 30
Continuous operation time when powered from built-in rechargeable battery, no less than, hours: 2
Continuous operation time when powered from on-board vehicle power line (DC 12 V), hours, not less than: 12
Set mass, kg, not more than: 16




Bomb Jammer - «Model-4S»

(without extractable emitting aerials)




Bomb Jammer «4S» protects VIP preventing acts of terrorism when explosive devices with radio controlled fuses may be used.

Also, security service personnel can use it.

The device’s action is based upon emitting special signals within radio frequency bands used for operation of home-made and industrial manufactured radio controlled fuses.

Bomb Jammer ensures the reliable prevention of radio fuse’s operation (blocking) while it is remotely controlled by a coded radio signal.

The device offered reliably blocks operation of radio controlled fuses in 20 … 500 MHz frequency band.

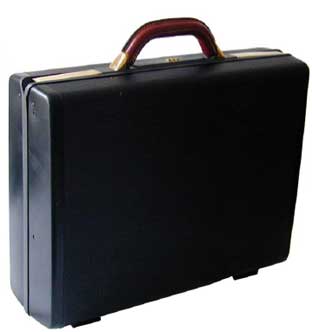

The device set is placed in a standard “Pilot” Samsonite attachécase.

Bomb Jammer has built-in rechargeable battery that ensures its autonomous operation.

The set of accessories includes an external AC/DC charger.

Bomb Jammer «4S» has no external emitting aerials.

The device offered is simple in exploitation and maintenance, does not require any adjustment routines and is ready for operation after power is switched on.

Technical specifications:

Radius of radio controlled fuses blocking zone (at control distance not less than 100 m), not less than, m: 30
Continuous operation time when powered from built-in rechargeable battery, not less than, minutes: 80
Execution splash-proof
Mass of the device, kg, not more than: 10
Dimensions, mm 460 x 240 x 345

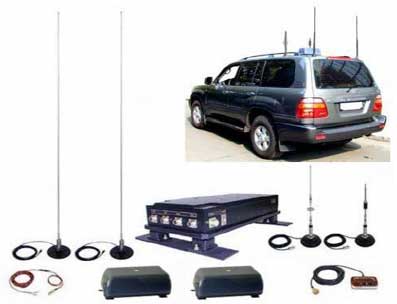

Bomb Jammer «Model - 4Т»

(Vehicle Mounted)




The vehicle mounted Bomb Jammer «4Т» protects VIP preventing acts of terrorism when explosive devices with radio controlled fuses may be used.

Device’s action is based upon emitting special signals within radio frequency bands used for operation of home-made and industrial manufactured radio controlled fuses.

Bomb Jammer «4Т» ensures a reliable blocking of radio controlled fuse operation in 20…500 MHz frequency band.

The main unit is placed in a vehicle boot (saloon). The device is powered from vehicle power line. It can be switched on and off from the passenger compartment using a special wire remote controller.

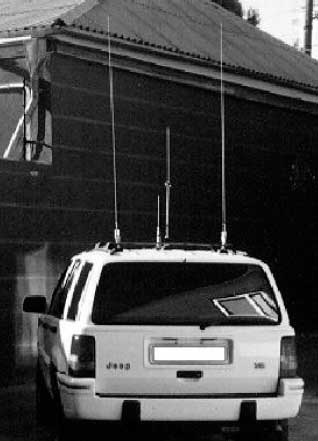

Four antennae are placed on the car roof using special detachable fixing elements (mounts).

The device offered is simple in exploitation and maintenance, does not require any adjustment routines.

Technical specifications:

Radius of radio controlled fuses blocking zone (at control distance not less than 100 m), not less than, m: 40
Mass of the set, not more than, kg: 15
Execution splash-proof
Dimensions, mm main unit (without fixing elements): 528 x 305 x 138

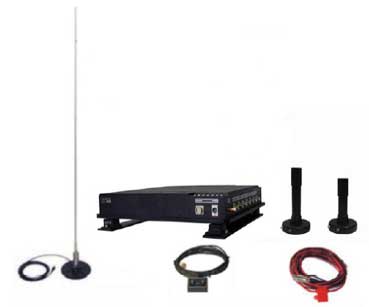

Bomb Jammer «Model - 6Т»

(Vehicle Mounted)



Vehicle mounted Bomb Jammer «6Т» protects VIP preventing acts of terrorism when explosive devices with radio controlled fuses may be used.

The device offered reliably blocks operation of radio controlled fuses in 20 … 2,000 MHz frequency band.

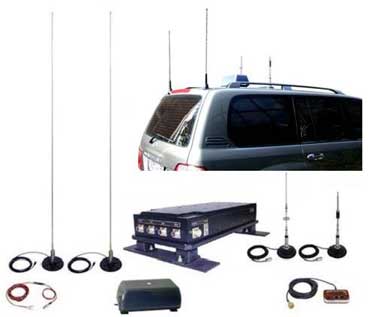

The transmitter unit (main unit) is placed in a car boot (saloon).The device is powered from vehicle power line. It can be switched on and off from passenger compartment using special wire remote controller.

Aerials are placed on the car roof using special fixing magnetic elements (mounts).

Technical specifications:

Radius of radio controlled fuses blocking zone (at control distance no less than 100 m), no less than, m: 40
Mass of the set, no more than, kg: 23
Execution splash-proof
Continuous operation time, hours, no less than: 12
Device’s dimensions, mm:
main unit (w/o fixing elements): 528 х 305 х 138
cowl: 380 x 210 x 165



Bomb Jammer «Model - 7Т»

(Vehicle Mounted)




Vehicle mounted Bomb Jammer «7Т» protects VIP preventing acts of terrorism when explosive devices with radio controlled fuses may be used.

The device offered reliably blocks operation of radio controlled fuses in 20 … 2,600 MHz frequency band.

The transmitter unit (main unit) is placed in a car boot (saloon).

The device is powered from vehicle power line. It can be switched on and off from passenger compartment using special wire remote controller.

Aerials are placed on the car roof using special fixing magnetic elements (mounts).

Technical specifications:

Radius of radio controlled fuses blocking zone (at control distance not less than 100 m), not less than, m: 40
Mass of the set, not more than, kg: 26
Execution splash-proof
Continuous operation time, hours, not less than: 12
Device’s dimensions, mm:
Main unit (w/o fixing elements) 528 х 305 х 138
cowl: 380 x 210 x 165



Portable GPS Receiver Jammer «Model-26P»



This device is intended for blocking of operation of GPS double-band receivers.

The device is delivered in a standard Samsonite attaché-case. It has no extractable emitting aerials and other de camouflaging features.

GPS Receiver Jammer «26P» is powered by built-in rechargeable battery.

The set of accessories includes AC/DC charger to charge the battery from 220 V/50 Hz (260 V/60 Hz) AC mains.

Technical specifications:
locking frequency bands, MHz 1,200…1,260...1,530…1,600
Radius of reliable blocking of operation of special purpose GPS double-band receivers (e.g. GPV-100)
minimum radius of guaranteed breakdown of satellite tracking, m, the device is placed on the ground minimum radius of guaranteed breakdown of satellite tracking capture (impossibility in receivers’ synchronization), m, the device is placed on the ground 500 - 1000
continuous operational time from built-in rechargeable battery, not less than, hours: 2
Operational temperature range, С -10…+40
suitcase splash-proof
Dimensions, mm: 460х400х140
Mass, kg: 10,3



Bomb Jammer «Model - 27P»

(without extractable emitting aerials)



This device is intended to block operation of radio controlled fuses based upon cellular phones of GSM 900, AMPS/DAMPS, CDMA, GSM 1800, GSM 1900 standards, and wireless phones with 500…2,000 MHz operational frequency bands.

Cellular Phone Jammer «27P» is intended for EOD squads executing search and discharge of radio controlled explosive devices, security services and agencies protecting VIPs against acts of terrorism when radio controlled explosive devices may be used.

The device is delivered in a standard Samsonite attaché-case. It has built-in battery that ensures its autonomous operation. The set of accessories includes an external AC/DC charger (220V 50 Hz mains).

The device offered is simple in exploitation and maintenance, does not require any adjustment routines and is ready for operation after power is switched on.

Technical specifications:

Blocked frequency bands, MHz 500…2,000
Radius of radio controlled fuses blocking zone (at control distance not less than 100 m), not less than, m: 35
Continuous operational time from built-in rechargeable battery, not less than, hours: 2
Execution splash-proof
Dimensions, mm: 460 х 400 х 140
Mass, kg: 10.2

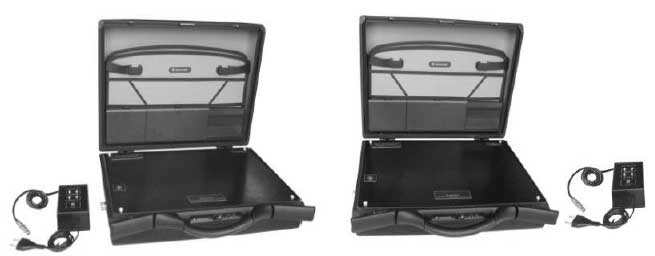

Set of Bomb Jammers «Model - 30PS»

Set of Bomb Jammers “30PS” is intended to block operation of radio controlled fuses based upon cellular phones of GSM 900/1800 standards operating within 935…960 and 1,805…1,880 MHz frequency band.

The system is delivered in two standard Samsonite attaché-cases (unit 1 and 2). «30PS» has no extractable emitting antennae and other de camouflaging features.

The device offered can be used in a stationary option when powered from the standard mains 220-240V/50-60 Hz or in portable option when powered from built-in rechargeable battery. The set of accessories includes also two AC/DC power supplies and two AC/DC chargers (one for each case).

The device offered is simple in exploitation and maintenance, does not require any adjustment routines.

Technical specifications:

Unit 1 frequency band, MHz 935…960
Unit 2 frequency band, MHz 1,805…1,880
The radius of guaranteed envelope of cellular phone neutralisation when jammer is located at a distance not less than 400 m from the base station, not less than, m: 100
Power requirements 220-240V/50-60 Hz or built-in rechargeable battery
Unceasing operational time from powered from AC mains 220–240V/50–60Hz, hours, not less than 8.0
Continuous operational time from the autonomous power source, not less than, minutes 90
Dimensions, mm, one unit 460 х 400 х 140
Mass, kg, one unit 12.5



Bomb Jammer «Model - 9Т»

(Vehicle Mounted)



Vehicle mounted Bomb Jammer Model 9Т is used for protection VIP, convoys etc preventing acts of terrorism when explosive devices with radio controlled fuses may be used.

The device offered reliably blocks operation of radio controlled fuses in 20 …6000 MHz frequency band.

The set of transmitters (main unit) is placed in a car boot (passenger compartment). The device is powered from 12V/24V vehicle battery. It can be switched on and off from passenger compartment using special wire remote controller. Aerials are placed on the car roof using special fixing magnetic mounts.

Technical specifications:

Frequency band, MHz 20…6000
Radius of radio controlled fuses blocking zone ( by methods of Federal Service of Security), not less than, m: 50
Mass of the set, not more than, kg: 28
Execution splash-proof
Continuous operation time, no less than, hours: 12
Device’s dimensions,  main unit (w/o fixing elements) 528 х 528 х 138 mm

The production is certificated in compliance with standards of ISO 9001.



JAMMER OF WIRELESS NETWORK Wi-Fi

«Model - 24P»


This device is intended for blocking (jamming) wireless network Wi-Fi.

The device is delivered in attaché-case.

It has no extractable emitting antennas and other decamouflaging features.

Wi-Fi jammer is powered by built-in rechargeable battery.

The set of accessories includes charger to charge the battery from 220 V/50 Hz AC mains.

Technical specifications:

Jamming frequency bands, MHz 2100…2600
Radius of radio controlled fuses blocking zone, no less than, m: 30
Continuous operation time from built-in battery, no less than, hours: 3,5
Operational temperature range, °C -10…+40
Execution splash-proof
Mass of the set, not more than, kg: 9,0
Device’s dimensions, mm: 460 х144 х 425

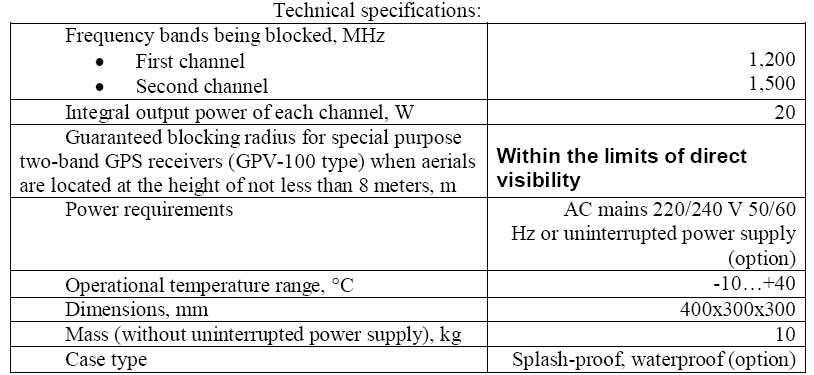

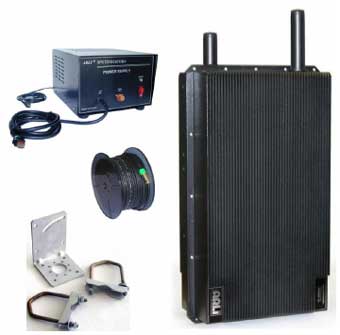

GPS receivers blocking device

(GPS Jammer) “Model-42S”


This device is intended to block (suppress) operation of GPS receivers.

It has splash-proof case (waterproof case is an option).

Two aerials are located at the case of the unit.

The case has special fixing flanges that ensure secure and easy mounting of the unit on the mast or other construction.

The GPS Jammer “42S” is powered from AC mains 220/240 V 50/60 Hz.

To ensure continuous operation during mains power failure, the unit is equipped with uninterrupted power supply (option) that ensures operation of the unit for 2 hours.

The GPS Jammer “42S” does not require any adjustment routine, and ready for operation when power is switched on.




Delivery set includes the following items:

Generators’ unit;
Aerials;
Uninterrupted power supply (optional extra);
Cables, fixing elements;
User’s Manual;
Spare parts (option);
Steel mast 8 meters long (optional extra);
Special unit’ option is adopted for easy mounting on pilot-less aircrafts.







Specification and photos are not contractual and are subject to verification upon inspection
