Armored Hyundai H1 Cash In Transit (CIT)

B4 Armored - MSV111010058

Ballistic Specifications

Vehicles in B4 level are armoured using materials, both opaque and transparent, that exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB4 for opaque areas and BR4 for transparent areas and will protect against the AK47 7.62x39 cold-hardened steel core (VPAM PM2007 level 6).

Armouring

All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armour steel and glass defeating 357 Magnum ammunition (CEN level FB3/BR3 and FB4/BR4) and 44 Magnum ammunition (CEN level FB4/BR4) at 0° incidence (90° to the surface) and 5m range according to CEN1063 and CEN1522 and defeating the

                              7.62x39 FMJ/PB/FeC ammunition (VPAM PM2007 level 6).

Opaque Areas:

All opaque areas including the roof are protected against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

·    Calibre 357 Magnum, FMJ/CB/SC

·    Calibre 44 Magnum, FMJ/FN/SC

·    Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov

Transparent Areas:

All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

·    Calibre 357 Magnum, FMJ/CB/SC

·    Calibre 44 Magnum, FMJ/FN/SC

·    Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov

Floor

The floor of the vehicle is designed to defeat the following hand grenades

·    Two DM 51 (German Norm) detonated simultaneously

Armouring design: Armouring design:

·    The armouring is integrated with the vehicle’s structure and is self-supporting so

as to avoid excessive stress on the vehicle’s original structure.

·    The  interior  armour-frame  provides  overlap  for  the  large-surface  armour components such as the door armour-plates and the windows.

·    Hinge mounting points are reinforced both in the pillars and in the doors where applicable  in  a  way  that  the  armouring  of  the  door  is  supported  by  the armouring of the pillar.

·    Heavy-duty hinges with in-built door-stop.

·    The Vault compartment is separated from the driver’s cab by an armoured fixed

partition.

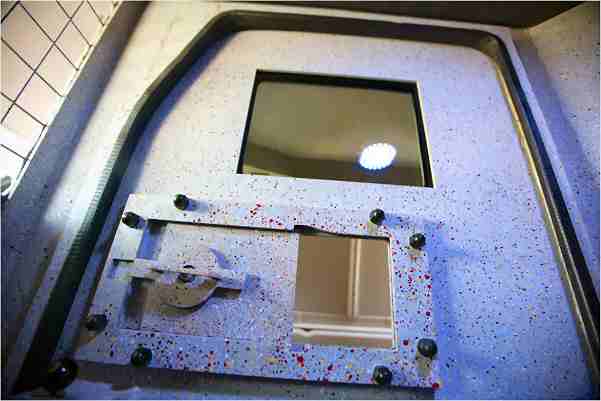

·    The Vault compartment is separated from the guard’s compartment by a steel partition and is accessed by a swivel-out door.

                                    ·          The Guard’s compartment is accessed through a door in the rear bulkhead of the armouring, which allows the passengers to disembark without external assistance.

·    All doors are fitted with electronically-controlled interlocking high-security safety locks. Additional manual bolt-locks on all doors.

·    Fuel-tank, battery and ECU protected with steel armour-plates.

Test Reports/ Product Liability

All materials used in the production of the cabin were successfully tested against projectiles and explosives by independent laboratories. Test reports can be presented upon request or during a factory visit. The armouring of the vehicle provides protection against a wide range of projectiles and explosives. However, complete protection is not possible for reasons of design and modern military weapon technology.

Additional equipment included:

·    Upgraded suspension to cope with the additional weight due to armouring

·    Run-flat systems on all wheels

·    Intercom for communications between front cab and rear compartment

·    Multi-tone siren with PA system

·    Air-conditioning unit for the rear compartment

Further optional equipment:

Further optional equipment available at extra cost, such as

·    Fast drop chute on the side of the vehicle for direct drop-off in vault compartment

·    Rear door for separate access into vault compartment

·    Gun-ports

·    2-way intercom inside/outside

·    Rear-view camera with monitor in front cab

·    Front and rear strobe-lights

·    Communications equipment (VHF, UHF, satellite...)

·    Electronic Counter Measure Equipment (RF Jammer)

·    Video recording/surveillance equipment

·    Higher ballistic protection level

·    Additional blast protection – Protection against DM31 AP Landmines

·    Other

Available upon request on new production order. Please let us know your specific requirements.

Vehicle Specifications

Base Vehicle:      Hyundai H1 new

Model Year:          2014

Engine Model:    A 2.5 CRDi

Output:                 125HP@3800, 392@2000~2500rpm

Cubic Capacity:  2,497 cc

Transmission:     5-speed automatic with H-matic

Seats:                    3

Colour:                  As Available

Interior Features:                  - Multiswitch Panel

     - Keyless Entry

     - Driver, Front Passenger Airbags

      - Power Assisted Steering

      - Power Door Locking

Exterior Features:                  - ABS

      - EBD

      - Park distance control
      - Ventilated disc brakes

Warranty and after sales service

The  entire  vehicle  carries  a  one  year  warranty  on  all  components  not  including lubricants and parts which are subject to normal wear and tear, provided the vehicle is serviced according to the maintenance schedule in a Mezcal Security Vehicles-approved workshop. In the event of a problem occurring that cannot be resolved by local technicians, a member of our service team will be available to assist or travel to the location of the vehicle to carry out the repair. Services under the warranty will be provided free of charge to the customer upon immediate written notification by either the authorised Hyundai dealer or the vehicle owner. It is left to our discretion to replace or repair parts that have become unusable as a result of proven defects in design, material or workmanship. Replaced parts become our property.
