GIV89





TYPE:

Aircraft

DESCRIPTION:

Gulfstream GIV - 1989

PRICE:

Upon Request

PACKING:

As is, Where is





gulfstream giv - 1989

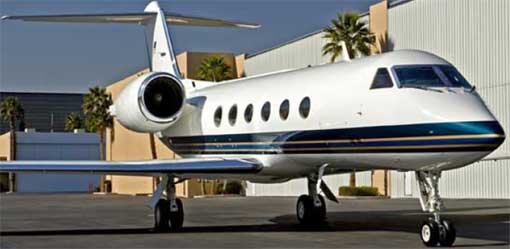

1989 Gulfstream IV



EXTERIOR: (Last Painted by Gulfstream Dallas 08/09/04)

• Overall Chevron White with Dark Blue Metallic, Navy Blue Metallic, Las Vegas Gold stripes

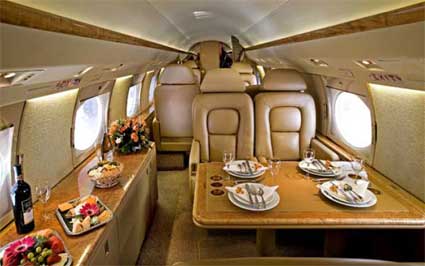

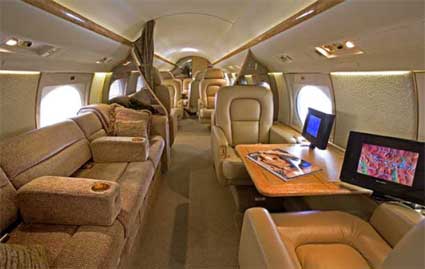

INTERIOR: (Refurbished by Gulfstream Dallas 08/09/04)

12 Passenger seats in three separate seating areas
Forward cabin with two club chairs opposite a three-place berthable divan
Mid cabin with single left side forward facing club chair opposite two club chairs and pop-up 14’’ Flat screen Rosen Monitor
Aft cabin with right side four-place conference group (convertible to full-size bed) opposite Credenza w/pop-up 14" Flat Screen     Rosen Monitor
Stowable Jumpseat certified for takeoff / landing
All seats finished in Dark Tan Leather
Woodwork is hi-gloss Bird’s Eye Maple
All metal trim Gold plated
Headliner and Upper Sidewalls in Beige Leather, Brown Berber Carpet w/Gold Highlights
Forward Crew Lav and Crew Refreshment Center

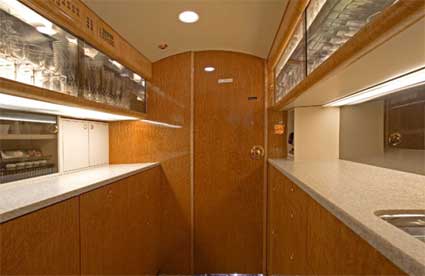

Main Aft Galley equipped with Hi-Temp Convection Oven, Microwave Oven
Aft Lav (non-belted) w/external service
Eight 110 V/60 Hz electrical outlets in cabin
Sony Graphic Equalizer
Sirius DVD/CD Player
Sony CD Player
Airshow 400 Genesys Network
Two 5.6" Rosen LCD seat monitors
Magnastar C2000 Digital Flight Phone w/5 Handsets
Collins SAT-906 Satcom

ENGINES: Rolls-Royce TAY 611-8

Left                      Right

• Serial Number 16352 16353
• Time Since New 5,107 5,069
• Time to Overhaul 1,092 1,189
• Ten-Year Calendar Due 11/09 11/09

APU: Allied Signal GTCP36-100G (s/n P-511)

• 4,149 Hours Since New
• 705 Hours Since Hot Section Inspection (HSI Due at 5694 Hours)

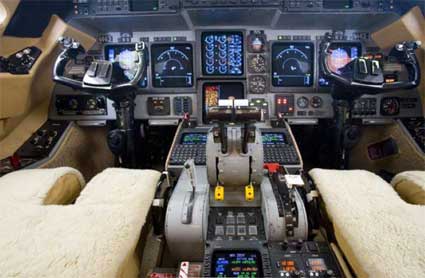

AVIONICS:

• EFIS Honeywell SPZ-8000 6-Tube EFIS display
• FGC Dual Honeywell FZ-820 Flight Guidance Computers
• ADC Dual Honeywell AZ-810 Air Data Computers
• FMS Triple Honeywell NZ-2000 Flight Management Systems (5.2)
• GPS Dual Honeywell HG-2021 GPS
• IRS Triple Honeywell Laseref II LIRS
• TCAS Honeywell TCAS 2000 w/Change 7 software
• GPWS Honeywell Mk V Enhanced GPWS w/Windshear Detection and RAAS
• VHF Comm Triple Collins VHF-422D VHF radios w/8.33 kHz frequency spacing
• VHF Nav Dual Collins VIR-432 VHF Nav radios w/FM Immunity
• HF Comm Dual Collins 728U-2 HF Comm radios w/Motorola NA138-714B Selcal
• ADF Dual Collins ADF-462 Automatic Direction Finders
• DME Dual Collins DME-442 Distance Measuring Equipment
• TDR Dual Collins TDR-94D Transponders w/Elementary Surveillance ID
• ALT Dual Honeywell RT-300 Radio Altimeters
• Radar Honeywell Primus 880 Color Weather Radar w/LSZ-850 Lightning Sensor
• ELT Artex 406 Triple Frequency ELT w/Nav Interface
• AFIS Honeywell AFIS w/VHF and Satcom Links
• CVR Fairchild A100A Cockpit Voice Recorder
• Honeywell PZ-800 Performance/Auto Throttle Computer

ADDITIONAL FEATURES:

• RVSM; P-RNAV;RNP-5; RNP-10; MNPS; Part 91 MEL (each w/separate FAA LOA)
• Goodyear Wheels and Brakes
• Gulfstream CMP
• DeVore Tail Logo Lights
• Precision Aircraft Pulse Lights
• Rosemount Ice Detection System
• Extended Range Passenger Oxygen System
• Wired for Telex Airman ANR 500 Headsets powered by aircraft electrical syst
• Wired for Electronic Flight Bags

WEIGHTS:

• Max Ramp 73,600
• Empty 42,236
• BOW 43,427
