OFFER#

FUZE PD M557

TYPE:	Fuze
DESCRIPTION:	Fuze PD M557
PRICE:	Upon Request
PACKING:	Ex-Depot

fuze pd m557

From new manufacture

ARTILLERY FUZE PD M557

The Point Detonating M555P1 is an impact fuze used in the high explosive type of 105mm, 155mm and 8 inches howitzer, 90mm and 120mm gun as well as 4,2΄΄ mortar ammunition This fuze is an improved safety model of the old PD M557 one GPCC’s fuze PD M557P1 complies fully with all NATO military specifications and test methods

TECHNICAL DESCRIPTION

The PD M557P1 fuze is a selective Superquick or 0,05 second Delay impact fuze designed to fit spin-stabilised projectiles with 2 inches thread

The improvement of PD M557P1 fuze consists of the replacement of the old less safe Booster by the new Booster M125A1P1 that is exactly the same with the relevant one used in the PD M739 fuze

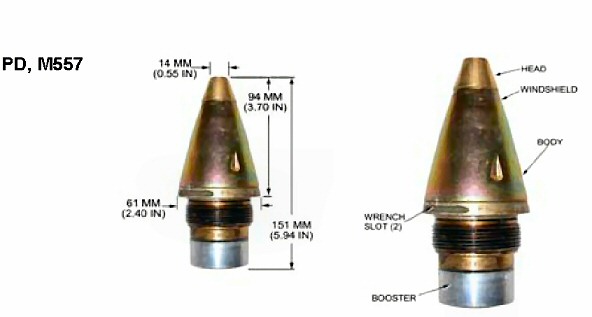

The fuze consists of a solid aluminum body including the head assembly, the interrupter assembly with setting sleeve, the M1 delay plunger, the delay arming module, the booster charge and the S & A device

The detonator included in the Delay Arming Module provides handling, setback and muzzle safety 35 to 126m depending on the type of the weapon

TECHNICAL DATA

Weight:   950   g
Length (Overall):   151   mm
Length (Visible):   96,4   mm
Thread:   2   inches

Temperature Limits
Operation   :   -62oC to +71oC
Storage        :   -54oC to +71oC

PACKAGING

8 Fuzes per metal box
2 metal boxes per wire bound wooden box

Packaging secures safe land, sea and air transportation and long term storage.
