GENERAL   EQUIPMENT   INC.

Model

5020XBY

Passengers(including driver)

5

Dimensions (L x W x H)(mm)

5305（5405）×1705×1685（1715）

Max Speed (km/h)

130

Engine

491QE

Engine displacement/power(ml/kw)

2237/78

Capacity of tank(L)

58

Type of fuel/displacement standard

Petrol / GB18352.3-2005 +OBD

Max mass/Complete Vehicle Kerb Mass(kg)

2230/1680

Chassis（3 type）

CC1021DAD00

Suspension (front/rear)

independent suspension/ leaf spring(5 pieces)

Chassis equipment

Basic equipment

Optional equipment

Distance of shaft centers: 3380mm

Steering gear:

power cylinder and rack.

Clutch:

dry diaphragm spring and hydraulic operation.

Brake system:

double sections  vacuum auxiliary,  hydraulics brakes,front disk brake,

rear drum brake

Environment protect air-condition in cabin,

CD player in cabin,  SABS

Center-controlled lock,

Redirector assistant,  Hub of aluminum alloy

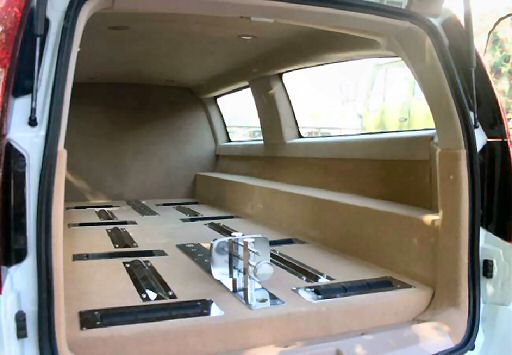

Luxury inner decoration,  European style lining in the coffin,  carve dragon and phoenix in the surface,   Stainless steel internal bladder,

Stainless steel litter with chain wheels in the coffin,

Back single door open from the top, Large side window

Model

CC6590BY

Passengers(including driver)

2

Dimensions (L x W x H)(mm)

5940X1800X1760

Max Speed (km/h)

160

Engine

4G64S4M

Engine displacement/power(ml/kw)

2351/93

Capacity of tank(L)

70±3

Type of fuel/displacement standard

GB18352.3-2005 +OBD

Max mass/Complete Vehicle Kerb Mass(kg)

2790/2120

Chassis（3 type）

Suspension (front/rear)

wishbone-type independent suspension / five connecting rods coil spring rigid axle suspension

Chassis equipment

Basic equipment

Optional equipment

Distance of shaft centers: 40200mm

Steering gear:

pinion-and-rack hydraulic

Clutch:

dry diaphragm spring and hydraulic operation.

Brake system:

double sections  vacuum auxiliary,  hydraulics brakes,front disk brake,

rear drum brake

Environment protect air-condition in cabin,

Cab power window, ABS+EBD,Lengthen side glass, 6 dish CD player in cabin,  Reverse sensor, front and back foglight,adjustable angle steering wheel, High positioned rear brake lights, Cockpit and the rear cockpit the enclosed type separates the screen, Side light marker(outside at type),Defrosts electrically operated the rear view mirror, In the remote control the lock(RCL), Attracts power safely the direction tube colomn
