OFFER#

FORD 550 APC

TYPE:	APC
DESCRIPTION:	Ford 550 APC
PRICE:	Upon Request
PACKING:	Ex-Depot

ford 550 apc

From new manufacture

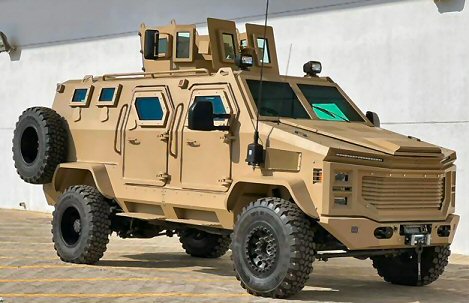

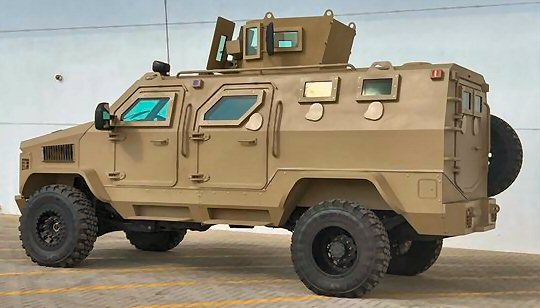

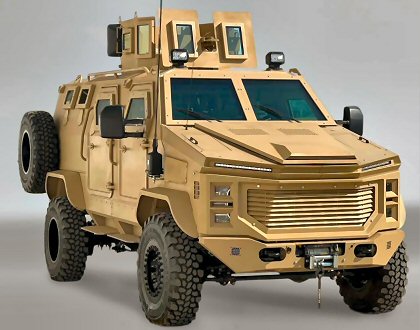

Offer: New Ford F-550 APC Armoured Level B6+

Vehicle Specifications

Model: Phantom Fuel Type: Diesel (Euro 3) Armor Level: STANAG 4569 Level 2 Drivetrain: 4x4 Horsepower (max): 330hp @2200 RPM Curb Weight: 7000 Kg Engine: Ford Power Stroke 6.7L or Cummins Combat Weight: 8000 Kg Transmission: Automatic 10 Speed Payload Capacity: 1100 Kg Top Speed: 120 km/h Turning Radius: 8m Range: 750 Km Fording Depth: 1.2m

Armoring

Armor Protection: 360 degrees protection at all points Perimeter and Floor Protection: Ballistic Protection to meet STANAG 4569 LEVEL 2

Glass Protection:

Anti-spall shield protecting occupants against shattering glass
Multiple impact protection
Finest optical quality, Minimal distortion
Minimal delamination
Minimal if any discoloration from UV rays
Thickness: 60mm STANAG 2

Additional Protection:

Battery protection: B6
Ballistic Radiator Protection: B6
Computer unit & Fuse box protection: B6
Fuel tank: armored with 10mm side, 4mm cold roll steel box construction
Bolt on box construction ballistic steel protection under passenger area and engine compartment
Front Protection B6 (Engine Compartment)

Doors Locks & Hinges:

Armor overlap at all doors to prevent penetration
5 Door layout: 4 passenger doors and 1 rear cargo door
Heavy Duty Door Hinges

Suspension & Brakes

Custom made suspension components for safety, performance, and handling
Front coil spring with shock absorbers and rear leaf spring with shock absorber
Fully upgraded Alcon Brakes System

Tire, Rims & Run-flat Tire System

All tires (including spares) fitted with heavy duty run-flat tire insert
Tires: 335/80 R20 Tubeless
Rims: Hutchinson or equivalent military type
Spare tire mounted on side of vehicle

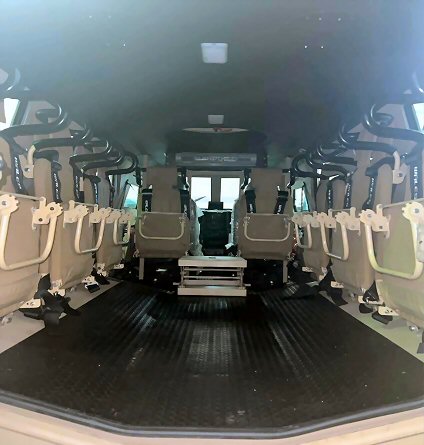

2 + 8 Seating Capacity: Driver, Commander plus 8 crew

Heat Insulation

Equipped for extreme hot and cold climatic conditions

Climate Control:

OEM system plus extra rear heavy duty air conditioner
Two exhaust fans controlled from a switch located in the driver compartment
Additional heat dissipation and removal of smoke/airborne chemicals

Storage & Other Interior Features

Storage:

Space for storage of ammunition or other equipment and gear
4 Small Fire Extinguishers

Interior Features:

Anti Slip HD black textured finish on interior rear floor
Interior light with night operation blue light
Interior control for PA system / Siren / Exterior strobe lights
Interior control system for external GO Lights

Exterior Features

Auto Engine Fire suppression system
Heavy Duty Electrical Winch
Rear Camera
Grab Handles and foot rails along the rear & both sides of the vehicle
2 Front GO lights with interior control
Front LED bar Lights plus OEM lights
Paint: TBD
8 Gun Ports
Armored Turret with multi system bracket

Specification and photos are not contractual and are subject to verification upon inspection
