GENERAL   EQUIPMENT   INC.

Subject unsold or market withdrawal

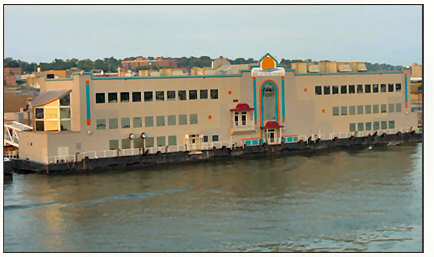

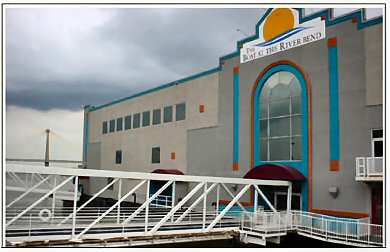

Floating Restaurant with 3 Decks


Length over all: 297'



- Convention Center



hosted 3 Million Visitors annually



Specifications


BARGE
Length: 297'
Beam: 54'
Depth: 13'9" at centerline with 12" camber
7 Bulkheads: Transverse at 21' / 61' / 96' / 200' / 241' / 285
Longitundinal at: Centerline
Construction Date: 1969







SUPERSTRUCTURE

Three Story
Height from Waterline: 62'
Construction / Renovation: 1993 / 2006
Area: 43500 s.f. (14500 s.f. / deck)
Elevators: 3 (two for public use / 1 service)
Kitchen: Sufficiently sized to serve both buffet and high-end restaurant --located on First and Third Floors
Grand Staircase
HVAC: Forced Air with Chillers and Electric Furnaces
Electrical: 480 Volts (Three Phase with Ground) // 1000 Amps
Sewage: 2 Masticular Pumps



Equipment & Appartenances



{Main Deck}

KITCHEN EQUIPMENT



� Smokaroma "The Bar-B-Q Boss" smoker
� Duke 4' stainless steel serving table with dual "serving leaves"
� Duke Model triple tray steam table with dual serving shelves



� 8' double stainless steel sink wall unit
� Advance Tabco stainless steel lavatory sink
� 9' triple stainless steel sink wall unit
� Scotsman CM3icemaker with filtered water supply
� Scotsman ice chest
� (2) 14' x 11'8" caged storage areas
� Perlick 7' x 3'9 x 5'7" freezer
� 8' x 10' x 7'7" Kolpak walk-in freezer
� (4) 2' x 6' x 7' four shelf metal storage racks
� (4) 2' x 6' x 7' four shelf metal storage racks
� Bakery Pride oven
� beverage dispenser concentrate rack with hoses
� slop sink
� (4) 30" x 6' x 35" stainless steel food preparation tables with shelves
� Duke Model stainless steel carving table with heat lamps



BAR EQUIPMENT



� (2) Duke steam / hors d' oeuvre serving tables
� A True TD95-38 bottle cooler
� Jackson EcoLab ET (1) glass waher with 48" Perlick drain sink



� 2' x 2' stainless steel corner shelf
� Pepsi Americas ice chest with bottle rack
� A True TD95-38 bottle cooler
� 24" bottle rack
� 8'6" x 3' x 3'9" glass block fluorescent backlit back bar providing bottle storage and refrigeration
� 24" wide stainless steel bottle rack
� 24" stainless steel bottle rack
� Krowne Model stainles steel sink with strainer
� Perlick 24" drain tray and 2.5 Pepsi Americas drink dispensing nozzle
� Krowne Model drain sink
�(2) Model IT-2000 cash registers / moitors / printers







{Second Deck}

BAR EQUIPMENT



� (2) E Wave "mini fridge" sized chillers
� A TrueModel TD9538 bottle cooler
� Krowne Model stainless steel bottle rack
� (2) Model IT-2000 cash registers with CRT monitors adn Epson receipt printers



� lavatory sink
� (2) 9" wide Perdick bottle racks
� Ecolab ET (1) glass washer with Perdick drain table



{Third Deck}

KITCHEN EQUIPMENT



� Gemini System 312 Coffeemaker
� Hunter Model Econo 1 filtrator
� GE Microwave Oven
� Alton Shaam heat warmers
� 30" wide chest freezer
� True Model TSSU-48-18M-8A condiment refrigerator
� True Model T-23 refrigerator
� NSI DDS 9800 digital dimming system controller
� Dean Model SR152GPS
� Vulcan Model ICM6010 burner propane stove
� Vulcan Model VPX5 steamer
� (2) Blodgett electric ovens
� Mr. Coffee 12-cup coffeemaker
� GE Food Processor
� A US Range 6-burner stainless steel gas stove
� Vulcan Propane Grill
� Globe commercial meat slicing machine
� Stainless steel shelves with Meco heat lamps
� A True refrigeratoed food preparation table
� Southern Equipment Lo Steam Table
� True food preparation / steam table -5'6" wide
� 11' x 7' x 7' Kolpak walk-in refrigerator
� 5' x 6' x 7' Kolpak walk-in refrigerator
� 7' x 7' x 7' Kolpak freezer
� Rankin Model TB-636-C Delux Grill
� Southern Engineering exhaust hoods with lights
� Deantwin basket deep fryer
� KitchenAid classic mixer
� Stainless steel storage shelves
� Multiple commercial grade utensilspans and bowls
� Alfacommercial grade meat grinder
� A.O. Smith Model HW-200M water heater
� ThermalXTrol expansion tank
� A.O. Smith 200-gallon storage tank (inboard locker)
� (2 ) Alto Shaam Model 1000-TH/I ovens
� Ecolab Model WH 44 dishwasher



{Miscellaneous}

ELECTRICAL EQUIPMENT



� MUZAK satellite dish
� Trane Type CPL2992-9375-01 HVAC unit
� Intelligent Fire & Protection alarm system
� Seven Siemens ITE electric switchboard controllers
� Seven-dayIntermac elecetric circuit timer
� Video Surveillance Cameras
� (3) sparenew Marathon electric motors 2025and 30 horsepower
� NSI DDS 9800 digital dimming system controller
� (17) Lutron 120V "two circuit" lighting controllers
� Seimens main breaker panel
� (2) Dayton photohelic moisture gauges
� (2) ABB ACH-500 controllers
� Armtrol airchange valve and a Furnas Marathon pressurizedfire jet pump powered by a 15 horsepower electric motor
� NSI DDS 9800 digital dimming system controller



HVAC



� Trane Type CPL2992-9370-01 HVAC unit
� Trane Type CPL2992-9371-01 HVAC unit
� Trane Type CPL2992-9372-01 HVAC unit
� Trane Type CPL2992-9373-01 HVAC unit







Understanding the Trane Systems: The air conditioning system is of industrialrather than commercial qualityconsisting of six Trane T-series air-handling units feeding air to a series of Variable Air Volume Control Boxes.



The air filters are of the purafil charcoal type that have odor removing capability. Heat is provided by multi-stage electric coils in the air-handling units. Cooling is provided by multi-stage electric coils in the air-handling units. Cooling is provided by two Trane 150 Ton Helirotor water chillers. Chill water is piped to the air-handling units located on the roof. River water is used piped to the air-handling units located on the roof. River water is used to cool the compressors rather than using high outside air temperatures. This delivers a lower operating temperature and pressurewhich results in less energy per ton of coolingand a substantially increased equipment life. These chillers are approximately ten years old and have been recently upgraded. Expected useful life extends for another 15-20 years.



The temperature and energy control system is a Trane Summit system based on direct digital control. This energy control system was upgraded in 2005 to incorporate the latest technology which runs on a Windows operating platform. This personal computer workstation allows you to change system set-pointsview system alarms and event legsanswer alarmstrouble-shoot problemsmake changes to time of day schedules and manage the facility's chiller plant. This Summit System also allows for complete control of the facility from one locationeven a remote location.



The chill water air handling unit system is a substantial upgrade to contained rooftop units because this combination is more durableenergy efficient and easier to maintain.



Hull



The watertight compartments of the hull were recently restored by the installation of seven transverse bulkheads that are fitted with centerlinewater tight "dagger type" doors that are equipped with alarms. Vents were upgraded with 6" gooseneck vents with bug screens and occasional power vents installed to provide ventilation for the area. The work was inspected by American Bureau of Shipping personnel. Murphy water sensors alarms were installed in each compartment at the centerline.



Lighting was provided by fluorescent fixtures installed through the length of the hull. The bow compartment houses the barges' pumpswhile the midbody compartment serves as extra storage.



HULL EQUIPMENT



� (2) Bell & Gossett chiller pumps powered by 15 horsepower electric motors
� (2) Lakos 6" deepwell pumps with closed sea chest valves
� 6" gooseneck power vent
� (2) Q-Mark electric heaters
� Liberty Model 372 / LE 41 A sewage pump
� 7'6" x 20' x 8' septic slop tank
� Scot Model 80 discharge pump driven by a 5 horsepower electric mower
� (2) Long 25 horsepower Electro Hydraulic elevator power units and control panel



Alternative Uses

� Restaurants

� Showroom / Concert Venue



� Night Clubs



� Multi-Purpose Entertainment Complex



� Gaming Support Facility



� Casino



� Office Building



� Retail Center



� Mixed Use Facility



� Convention Center





All World Wide locations as well.



Freshwater location condition reported very good.
