Base Vehicle Specification:

Ford E-350

Type Left Hand Drive, cargo van

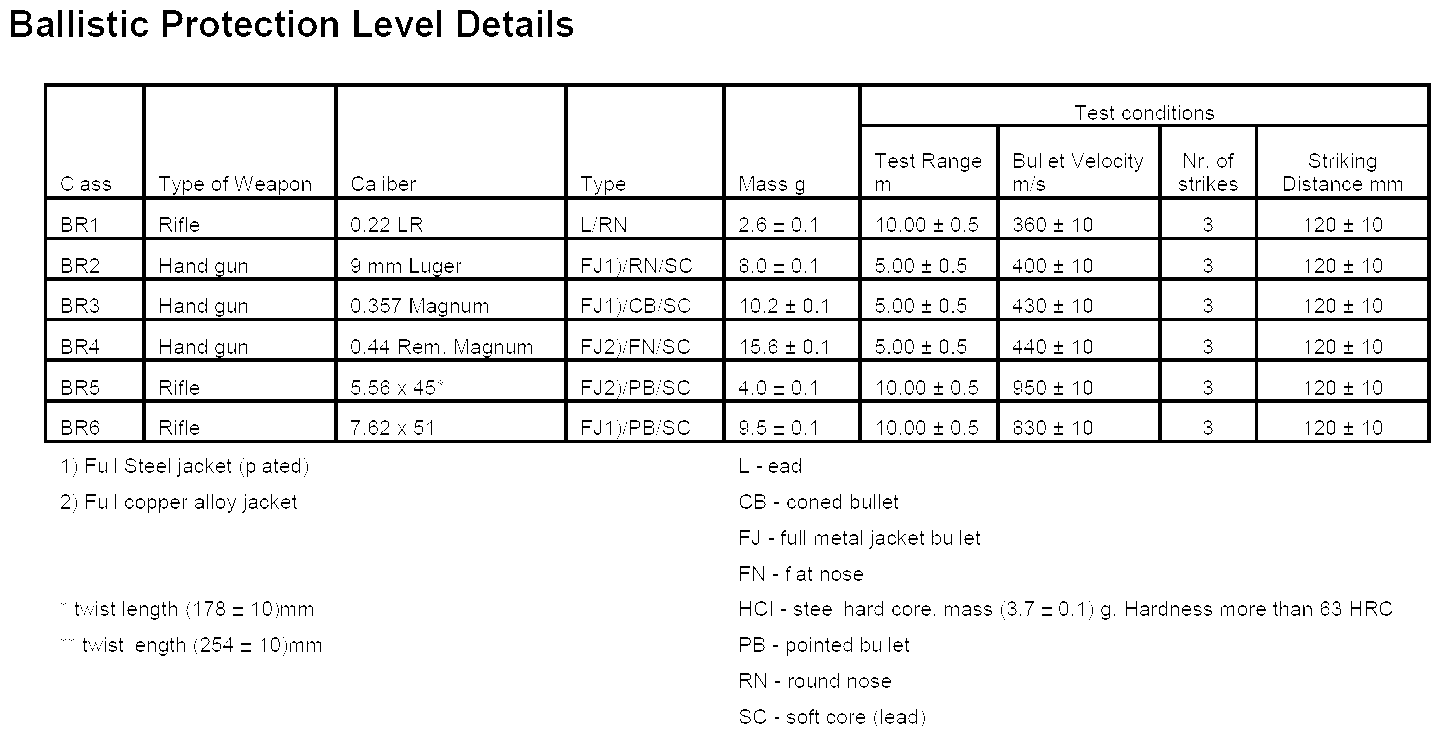

- Five side armoring of passenger compartment (roof and verticals) to provide protection against 7.62x51mm M80 NATO Ball ammunition, in accordance with CEN Level BR6, at zero degree obliquity angles.

- Floor of the vehicle is fitted with a blast protection to protect occupants against fragmentation from simultaneous detonation of 2 DM-51 German ordnance hand grenades or equivalent.

- Vehicle’s armor plates are stitch-welded using high-intensity MIG welders. The above process ensures the structural integrity is uncompromised by thermal and chemical variations of the material.

- Ballistic steel interior frame provides overlap and backup protection for the large-surface principal impact areas such as the doors and windows. All door/window openings are overlapped.

- Five sided armoring of passenger compartment (roof and verticals) to provide protection against 0.44 Magnum – CEN B4

- Vehicle’s armor plates are stitch-welded using high-intensity MIG welders. The above process ensures the structural integrity is uncompromised by thermal and chemical variations of the material.

- Vehicle armoring constructed in such a way as to ensure that a projectile following a linear or angled path shall not enter the vehicle’s interior without contacting the armor material. In addition to this, the possibility of a projectile entering the vehicle’s interior due to a ricochet from the armor shall also be minimized.

- A combination of glass, polycarbonate and Mylar are bonded together using the latest technology, producing one of the finest transparent armors available while incorporating the following qualities:

- Glass thickness: 39mm.

- Manufacturer designed front modular raised windshield frame allows for maximum airflow from front vents for quick defrosting/defogging in cold & damp weather conditions.

- Anti-spall shield protecting against shattering glass

- Multiple impact protection

- Finest optical quality, Minimal distortion

- No de-lamination, no discoloration from UV rays

- ASSA 6 pin high security locks on all entry points – key #1 for front doors and rear door, key #2 for curbside door, key #3 for bulkhead sliding door.

- Electrical slam locks, solenoid activated on side & rear doors operable by driver pushbutton or outside key.

- Scratch resistant stainless steel plates on outside-keyed entry positions.

- Armor overlap at all doors to prevent penetration through door posts and pillars.

- Door pillars reinforced to accommodate the additional weight of the armored door.

- Heavy-duty nylon door travel retainers.

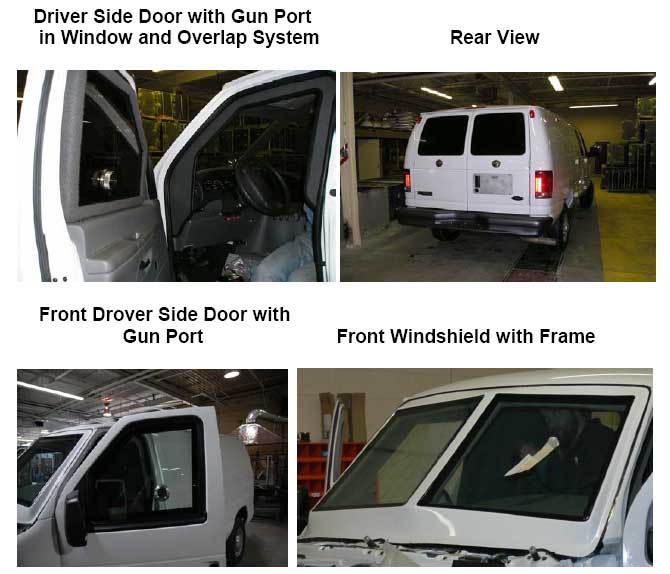

- Streit designed HD modular curb side door with gun port.

- Streit designed HD modular rear door with gun port.

- Bulkhead with sliding door and deadbolt - lockable from driver side.

- All electrical equipment standard to this vehicle shall be tested and modified as necessary to protect against the armoring process.

- Any additional (optional) electric equipment installed on the vehicle shall be individually fused; all wires are loomed and clearly marked, as required by vehicle safety standards.

- Ceiling mounted control panel for solenoid switches and door ajar lights.

- 3 switched dome lights – 1 in cab, 1 in cargo and 1 in rear messenger area.

- Engine bay flank armor protection

- Large door frame overlaps

Armored vehicle weight: 9,104lbs*

* The weight of armored vehicle may vary due to optional equipment installed or design changes requested by the client. The exact weight of the vehicle is available after the construction process is complete.

- 2 gun ports – 1 in curbside modular door and 1 in rear modular door.

- 2 folding jump seats with 2 point seatbelt – mounted in rear messenger area.

- 1 folding jump seat in cab area.

- 5 run flats including spare tire.

- Rear A/C unit mounted in messenger area.

- Back up alarm.

- Wire mesh headlamp and tail light covers.
