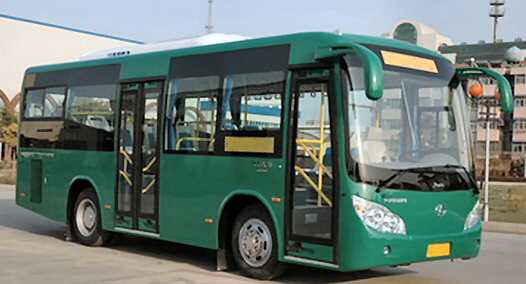

CITY BUS YCK6805HC2
|
TYPE: |
City Bus |
|
DESCRIPTION: |
Luxury City Bus 21 -1 Pax, Holding up to 45 Pax |
|
PRICE: |
Upon Request |
|
PACKING: |
Ex Works |
luxury city bus 21 + 1 pax, holding up to 45 pax
|
Complete bus parameter |
|
Engine parameter |
|||
|
Overall length（mm） |
7980 |
Model |
YC4G180-20 |
||
|
Overall width（mm） |
2400 |
|
|
||
|
Overall height（mm） |
3100 |
Position |
Rear mounted |
||
|
Complete bus mass (Kg) |
6450 |
Type |
In line, pressurized, mid-cooling |
||
|
Max loading mass（Kg） |
9500 |
Max power（Kw/ps） |
132/180 |
||
|
Seats |
21+1, holding 45 persons |
Max torque (N.m/rpm） |
660/1300-1500 |
||
|
Max speed (km/h) |
90 |
Displacement (ml) |
5202 |
||
|
|
|
Fuel type |
Diesel |
||
|
|
|
Exhaust standard |
Euro 2 |
||
|
Main configuration of chassis |
|||||
|
|
|
||||
|
Gearbox |
Five-speed gearbox |
||||
|
Front axle |
“I” shape section |
||||
|
Rear axle |
Integral, singe-stage deceleration |
||||
|
Suspension |
Multiple leaf steel plate spring |
||||
|
Steering |
Hydraulic power steering, left hand driven (LHD) |
||||
|
Service brake |
Drum type dual-circuit air brake |
||||
|
Parking brake |
Energy storage spring parking braking |
||||
|
Fuel tank |
100L |
||||
|
Tyre |
8.25-20 bias tyre |
||||
|
Main assembly of bus body |
|||||
|
Body structure |
Rectangular steel pipe welding, whole phosphatizing |
||||
|
Interior trimming |
Common interior trimming |
||||
|
Door/door pump |
Front single middle double swing-in passenger doors |
||||
|
Window & windshield |
Hermetic side windows, panoramic laminated front windshield |
||||
|
Safety scuttle |
One safety scuttle |
||||
|
Air-conditioner system |
Non-independent Air-conditioner system (30000Kcal/h), A-alloy airway |
||||
|
Rearview system |
Manual reversing mirror, interior-viewing mirror |
||||
|
Audio-video system |
Radio |
||||
|
Seat |
Smooth surface plastic seats |
||||
|
Lamp |
Front and rear combined lamps |
||||
|
Guidepost |
Front and rear simple guidepost |
||||
|
Meter and dashboard |
New style combined dashboard |
||||
|
Paint |
Fine paint |
||||
|
Other service facilities |
Plastic-coating handrail, fire extinguisher, half breadth driver’s curtain, anti-skid floor leather, driver’s fan |
Specification and photos are not contractual and are subject to verification upon inspection
