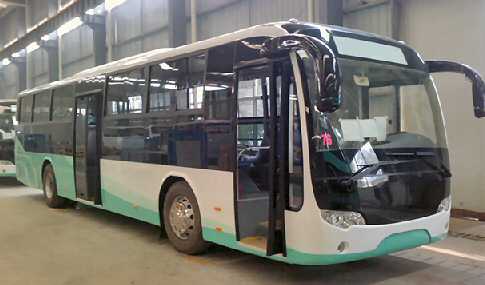

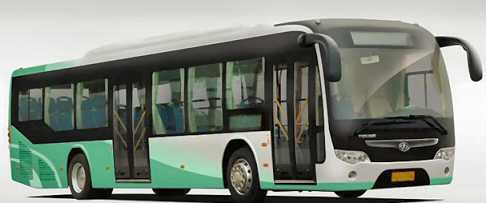

CITY BUS YCK6128HC
|
TYPE: |
Bus |
|
DESCRIPTION: |
Luxury City Bus 86 Pax |
|
PRICE: |
Upon Request |
|
PACKING: |
Ex Works |
luxury city bus 36 +1 seats, holding 86 pax
|
Complete bus parameter |
|
Engine parameter |
|||
|
Overall length（mm） |
11980 |
Model |
YC6G270-20 |
||
|
Overall width（mm） |
2500 |
|
|
||
|
Overall height（mm） |
3250 |
Position |
Rear mounted |
||
|
Complete bus mass (Kg) |
10500 |
Type |
Water-cooling, direct injection, pressurized, mid-cooling |
||
|
Max loading mass（Kg） |
17200 |
Max power（Kw/ps） |
199/270 |
||
|
Seats number |
36+1, holding 86 persons |
Max torque (N.m/rpm） |
1080/1400-1600 |
||
|
Max speed (km/h) |
90 |
Displacement (ml) |
7800 |
||
|
|
|
Fuel type |
Diesel |
||
|
|
|
Exhaust standard |
Euro 2 |
||
|
Main configuration of chassis |
|||||
|
|
|
||||
|
Gearbox |
Six-speed gearbox |
||||
|
Front axle |
“I” shape section |
||||
|
Rear axle |
Integral, singe-stage deceleration |
||||
|
Suspension |
Multiple leaf steel plate spring |
||||
|
Steering |
Hydraulic power steering, left hand driven (LHD) |
||||
|
Service brake |
Drum type dual-circuit air brake |
||||
|
Parking brake |
Energy storage spring parking brake |
||||
|
Fuel tank |
200L |
||||
|
Tyre |
275/70R22.5 radial tyre |
||||
|
Main assembly of bus body |
|||||
|
Body structure |
Rectangular steel pipe welding, whole phosphatizing |
||||
|
Interior trimming |
Molding interior trimming |
||||
|
Door/door pump |
Front single and middle double swing-in passenger doors |
||||
|
Window & windshield |
Hermetic side windows, panoramic laminated front windshield |
||||
|
Safety scuttle |
Front and rear safety scuttles, with electric ventilator fan |
||||
|
Air-conditioner system |
Non-independent Air-conditioner system (30000Kcal/h), A-alloy airway |
||||
|
Rearview system |
Manual rearview system and interior-view mirror |
||||
|
Audio-video system |
Radio |
||||
|
Seats |

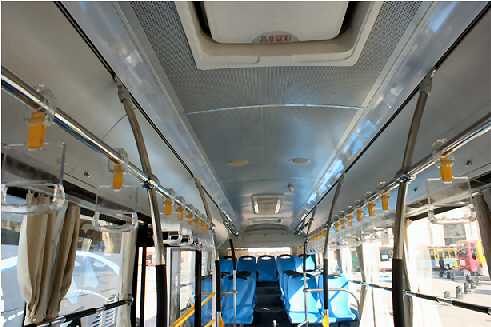

Luxury smooth surface city bus seats, flying rings, stainless steel handrail |
||||
|
Lamp |
Front and rear combined lamps |
||||
|
Guidepost |
Simple front and rear guidepost |
||||
|
Paint |
Fine paint |
||||
|
Other service facilities |
Plastic coating handrail, fire extinguisher, driver’s fan, half breadth driver’s curtain, anti-skid floor leather |
||||
Specification and photos are not contractual and are subject to verification upon inspection
