BUS ZGT6101DH 43+1+1 PAX





TYPE:

Bus

DESCRIPTION:

Bus ZGT6101DH 43+1+1 Pax

PRICE:

Upon Request

PACKING:

Ex-Works





BUS ZGT6101DH 43+1+1 PAX











ZGT6101DH



Dimension (L*W*H)

10360mm*2500mm*3610mm

Wheel Base

5050 mm

Top Speed

±115 km/h

Fuel Tank Capacity

200 L

Fuel Consumption

±23L perl/100km

Seat  Capacity

43+1+1

Engine

Model

YC6A240-20 (Euro II)

Max. Power

177 kw/2300rpm (240HP)

Max. Torque

890 N.m/1400-1600 rpm

Displacement

7.252L

Chassis

Clutch

Single disk, dry, operated far hydraulically.

Gearbox

Manual, five gear-full synchromesh

Rear Axle

single-reduction, hypoid gear, ratio:4.5

Brake

Pneumatic dual-circuit service brake, energy-accumulate spring parking brake

Steering Gear

Integral power steering system

Tire

9.00R20

Suspension

Steel spring (optional NEWAY air suspension)

ABS

Optional

Retarder

Optional

Body Equipment

Audio Video

Radio, (optional DVD, 17”LCD)

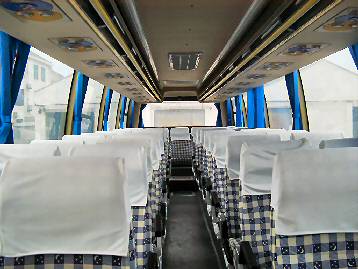

Passenger Seat

2+2 arrangement, Luxurious, high backrest, adjustable seat, adjusted transversely

Passenger Door

air pressure one front door, outward swung, mechanical door lock, (optional electrical control door lock)

Luggage Compartment

5m3

Rear View Mirror

Manual rabbit ear shape (optional electrical mirror)

Other Equipments

1 unit vent, sun curtain, side window curtain, inner rear view mirror, luxury decoration, full glued window, return vehicle monitor, reading lamp, step lamp,

Optional Equipments

Digital clock, refrigerator, water counter

Water heater system

Optional 30000kcal/h

Air conditioner

24000kcal/h









Specification and photos are not contractual and are subject to verification upon inspection
