OFFER#

BUS YCK6126

TYPE:	Bus
DESCRIPTION:	Economical Bus YCK6126 HL3 - 64-1-1 Passengers
PRICE:	Upon Request
PACKING:	Ex-Works

ECONOMICAL BUS YCK6126 HL3

Complete bus parameter			Engine parameter
Overall length (mm)	11980		Model	C28300 20
Overall width (mm)	2550		Manufacturer	Dongfeng Cummins Co.
Overall height (mm)	3490		Position	Rear mounted
Wheelbase (mm)	6200		Type	Water-cooled, direct injection, pressurized, mid-cooling
Complete bus mass (Kg)	12050		Rated power (Kw/HP)	206/280
Max loading. mass (Kg)	17200		Displacement (ml)	8300
Rated seats	64+1+1(3+2 layout)		Fuel type	Diesel
Max speed (km/h)	110		Exhaust standard	Euro 2
Chassis parameter and configuration
Chassis		Yanjing bus chassis
Gearbox		Six speed gearbox
Front axle		5.5T front axle
Rear axle		11T rear axle
Suspension		Multiple leaf spring
Steering		Integral hydraulic power steering, left hand drive (LHD)
Service brake		Drum type dual-circuit air brake
Parking brake		Energy storage spring parking brake
Auxiliary brake		ABS and automatic adjustable arm
Fuel tank		300L
Tyre		11R22.5 tubeless radial tyre, stainless steel wheel cover
Main assembly of bus body
Body structure		Rectangular steel pipe welding
Interior trimming		Molded soft interior trimming
Door and door pump		Pneumatic out-swing passenger door (1door)
Windows and windshield		Sliding side windows with curtain, panoramic laminated front windshield
Safety scuttle		2 safety scuttles with electric ventilation fans

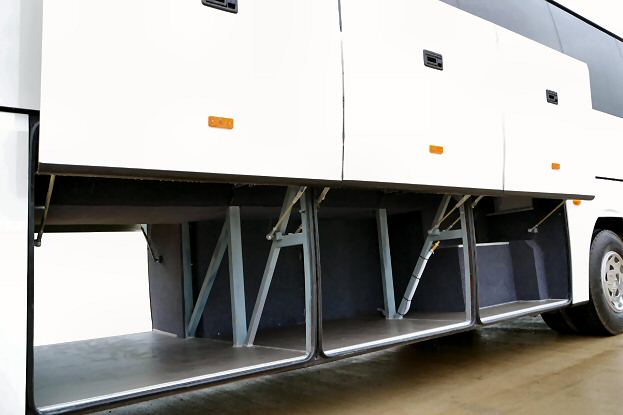

Luggage compartment		Overturned type luggage door, luxury lock
Luggage rack		Common luggage rack, no reading lamps
A/C system		Non-independent A/C (30000Kcal/h)
Rearview mirror		Manual reversing mirror
Audio-video system		AM/FM radio
Seats		High back nonadjustable seats (3+2 layout), guard rail
Lamp		Front and rear combined lamps, inner viewing mirror
Paint		Imported paint
Other service facilities		Electronic clock, thermometer, floor leather, tachograph

PASSENGER BUS MODEL: MPB-FJ6126H

Dimension	Overall length（mm）	11980	Engine	Model	C300 20
	Overall width（mm）	2540		Manufacturer	Cummins, China
	Overall height（mm）	3490		Position	Rear mounted
	Rated max. mass（Kg）	12900		Type	water cooling, pressurized, mid-cooling, in line
	Rated max. Load mass (kg)	18000
				Max. power（ Kw/ps）	221/300
	Seat capacity	64+1+1		Max. torque（N.m/rpm）	1125/1200-1400
				Displacement (ml)	8300
	Max. Speed (km/h)	110		Fuel	Diesel
				Exhaust standard	Euro II
Item			Basic configuration
Chassis	Chassis		FJ6120D20
	Transmission		Six speed
	Front axle		“工” section,5.5T front axle
	Rear axle		Unitary, single reduced,11T rear axle
	Suspension		Multiple-leaf spring
	Steering		Hydraulic power steering
	Brake	Service brake	Drum type dual-circuit air brake
		Parking brake	Power storage spring parking brake
		Auxiliary brake	ABS, auto slack adjuster
	Fuel tank		320L
	Tyre		11R22.5 meridian tyre, stainless steel wheel cover
Main assembly of body	Body structure		Rectangle steel tube welding
	Interior trimming		Molded soft inner trimming
	Door& door pump		Front pneumatic swing-out A-alloy door
	Window& Windshield		Enclosed side windows(the last one of both sides are sliding), panoramic compressed front windshield, with side curtains
	Safety ceiling window		Two safety scuttles, electric ventilation fan
	Luggage Compartment		Level moving luggage door, door lock
	Luggage rack		Common luggage rack with air outlet
	Air conditioning		Non-independent A/C(30000/kcal), Bitzer compressor
	Audio video system		AM/FM radio
	Rear-view system		Manual reversing mirror
	Rain wiper		Electric bi-direction rain wiper
	Passenger seats		High-back non-adjustable seats(3+2 layout) without armrest, guardrail
	Lights		Unitary Front/Rear combined Lights

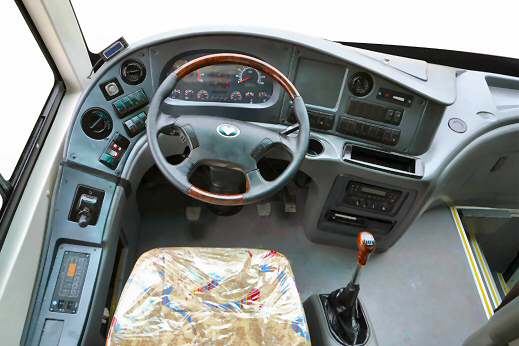

	Instrument panel		Combined instrument panel
	Painting		Imported paint
	Floor		Anti-slide & high-quality floor leather
	Others		Electronic clock, thermometer, driver’s shading curtain, tachograph

Specification and photos are not contractual and are subject to verification upon inspection
