BUS YCK6106HG





TYPE:

Bus

DESCRIPTION:

Bus YCK6106 HG (A7)

PRICE:

Upon Request

PACKING:

Ex-Works

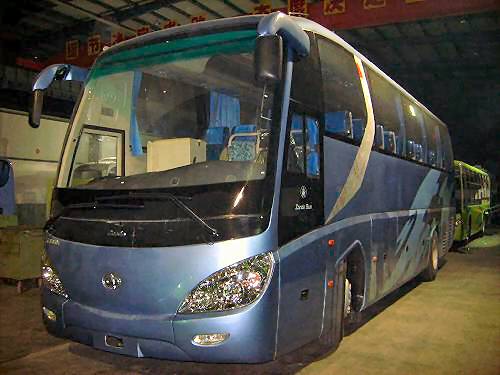

BUS YCK6106HG (A7)











PASSENGER BUS MODEL: YCK6106HG (A7)















Dimension

Overall length（mm）

10490











Engine

Model
YC6A240-20

Overall width（mm）

2500

Manufacturer

Guangxi YuChai Machinery Co., Ltd



Overall height（mm）

3700

Position

Rear mounted



Rated max. mass（Kg）



13835

Type

water cooling, direct ejection, inner cooling, pressurized



Seat capacity

41+1+1



Max. power（ Kw/ps）

177/240





Max. Speed (km/h)

110



Max. Torque (N.m/rpm)

860/1400-1600



Exhaust standard

Euro II

Fuel

Diesel oil





Item

Basic configuration







Chassis

Chassis

Zhongda Yanjing YJ6103B



Transmission

5 speed



Front axle

“工” section



Rear axle

unitary，single reduced



Suspension

Multiple-leaf spring



Steering

Integral hydraulic power steering



Brake

Service brake

Drum type dual-circuit air brake

Parking brake

Power storage spring parking brake

Auxiliary brake

ABS, auto-adjusting arm,

Fuel tank

220L



Tyre

10R20 Tubeless tyre



others

Stainless wheel cap















Main assembly of body

Body structure

Rectangle steel tube welding，whole phosphating

Interior trimming

Molded soft inner trimming



Door& door pump

Front pneumatic open-out A-alloy door



Window& glass

Enclosed side sliding windows



Safety ceiling window

Front and rear safety scuttle, electric ventilation fan



Luggage space

Turning type galvanization door, luxury lock



Luggage rack

Luxury rack, new style reading light



Air conditioner

kelin top mounted A/C (26,000kcal/h), compressor



Rear system

Manual luxury reversing mirror



Video system

AM/FM cassette recorder



Seats

High-back adjustable seats (side movable, with foot rest)



Lights

Unitary Front/Rear grouped Lights



Painting

Import  paint



Others

Electrical clock, thermometer, guard rail, domestic anti-skid floor leather, enclosed side window curtain, strip light

Warrantee:

within one year and/or 50000km.











Model NJL6118 24-53 PAX





Model

NJL6118



Overall Dimension

 Length (mm)

10,960



 Width (mm)

2,480



 Height (mm)

3,550



Wheel base (mm)

5,600



Vehicle Weight

 Curb (kg)

11,000



 Gross (kg)

16,000



Seating capacity



24-53



Fuel tank (L)

350



Engine

Model

YC6J245-30 (Diesel engine)



Emission Level

Euro Ⅲ



Manufacturer

YUCHAI GROUP



Displacement (cc)

6,500



Max. power (Kw/rpm)

180kw/2,500rpm



Max. Torque (Nm/rpm)

890/1200-1700



 Tires

 Quantity

6+1



 Size

11R22.5, local brand



Chassis Frame

High strength pressed steel



Clutch

Single dry disc



Gearbox

6-speed manual



Brakes

Front and rear drum brakes



Body Structure

Black steel with metal sheet



Standard Configuration



1. Air-conditioning



2. ABS brake system



3. Roof Ventilator



4. Pneumatic out-swing door with remote control Passanger door



5. Wheel cover



6. Sunvisor/Curtain



7. Passenger seats, high backrest, adjustable, with armrest



8. Nomal floor carpet



9. MP3 player/radio



10. Digital clock with temperature gauge









Optional Equipment



1. Engine

Model

YC6G270-30 (Diesel engine)



Emission Level

Euro Ⅲ

Manufacturer

YUCHAI GROUP

Displacement (cc)

7,800

Max. Power(KW/rpm)

199kw/2200rpm

Max. torque (Nm/rpm)

1080/1200-1600

1. Heating System

900

2. Hydraulic Retarder

  2,105

3. Front disc and rear drum brakes

1,300

4. Metallic paint

750

5. DVD player + 15" & 17" LCD

950

Note)

1. All the prices are based on FOB

2. Deliver lead-time is 45 days after payment received

3. Payment terms: 30%T/T down payment +70% T/T or irrevocable L/C at sight

5. Shipment: RO-RO



Specification and photos are not contractual and are subject to verification upon inspection
