BTR80A





TYPE:

Armored Vehicle

DESCRIPTION:

Armored Personnel Carrier BTR-80A

PRICE:

Upon Request

PACKING:

As is, Where is




armored personnel carrier btr-80a





GENERAL INFORMATION

Designations

BTR-80A

Manufacturer(s)

GAZ, now Arzamas Machinery Construction Plant

Status

Production as required. In service with Russia and others.

Production Period

circa 1995-present

Production Quantity

over 300

Type

APC

Crew

2 + 8

Length, overall

7.7m

Length, hull

7.7m

Width, overall

3.0m

Height, overall

2.8m

Combat Weight

14550kg

Unloaded Weight

n/a

Radio, external

R-4163-50U

Communication, crew

R-174 intercom



FIREPOWER

Main Armament

30mm 2A72 gun

Ammunition Carried

300x30mm

Gun Traverse

360

Elevation/Depression

+70/-5

Traverse Rate

n/a

Elevation Rate

n/a

Gun Stabilization

no

Rangefinder

n/a

Night Vision

yes

Auto-Loader

yes

Secondary Armament

7.62mm PKTM (coaxial)
small arms

Ammunition Carried

2000x7.62mm



              BTR-80A



MOBILITY CHARACTERISTICS

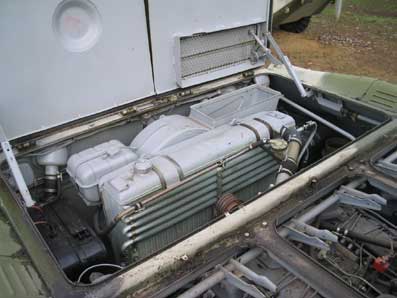

Engine

YaNZ-238M2 V8 turbocharged diesel

Transmission

manual (5 forward, 1 reverse)

Horsepower

240hp

Suspension

torsion bar with hydraulic shock-absorbers

Power/Weight Ratio

17.9hp/t

Configuration

8x8

Speed, on road

80km/h (1)

Wheelbase, overall

4.40m

Fuel Capacity

n/a

Tires

11.50 x 400-457 (tubeless)

Range, on road

600-800km

Ground Pressure

n/a

Fuel Consumption

n/a

Gradient

60%

Turning Radius

n/a

Side Slope

42%

Ground Clearance

0.48m

Vertical Obstacle

0.5m

Angle of Approach

n/a

Trench Crossing

2.0m

Angle of Departure

n/a

Fording

amphibious



SURVIVABILITY FEATURES

Smoke Laying

6 x 81mm smoke grenade launchers

NBC Protection

yes

Armor Details

n/a



NOTES

(1) Maximum speed 9km/h on water.













Specification and photos are not contractual and are subject to verification upon inspection
