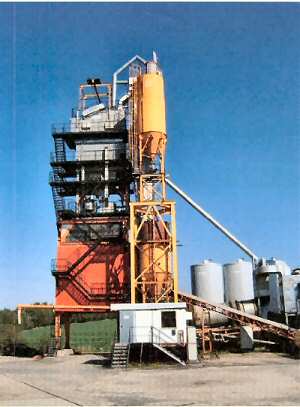

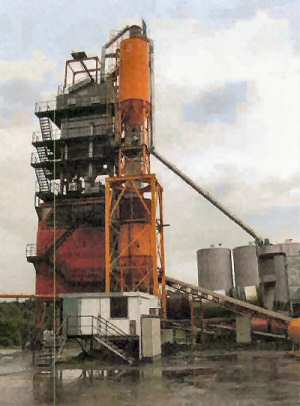

Teltomat Asphalt Mixing Plant Typ V/MT 120 C  /  capacity  120 t/h  /Made in Germany

Spare parts available directly by the manufacturer Teltomat in Teltow near Berlin.



YOM 1992, new computer control system installed in 2005!!!!!!!!!!!!!!!!

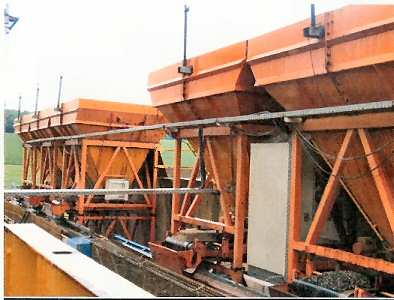

8 cold bins hopper with belt capacity each 8 m³ ( 3 units and 5 units in line )

1 Belt  11m x 0,65 m

1 Belt  22m x 0,65 m

1 Belt  13 m x 0,65 m

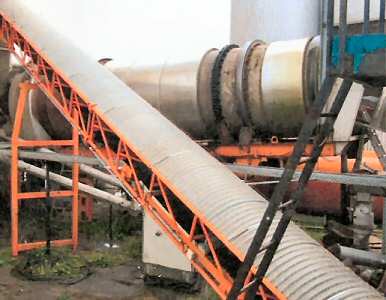

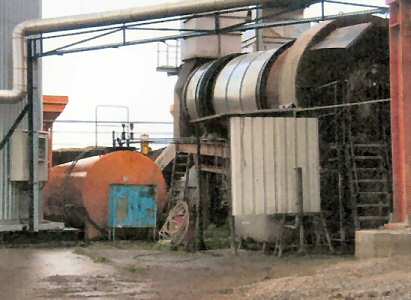

1 dust drum  Bj. 1999 2,0 m x 8,0 m with chain

1 Burner  Fabr. Körting Bj. 1995 Typ CK 100 / 10,0 -EL - K 10 MW

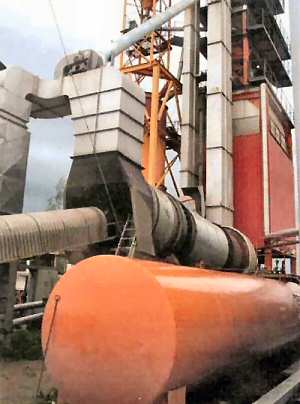

1 Diesel Tank   30.000 L, lying

1 Dust Plant  Fabr. BMD Garant Bj. 1991, Filtertyp 2,75/2,7/330

1 Radial Ventilator  Teltomat Bj.1991, 080/400-4, 66 kW, 1.480 U/min.

1 sat div. conveyor screw, different size, long 270 mm flow meter, for coarse and  fine   dust

1 Filler Elevator

1 self Filler  Silo  ca. 35 to

1 foreign Fillersilo, high standing ca. 55 t

1 Hot Elevator with double chain drive

1 screening machine, with 6 screening decks

1 hot fire box, 6 units + Bypass ca. 50 t, Bj.1999

1 twin shaft mixer ca. 1500 kg capacity, Bj.1999

1 Bitumen doseur

1 RC bin and batcher, ca. 10 m³ with rust (into the mixer)

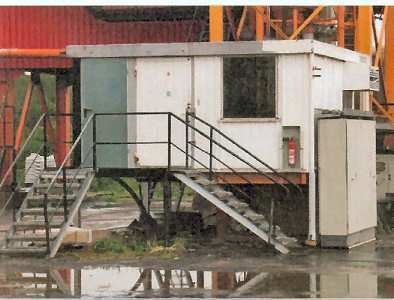

1 Comando and computer control cabin with Teltomat Teltronik   system, CT 2004/CS 21-AS pro, YOM. 2005

1 Air Compressor S 15/750 Fabr. Boge

1 Hot Mix Storrage Silo  2 x 75 t, 1 x 12 t

1 Bucket for delivery 2000 kg



This Plant is with his 3 Bitumentanks for sell  and Thermal heating Plant.
