OFFER#

TOTAL TIME:

EXTERIOR:

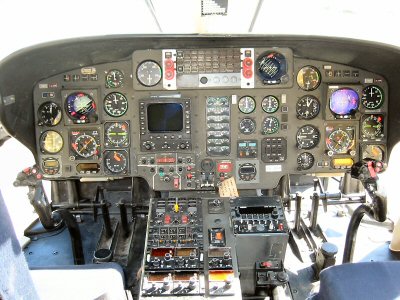

AVIONICS:

EQUIPMENT:

8007 hours

White and Orange

Weather Radar

AFCS

Flight Director Coupler

VHF Com 1

VHF Com 2

VOR/ILS 1

VOR/ILS 2

ADF 1

ATC XPNDR

Radio Alt – Dual Indic

DME

CVR

ELT

GPS

Bendix RDR 1400C

SFIM 155D

SFIM 85D3

Collins VHF22A

Collins VIR32

Collins VIR 32

Collins ADF 462

Collins TDR90

Collins ALT55B

Collins DME42

Fairchild A100

Artex 406

Garmin 165

Single Pilot IFR

Dual Controls

Emergency Floatation Gear, fixed provisions

Emergency Floatation Gear, removable parts

Overhead life rafts

Pilot and co-pilot seats adjustable in height (airline type)

Remaining fuel flow meter

Fuel anti-icing system

First Aid Kit

Nose Wheel Caster Lock

Fire extinguisher Cockpit

Provisions for 11 seat passenger seating

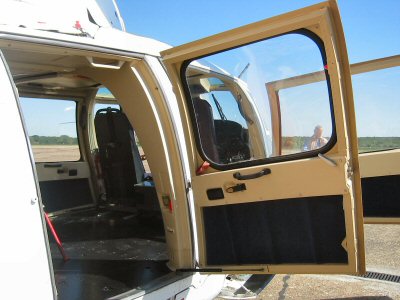

Push Out Windows in aft hinged passenger doors

HEEL (Helicopter Emergency Egress Lighting)

COMPONENTS:

MAJOR INSPECTION: 10year/5000hours inspection completed 13^th March 2000 at Airframe Total Hours 4228:59

Item	Service Life (hrs)	Remaining Time (hrs)
M/R Blades	20,000	11993
Starflex	2,600	2047
Sleeves	4,400	2252
Spherical Thrust Bearings	3,500	2595
Main Rotor Shaft	3,000	574
Main Gearbox	3,000	1048
Tail Rotor Gearbox	3,000	2984
Tail Rotor Blades	2,500	(5x2052)(2x2485)(1618)(1573)(2x1942)
Main Rotor Servos	3,000	1729/2053/2286
Tail Rotor Servo	3,000	880
Float bags aft	180 mth	31 mth
Float bag	180 mth	95/75 mth
5000 Hour inspection	5,000	1222

Engines

No.1 Engine Arriel 1C1

Item	Service Life (hrs)	Remaining Times (hrs)
Module 1 (Acc. Gear Box)	180 mth	132 mth
Module 2 (Axial Compressor)	6,000	3740
Module 3 (Gas Generator.)	3,000	228
Module 4 (Free Turbine.)	6,000	2000
Module 5 (Red. Gear Box)	3,000	997
Fuel Control	3,000	2956

No.2 Engine Arriel 1C1

Item	Service Life (hrs)	Remaining Times (hrs)
Module 1 (Acc. Gear Box)	180 mth	129 mth
Module 2 (Axial Compressor)	6,000	3152
Module 3 (Gas Generator)	3,000	2964
Module 4 (Free Turbine.)	6,000	1692
Module 5 (Red. Gear Box)	3,000	1007
Fuel Control	3,000	2053

NB: Aircraft offered for sale subject to contract, prior sale, withdrawal from the market and information regarding any aircraft or helicopter and provided verbally or in written documentation and/or contained within this e.mail or associated paper-work should be taken as a guide only in determining the suitability, including that aircraft or helicopters specification and/or performance. We highly recommend that any buyer or lessee perform their own inspections and due diligence to verify any and all technical, perfomance and specification information contained therein including OEM claims.

PLEASE BE ADVISED THAT INFORMATION INCLUDED IS CONFIDENTIAL IN NATURE AND IS BASED ON PRE-EXISTING BUSINESS RELATIONSHIP WITH THE LEGAL OWNER OF PROPERTY DESCRIBED HEREIN (IF APPLICABLE). AS SUCH, UPON RECEIPT OF SAID INFORMATION THE RECEIVER ACKNOWLEDGES THAT ANY UNAUTHORIZED CONTACT WITH SAID LEGAL SELLER WILL BE CHARACTERIZED AS A BREACH OF CONFIDENTIALITY AND SAID AGREEMENT MAY BE ENFORCED UNDER EXISTING LAW OR IN EQUITY.

This paper was prepared by General Equipment Corp.
The paper represents an offer of a partner of General Equipment Corp.
All rights are reserved by and for General Equipment Corp..
All content and ideas of this paper are the property of General Equipment Corp.

TYPE:	Helicopter

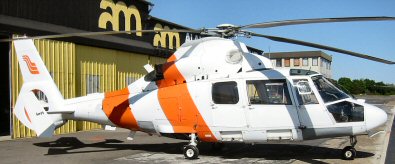

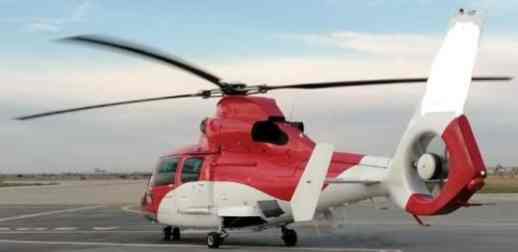

DESCRIPTION:	Eurocopter AS 365N1 for Sale
PRICE:	Upon Request
PACKING:	As is, Where is
