APC HUN





TYPE:

APC

DESCRIPTION:

Hun APC

PRICE:

Upon Request

PACKING:

Ex Works






hun apc



WHEELED ARMORED VEHICLE FIRE SUPPORT HUN

On base APC BTR-60, TAB-71, BTR-70, TAB-77

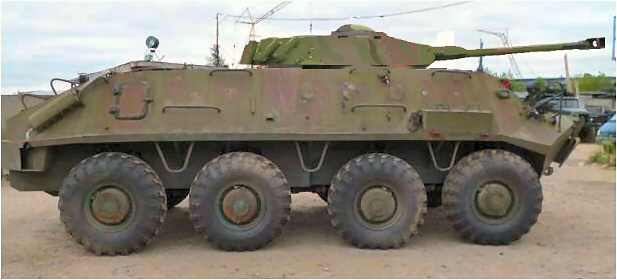

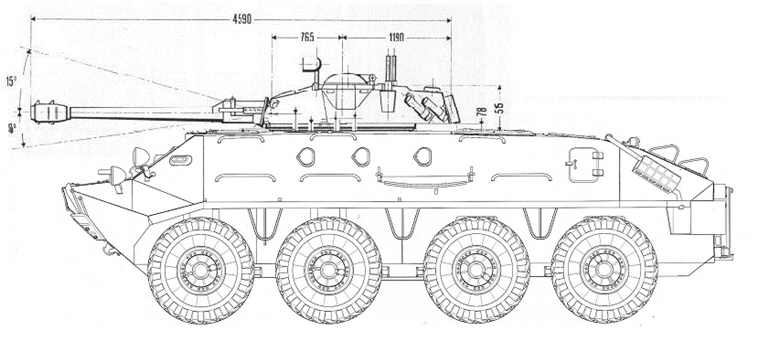

Hun on base BTR-60/TAB-71





Specifications



Weight

11 tons

Crew

4

Length of Body

7.56m

Width

2.63m

Height

2.7m

Base

3.7m

Clearance

0.475m

Maximum Speed

105km/h

Fuel Capacity

290 litre

Operational Range

1000km

Obstacle



Ascent

30⁰

Wall

0.6m

Trench

2m

Engine

Diesel Cummins

Cylinders

L4

Horsepower

129hp (96kW)

Elecric motor

4 x 30KW

Wheels

8x8

Tyres

13,00-18









Armouring



Hull Front top

9mm

Hull Front bottom

7mm

Hull Front middle

9mm

Side Hull top

7mm

Side Hull bottom

7mm

Rear Hull top

5mm

Rear Hull Middle

7mm

Bottom Hull

5mm

Roof Hull

5mm

Turret



Type

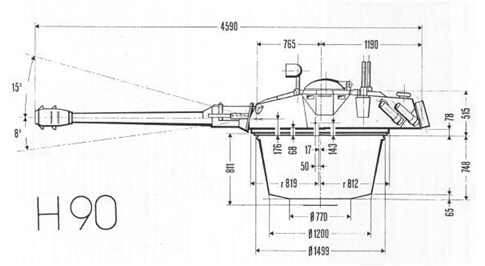

GIAT H90

or

GIAT Lynx-90

or

Denel  Eland/Ratel

Armaments



Main Gun

90mm CN-90-F1                        43 projectiles
or

90mm DEFA-921                        43 projectiles

or

90mm GT2                                 43 projectiles

Coaxial MG

7,62x54R SGMT / PKT / M86          3500rds

Anti Aircraft MG

12.7x108 DshKM/NSVT/M87          200-300rds

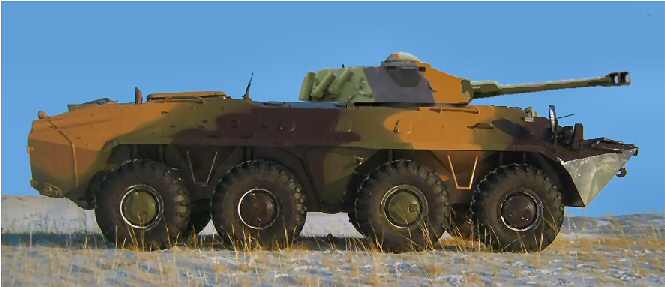

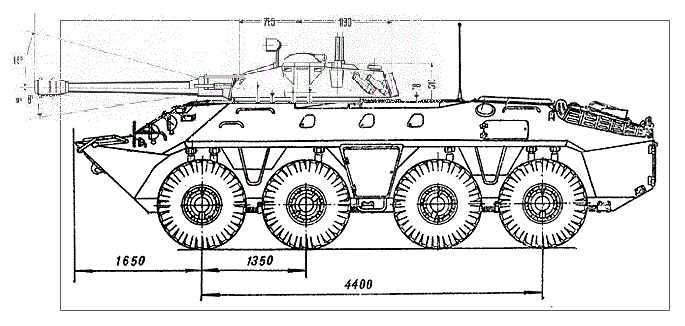

Hun on base BTR-70/TAB-77





Specifications



Weight

13 tons

Crew

4

Length of Body – Gun Fwd

7.54m

Width

2.9m

Height

2.5m

Rut

2.64m

Clearance

0.475m

Maximum Speed

105km/h

Fuel Capacity

290+120 litre

Operational Range

1200km

Obstacle



Ascent

30⁰

Wall

0.5m

Trench

2m

Engine

Model  Cummins ISF3.8s4154 and 4 electric motor 30kw

Cylinders

L4

Horsepower

154hp (115kW)

Electic motor

4 x 30KW

Wheels

8x8

Tyres

13,00-18





Armouring



Hull Front top

8mm

Hull Front bottom

10mm

Side Hull top

6mm

Side Hull bottom

6mm

Rear Hull top

6mm

Rear Hull Middle

6mm

Bottom Hull

6mm

Roof Hull

6mm

Turret



Type

GIAT H90

or

GIAT Lynx-90

or

Denel  Eland/Ratel

Armaments



Main Gun

90mm CN-90-F1                        43 projectiles
or

90mm DEFA-921                        43 projectiles

or

90mm GT2                                 43 projectiles

Coaxial MG

7,62x54R SGMT / PKT / M86          3500rds

Anti Aircraft MG

12.7x108 DshKM/NSVT/M87          200-300rds







Specification and photos are not contractual and are subject to verification upon inspection
