58M FPB





TYPE:

Patrol Boat

DESCRIPTION:

58M Fast Patrol Boat

PRICE:

Upon Request

PACKING:

Ex-Works

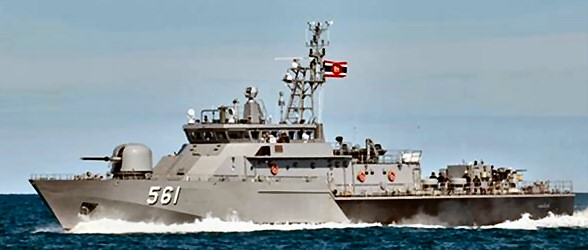

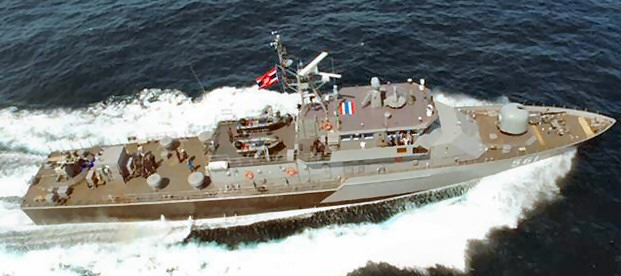

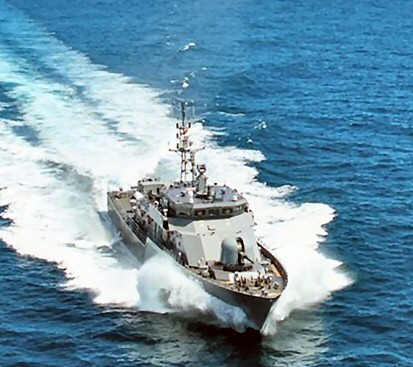

58m fast patrol Boat

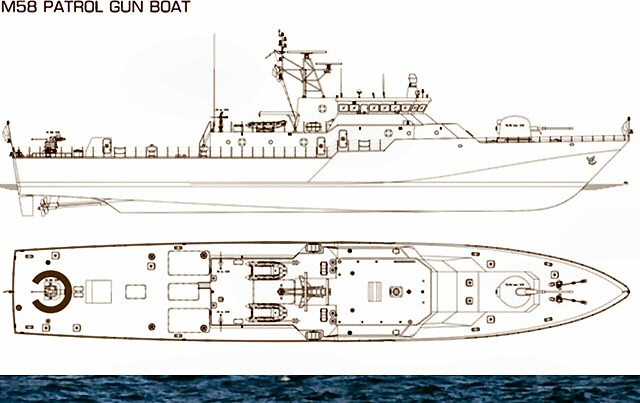

NEW BUILD - 58m Patrol Gun Boat

Length

58m (190ft 3in)

Beam

9.3m (30ft 6in)

Draft

2.5m (8.3ft)

Location

Thailand



LOA: 58m

Beam: 9.3m

Draught: 2.5m

Fuel Capacity: 86,600 litres

Fresh Water Capacity: 59,800 litres

Max Speed: 24+ knots

Range: 2500 nautical miles



Structure: Steel Hull / Aluminium Superstructure



Main Machinery

Engines: 3x 2,525 kW CAT 3516C

Propulsion: Center CPP and 2x Wing FPP



Auxiliary

MAN D2876 LE301 / Leroy Somer LSAM 47.2 M7

3x 375 kVA (300kW) 50Hz 3Ph



Complement

Crew: 53 with 1 VIP



Navigation

S-Band Radar 30kW

X-Band Radar 25kW

ECDIS

Ring Laser Gyro

GPS



Communication

HF/SSB Radio

HF/SSB Frequency Hopping

UHF AM / FM

VHF/UHF



Main Mission

Law enforcement in the sea

Prevent the infiltration in sea or on shore

Protect the commercial and fishing boats

Search and Rescue Mission

Carry out security of VIP
