GENERAL   EQUIPMENT   INC.

1) 2  Sets -  Siemens SGT 700 DLE,year:2020,10.5kv,50 Hz,Dry Low Emission - COMPLETE COMBINED CYCLE POWER PLANTS


CAPACITY of EACH PLANT : 45 MW

Hours:233

starts:19 Times

Power of each SGT700DLE:31.6mw

Gas turbine generator maker:XEMC electric

GAS turbine generator model:TFW33.66-4

Rated power of gas turbine generator:33.66mw

HRSG model:268/535.5

HRSG output steam:43.12ton/hour

HRSG steam temperature:508°C

HRSG max compresure:5.95Mpa

Year of HRSG:2021

HRSG maker:Nantong Wanda Energy&Power Technology Co.,LTD

Steam turbine maker:Dongfang Electric Machinery Co.,Ltd

Steam turbine generator:QF-15-2-10.5C

Power of steam turbine generator:12mw

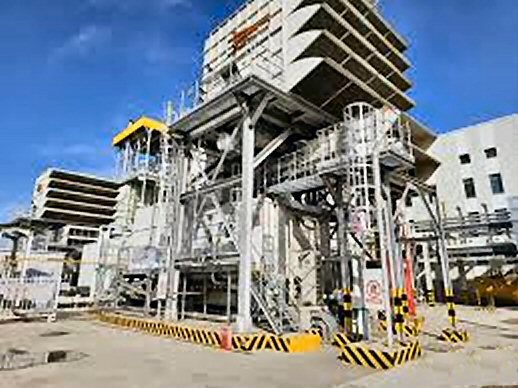

It is one  completed power plant

2) Scope of Supply Per Each Set of 45 MW Plant

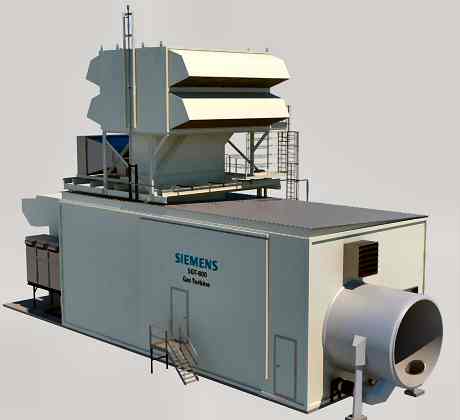

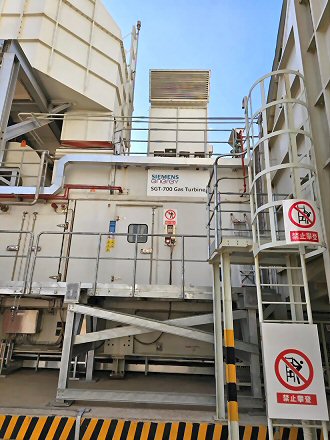

2.1 1 No Siemens SGT 700 Gas Turbine YOM 2019/2020  33.6 MW , 50 Hz

2.2 1 No Gear Box

2.3 1 No Siemens Alternator

2.4 1 No Cooler Lube

2.5 1 Set of Added Gas Treatment Plant

2.6 1 Set of Water Treatment Plant

2.7 1 Set of HRSG

2.8 1 Set of Steam Vessel

2.9 1 Set of Steam Turbine - 12 MW

2.10 1 Set of Stem Turbine Alternator

2.11 1 Set of Fire Fighting System

2.12 1 Set of Transformers

2.13 1 Set Control System

2.14 1 Set of High Voltage Cabinet

2.15 1 Set of Low Volatage Cabinet

2.16 MCC

2.17 HV Comp Art

2.18 Tube Chimney

3) Total price includes all cost and fees such as loading, as well as custom
duties and clearance, export activities, documentation.
Seller will clear Chinese Customs

4) Payment Terms :

4.1) 15% advance after inspection / Boroscope inspection
4.2) 35% Progress Payment, before start of dismantling
4.3) 15% Progress Payment, when 50% dismantling completed
4.4) 25% Progress Payment when loading completed at the Plant
4.5) 10% Final Payment when shipping documents are handed over

5) Delivery : 3 Months after down payment after inspection.

6) Inspection : Can be arranged , subject to that customer has to pay USD 12,000 Towards our Representative travel expenses .

This amount will be refunded in case of succesful transaction
