OFFER#

30MM AA GUN

TYPE:	Gun
DESCRIPTION:	30mmAnit Aircraft Gun
PRICE:	Upon Request
PACKING:	Ex-Depot

30mm anti aicraft gun

Subject Unsold or Market Withdrawal

See details at:

30 mm AA Twin Barrel Towed Cannon - basic specification.pdf

30mm PLDVK guns.

We have 55 units in stock

500,000 pcs HE ammo made in the 1970's.

Ammunition

30 mm round API-T (JPZSv) for A-A Twinn Barrel Cannon Model 53/59 Calibre: 30x211 mm

Complete Round weight 1,14 kg

length 331 mm

muzzle velocity 1000 m.s-1

range horizontal 9 700 m

range vertical 6 300 m

Projectile length 140 mm

weight 0,435 kg

bursting charge type -

bursting charge weight -

fuze -

Cartridge powder charge type Nctp 3x1,25/3,-KF

powder charge weight 0,185 kg

primer Z 1

Penetration 55 mm of armor at range 500 m

30 mm round HE-T (JFSv) for A-A Twinn Barrel Cannon Model 53/59 Calibre: 30x211 mm

Complete Round weight 1,14 kg

length 331 mm

muzzle velocity 1000 m.s-1

range horizontal 9 700 m

range vertical 6 300 m

Projectile length 150 mm

weight 0,435 kg

bursting charge type A-IX-2

bursting charge weight 0,041 kg

fuze cz 301A

Cartridge powder charge type Nctp 3x1,25/3,-KF

powder charge weight 0,185 kg

primer Z 1

Ammunition PldvK vz. 53/59

In the Czechoslovak People's Army and the successor armies after the collapse of the republic, 6 types of cartridges were introduced into the armament. The cartridges were the same for all types, diƯering only in the projectile/grenade used. The projectile/grenade is firmly connected to the cartridge case into one unit. Cartridges consist of a cartridge case, a primer screw and a bullet or grenade. The grenade is equipped with a fuze.

Main characteristics of the cartridge, also known as 30x211

Caliber 30 mm Bullet weight 435 g Hub weight 1140 g Dust Weight 185 g Cartridge length 331.4 mm Cartridge case length 211 mm

Largest cartridge diameter

48 mm

According to the regulation:

Gun-51-67: Artillery, Mortar and Special Ammunition Overview

Gun-22-17: 30mm anti-aircraft double cannon model 53/59

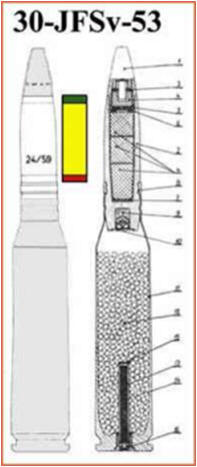

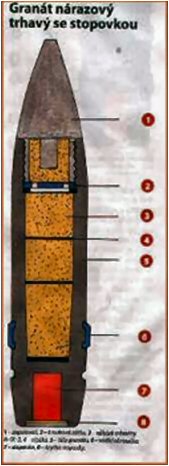

1. 30 mm impact hub with tracer

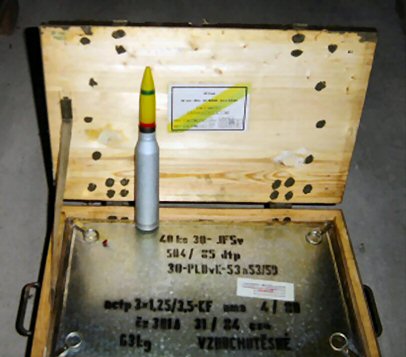

30 - JFSv - 30mm uniform fragmentation luminous

Total length of the cartridge : 331.4 mm (±0.2 mm)

Total length of the grenade : 150.4 mm

Grenade weight : 453 g

Color indication : Yellow igniter and grenade body, green stripe on the bottom of the fuze, red stripe on the body above the guiding rim. Guide frame in material color.

Template: The series and year of manufacture are stereotyped in black on the body. Note: Designed to destroy aircraft and ground unarmored targets. Duration of radiation in flight - 4 s.

2.

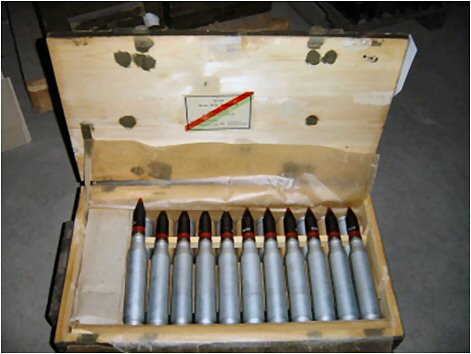

30 mm incendiary anti-armor cartridge with tracer

30 - JPZSv - 30mm uniform armor-piercing incendiary illuminated

Total length of the cartridge : 310.5 mm (± 0.2 mm )

Total length of the bullet : 122.5 mm

Weight of the bullet : 425 g

Colored ounce: Black bullet, red tip and red stripe above the guide rim.

Template: The series and year of production are stenciled in white on the body.

Note: It is designed to destroy armored targets. It contains a pointed hardened steel core. It can penetrate the sides of T-55 and T-72 tanks.

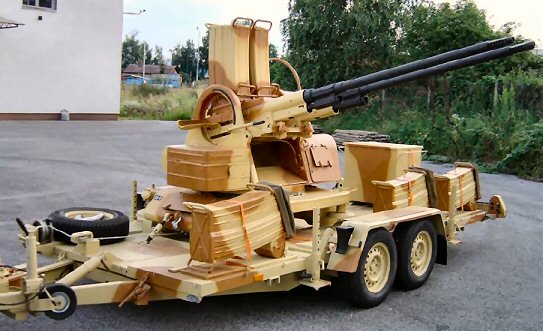

PV3S Anti-Aircraft Twin Cannon vz. 53/59
Weapon Tactical-Technical Data (TTD)

 Caliber: 30 mm
 Ammunition: 30×211 mm
 Muzzle Velocity: 1000 m/s
 Practical Rate of Fire (Twin Cannon): 150 rounds/min
 Theoretical Rate of Fire (Twin Cannon): 900 rounds/min
 Maximum Vertical Range: 6300 m
 Maximum Horizontal Range: 9700 m
 EƯective Range: 2000 m
 Length: 3835 mm
 Height: 1864 mm
 Width: 1800 mm
 Weight: 1750 kg
 Elevation Range: -10° to +85°
 Traverse Range: 360°
 Rounds per Magazine: 50 rounds
 Total Ammunition Carried: 800 rounds
 Number of Magazines Carried: 8
 Empty Magazine Weight: 32 kg
 Loaded Magazine Weight: 84.5 kg
 Weight of Single Cannon: 224.1 kg
 Barrel Weight: 78.2 kg
 Barrel Length: 2190 mm

 Total Barrel Length (including Muzzle Brake): 2363 mm
 Number of Grooves: 16
 Twist Rate: 800 mm

Main Data on the 30mm Anti-Aircraft Twin Cannon vz. 53/59M
Ballistic Data
 Initial Velocity:
o High-explosive tracer round: 1000 m/s
o Armor-piercing incendiary tracer round: 1000 m/s
 Weight of Projectile:
o High-explosive tracer round: 0.435 kg
o Armor-piercing incendiary tracer round: 0.435 kg
o Spare tracer round: 0.435 kg
 Weight of Complete Cartridge:
o High-explosive tracer round: 1.14 kg
o Armor-piercing incendiary tracer round: 1.14 kg
o Spare tracer round: 1.14 kg
 Maximum Barrel Pressure: 343.2 MPa
 Maximum Altitude Range: 6950 m
 Maximum Distance Range: 9950 m
 EƯective Ground Target Range: 2000 m
 Theoretical Rate of Fire (Twin Cannon): 800–900 rounds/min
 Combat Rate of Fire (Twin Cannon): 120–150 rounds/min

Design Specifications
 Caliber: 30 mm
 Barrel Length (with Muzzle Brake): 2357 mm
 Barrel Length (without Muzzle Brake): 2190 mm
 Rifled Barrel Length: 1985 mm
 Chamber Length: 204 mm
 Number of Grooves: 16

 Groove Twist Rate: 800 mm
 Groove Width: 3.6 mm
 Elevation Range:
o On Vehicle: -10° to +85°
o Over Cabin: -2° to +85°
o Through Observation Dome: 0° to +85°
o On Ground: -10° to +85°
 Traverse Range: 360°
 Firing Height (on Vehicle): 2100 mm
 Maximum Firing Height (on Ground): 1065 mm
 Minimum Firing Height (on Ground): 975 mm
 Weapon Length in Transport Position: 6930 mm
 Weapon Length in Combat Position (on Ground): 3835 mm
 Max Height on Vehicle (Zero Elevation, with Magazines): 3000 mm
 Max Height on Vehicle (Zero Elevation, without Magazines): 2525 mm
 Max Height at Highest Elevation: 4790 mm
 Max Height (on Ground, Zero Elevation, with Magazines): 1864 mm
 Max Height (on Ground, Maximum Elevation): 3525 mm
 Max Width (with Vehicle): 2370 mm
 Max Width (without Vehicle): 1800 mm
 Total Weight (Fully Loaded Vehicle with Crew and Accessories): 10,300 kg
 Weapon Weight (without Vehicle): 1750 kg
 Ammunition Feeding: Magazine-fed
 Total Carried Ammunition: 800 rounds
o In Magazines: 400 rounds
o In Ammunition Crates: 400 rounds
 Total Magazines Carried: 8
 Total Ammunition Crates Carried: 10
 Rounds per Magazine: 50 rounds
 Ejection Distance of Spent Cartridges: Approx. 5–15 m (depending on firing rate and
elevation)

 Empty Magazine Weight: 27.5 kg
 Loaded Magazine Weight: 84.5 kg
 Weight of Single Cannon (without Magazine): 225 kg
 Barrel Weight (with Muzzle Brake): 78.2 kg

Operational Specifications
 Crew: 1+4
 Power Supply: 2x 12V batteries
 Battery Charging:
o While driving: Auxiliary 500W/24V generator
o At firing position: NS 1250 A charging unit

Specification and photos are not contractual and are subject to verification upon inspection
